| Category |
Details |
LX-SG1004W |
LX-SG1004-POE |
| Hardware Information |
Product Model |
LX-SG1004W |
LX-SG1004-POE |
|
Fixed Ports |
4 x 10/100/1000Base-T electrical ports (Data/Power) |
4 x 10/100/1000Base-T POE ports (Data/Power) |
|
POE Ports |
- |
Ports 1-4 support IEEE 802.3af/at standard PoE power supply |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x |
|
|
Power Supply Standards |
Compliant with IEEE802.3af/at international standard |
|
|
Port Characteristics |
10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-adaptation |
|
|
Forwarding Mode |
Store-and-forward (full wire-speed) |
|
|
Backplane Bandwidth |
20Gbps (unobstructed) |
|
|
Packet Forwarding Rate@64byte |
9.42Mpps |
|
|
MAC Address Table |
4K |
|
|
Power Supply Pin |
- |
Supports 1/2(+), 3/6(-), 4-core power supply |
|
Max Port/Average Power |
(DC5-52V) |
15.4W-30W (DC48-52V) |
|
Whole Machine Power Consumption |
Standby power consumption: < 3W; Full-load power consumption: < 8W |
Standby power consumption: < 10W; Full-load power consumption: < 120W |
|
LED Indicators |
Power indicator: PWR(green); Network indicator: Link,Link/Act (yellow); POE indicator: PoE (green) |
|
|
Appearance Dimensions (L×W×H) |
76×85×16mm |
|
|
Net Weight/Gross Weight |
< 17g / < 20g |
< 20g / < 23g |
| Software Information |
Port Configuration |
Port mode; Port list; Bandwidth control; Port mirroring; Loop detection |
|
|
VLAN Management |
VLAN port; VLAN list |
|
|
Link Aggregation |
Port aggregation |
|
|
DHCP Filtering |
DHCP filtering; IGMP |
|
|
System Tools |
User management; Network configuration; Firmware upgrade; Configuration management; Device restart |
|
| Working Environment |
Working Humidity |
10%-90%RH (non-condensing) |
10%-90%RH (non-condensing) |
|
Working Temperature |
-40°C - 85°C |
-40°C - 85°C |
|
Storage Humidity |
10%-90%RH (non-condensing) |
10%-90%RH (non-condensing) |
|
Storage Temperature |
-40°C - 85°C |

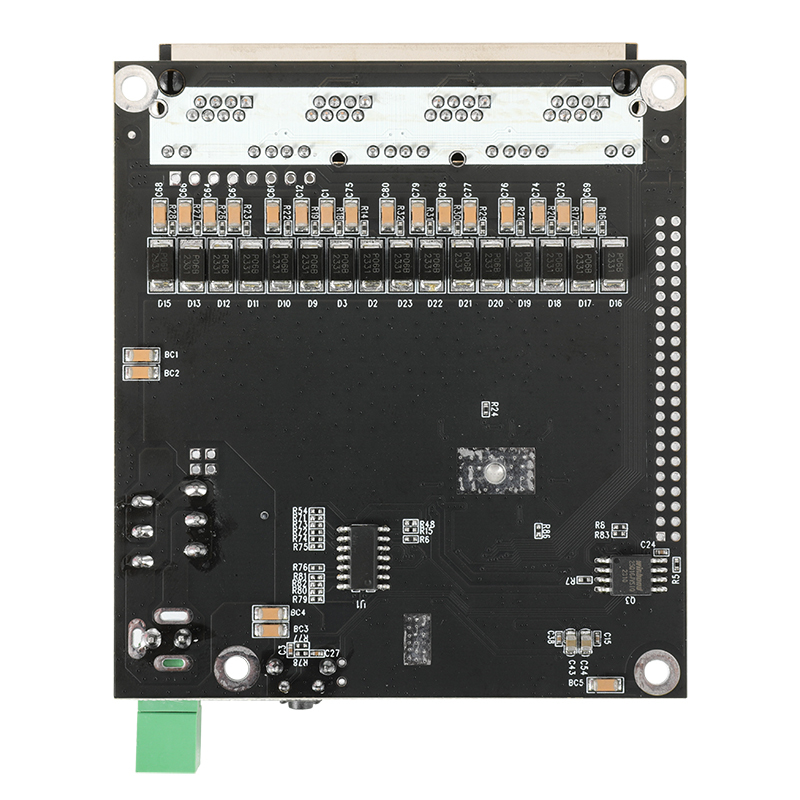

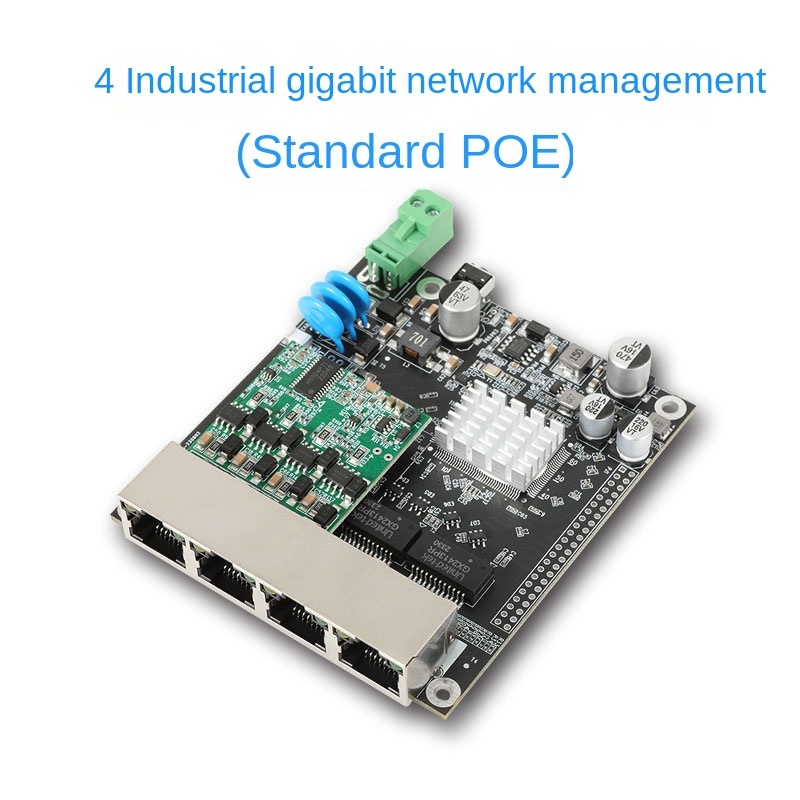

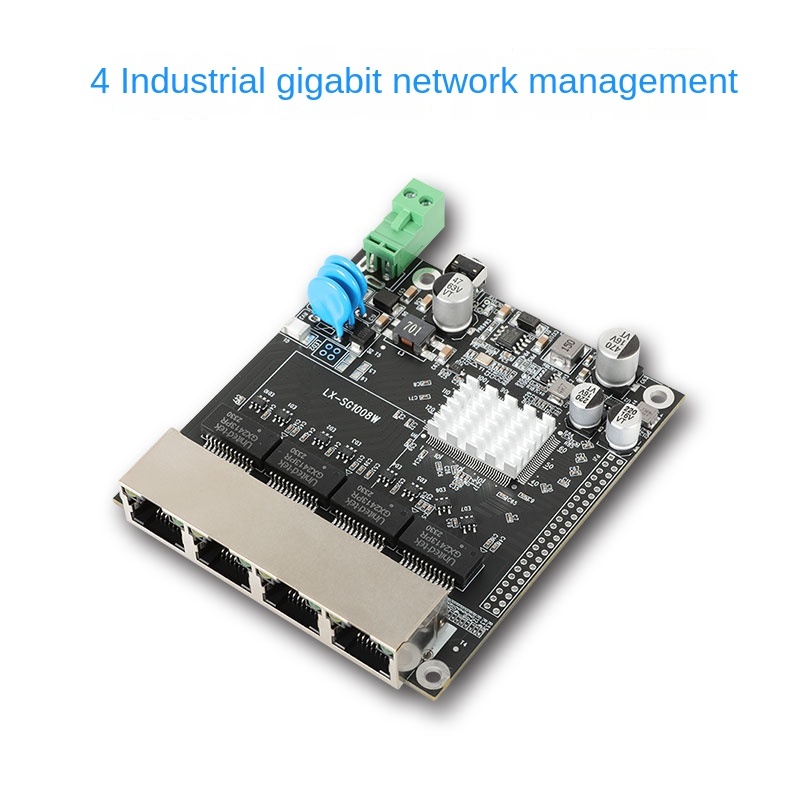

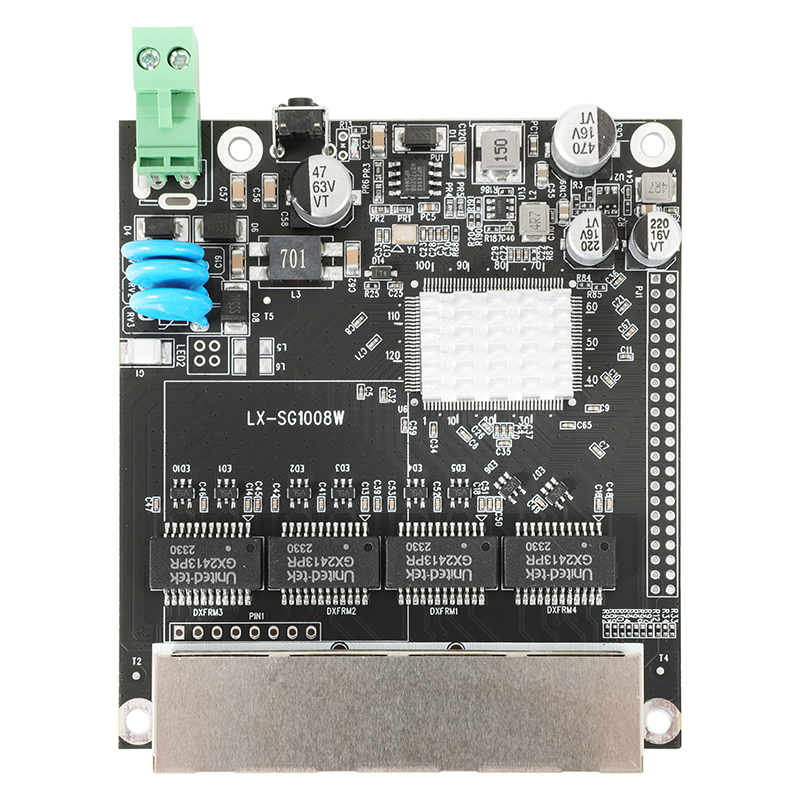

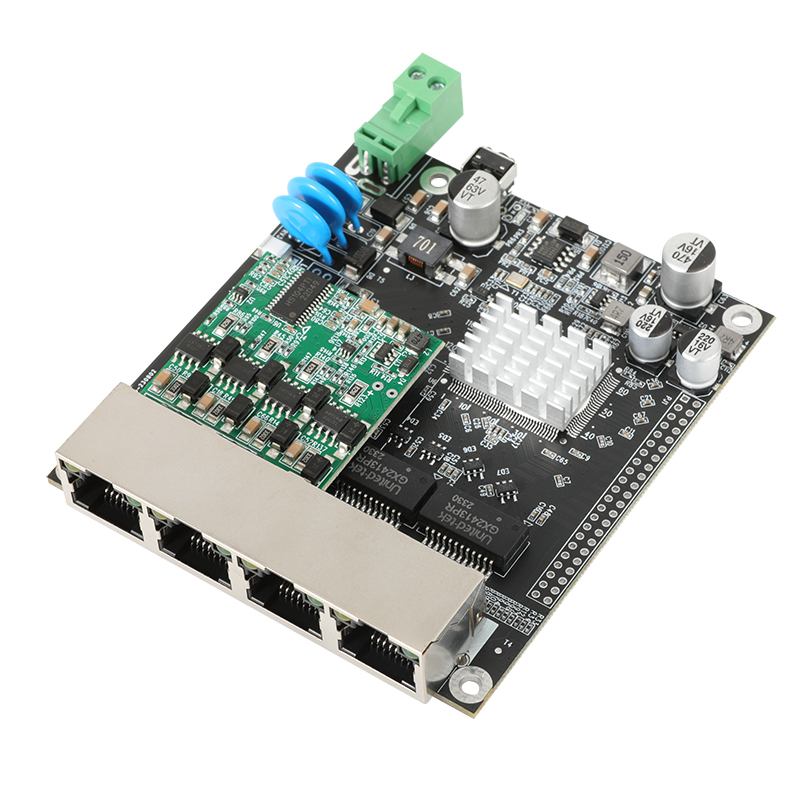

LX-SG1004W Industrial Managed Switch Module | Intelligent PoE Power Supply and Gigabit Performance for Industrial Network Upgrades
The LX-SG1004W is a high-performance managed Gigabit PoE switch module designed for industrial environments. It integrates 4 adaptive Gigabit RJ45 ports, fully supporting IEEE 802.3af/at standard PoE power supply. Each port can deliver up to 30W of power, with a total PoE budget of 120W, enabling flexible power supply for devices such as IP cameras, wireless APs, and industrial sensors, while simplifying cabling costs.
Key Features Highlights:
- Intelligent Network Management: Offers multi-mode management interfaces including WEB/SNMP/CLI, supporting VLAN isolation, port aggregation (LACP), QoS traffic control, DHCP filtering, and dynamic ARP inspection, enabling refined traffic scheduling and security protection.
- Industrial-Grade Reliability: Features a fanless sealed design, operating temperature range from -40°C to 75°C, IP40 protection rating, anti-electromagnetic interference (EMI) capability, and 6000V lightning protection, making it suitable for harsh environments such as power utilities, transportation, and factories.
- Redundancy and Security: Supports STP/RSTP/ERPS ring network protocols (<20ms fault recovery), coupled with dual power redundant input (24-48V DC), ensuring uninterrupted network operations.
- Flexible Networking: Supports static routing, inter-VLAN routing, and port mirroring, capable of constructing star, ring, or chain topologies to meet the needs of smart factories, smart cities, rail transit, and other scenarios.
Technical Specifications at a Glance:
- Switching Capacity: 12Gbps (non-blocking architecture)
- Latency: <10μs (low-latency design)
- Certifications: CE/FCC/RoHS/IEC 61850-3
- Installation: DIN rail/wall mount dual-mode
Applications:
- Industrial Automation: Connects PLCs, HMIs, and robot controllers to build real-time industrial Ethernet networks.
- Security Surveillance: Powers and transmits data for HD network cameras, supporting stable large-scale video stream transmission.
- Smart Transportation: Deployed in electronic police systems and ETC systems to ensure highly reliable data communication.
The LX-SG1004W, with its high efficiency, ease of management, and robust stability, serves as an ideal network hub for enterprises to build secure and controllable industrial IoT infrastructure, accelerating digital transformation.
