| Product Model |
LX-SG402 |
LX-SG402-POE |
| Fixed Ports |
2 x 10/100/1000Base-T POE ports (Data/Power)
2 x 10/100/1000Base-T uplink ports (Data) |
|
| POE Ports |
- |
3-4 ports support IEEE802.3af/at standard PoE power supply |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x |
|
| Power Supply Standard |
Complies with IEEE802.3af/at international standard |
|
| Port Characteristics |
10/100/1000Base-T Auto-Negotiation, Full/Half Duplex, MDI/MDI-X Auto Adaptation |
|
| Forwarding Mode |
Store-and-Forward (Full Wire Speed) |
|
| Backplane Bandwidth |
10Gbps (Non-Blocking) |
|
| Packet Forwarding Rate @64byte |
9.42Mpps |
|
| MAC Address Table |
4K |
|
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-T: Cat5e or later UTP (≤100 meter) |
|
| Power Supply Connector |
Supports 1/2(+), 3/6(-) 4-core power supply |
|
| Maximum Single Port/Average Power |
(DC5-52V) |
15.4W-30W (DC48-52V) |
| Whole Machine Power Consumption |
Standby Power: <3W; Full Load Power: <8W |
Standby Power: <10W; Full Load Power: <240W |
| LED Indicators |
Power Indicator: PWR(green); Network Indicator: Link,Link/Act (yellow); POE Indicator: PoE (green) |
|
| Dimensions (L×W×H) |
52×80×16mm |
|
| Net/Gross Weight |
<42g / <45g |
<48g / <51g |
Working Environment
|
|
|
| Working Humidity |
10%-90%RH (Non-Condensing) |
10%-90%RH (Non-Condensing) |
| Working Temperature |
-30°C-60°C |
-30°C-60°C |
| Storage Humidity |
10%-90%RH (Non-Condensing) |
10%-90%RH (Non-Condensing) |
| Storage Temperature |
-40°C-85°C |
-40°C-85°C |

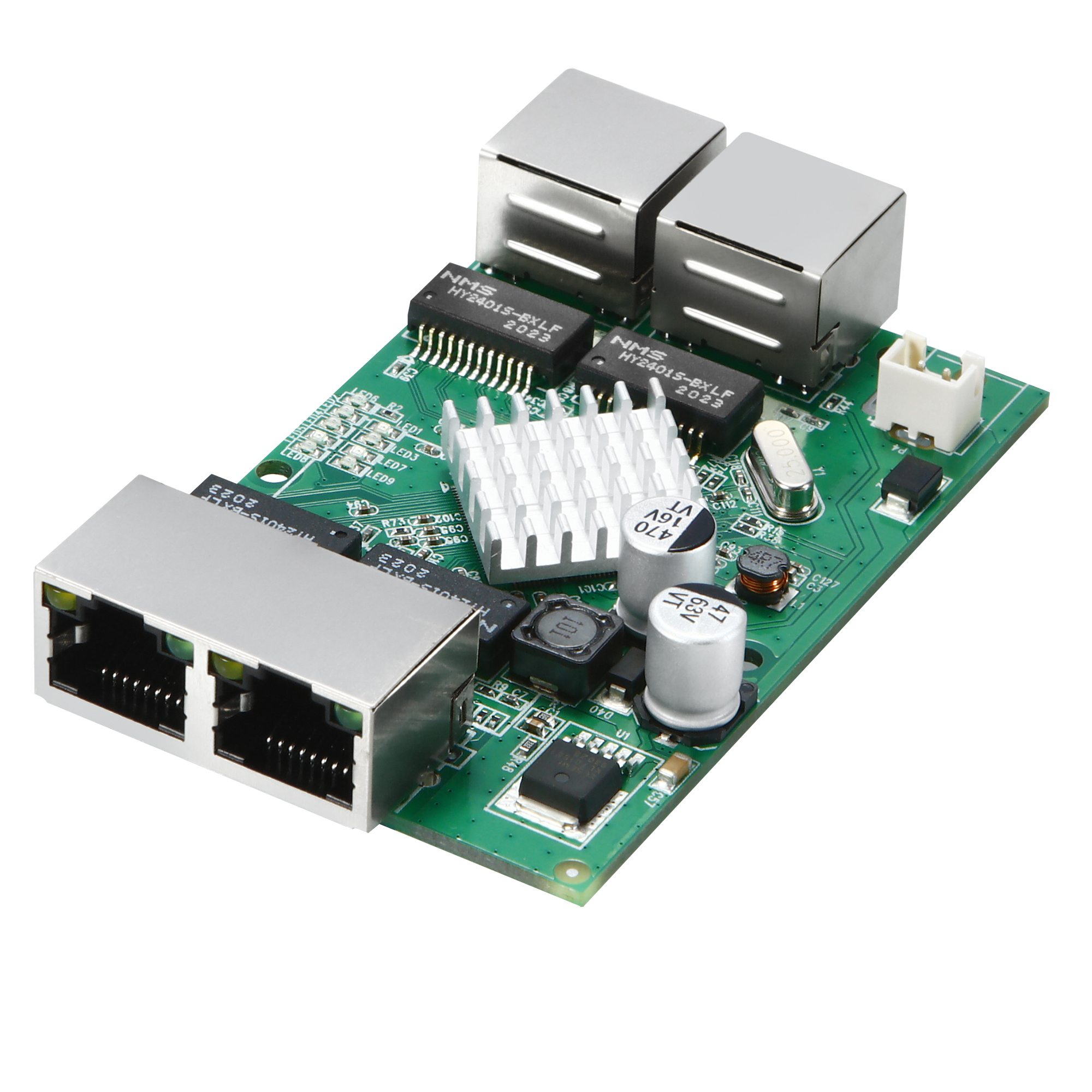

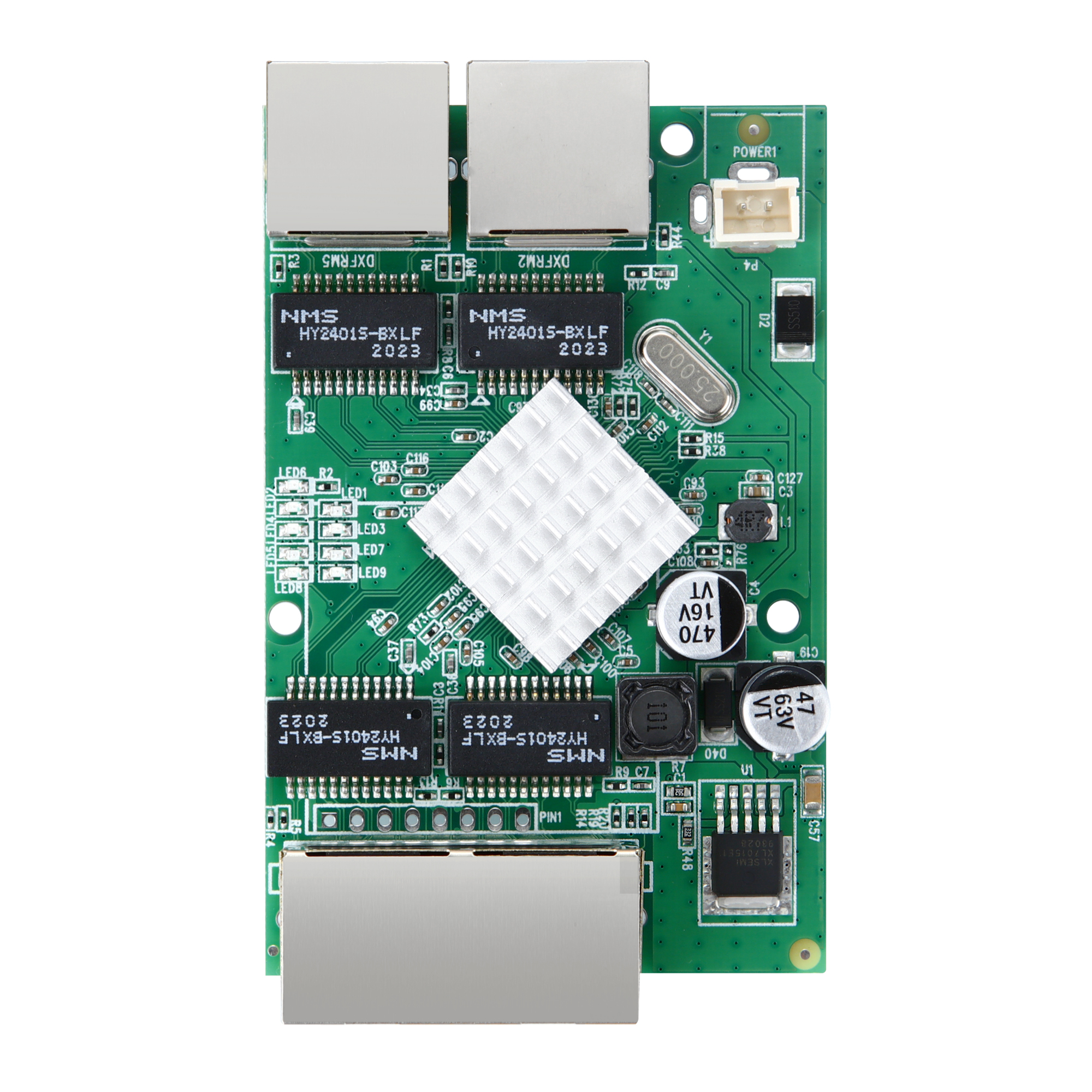

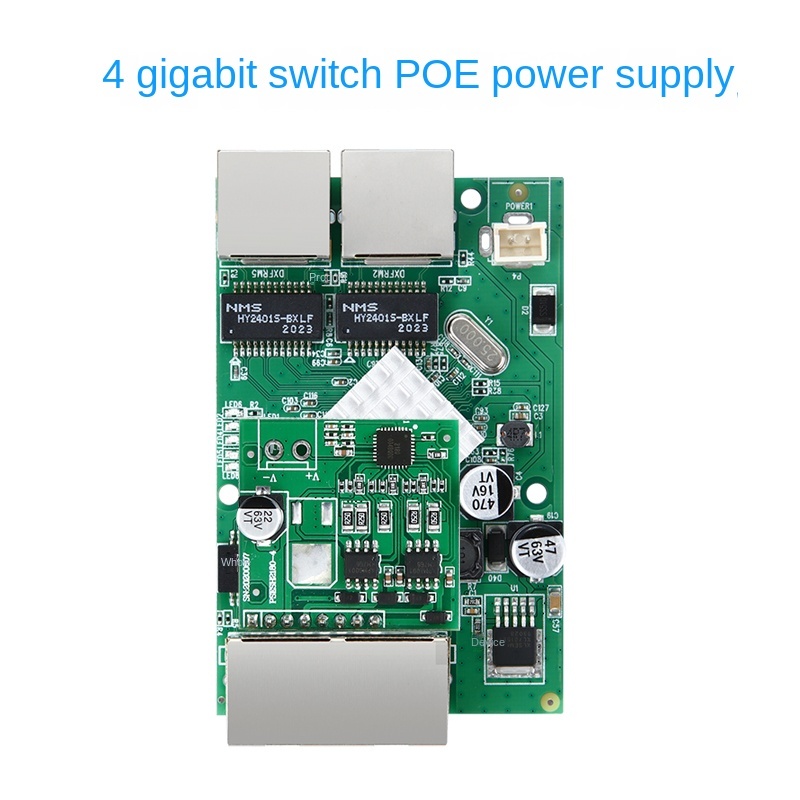

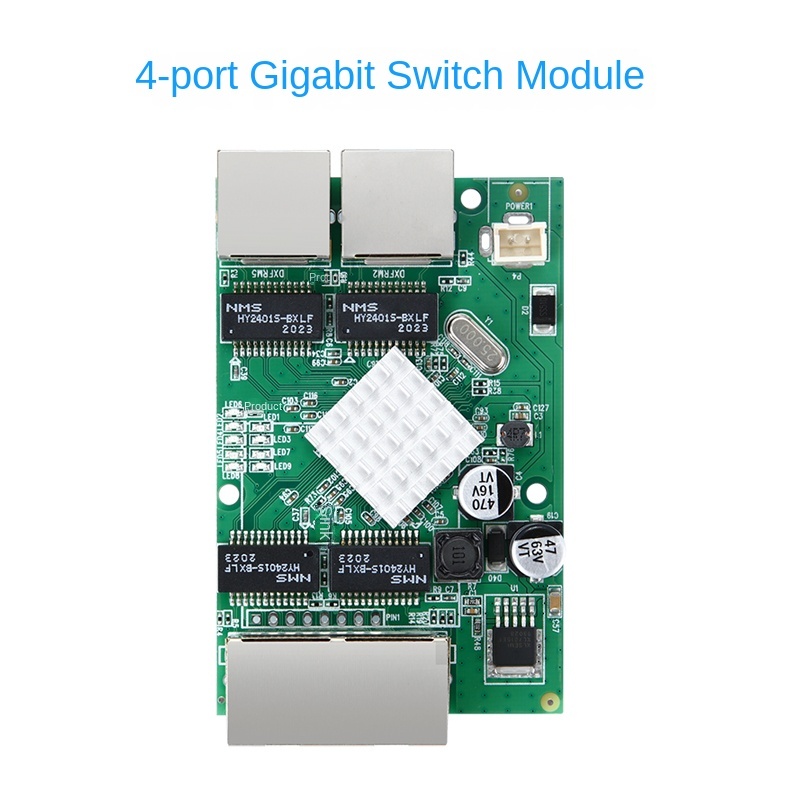

LX-SG402 4-port Gigabit PoE Switch Module - An Intelligent Power over Ethernet Solution
The LX-SG402 is an unmanaged full Gigabit PoE switch module specifically designed for efficient network deployment. It offers 2 full Gigabit auto-negotiation electrical ports and 2 Gigabit auto-negotiation ports, supporting dual-standard PoE power supply in accordance with IEEE 802.3af/at. Its core advantages lie in its high transmission speed and flexible power supply capabilities, meeting the diverse needs of applications in security monitoring, intelligent buildings, corporate offices, and more.
Technical Specifications and Key Features
- Full Gigabit Transmission: The 2 electrical ports support 10/100/1000M auto-negotiation speeds, ensuring zero-delay data transmission, suitable for high-bandwidth scenarios such as high-definition video streaming and large file transfers.
- Comprehensive PoE Power Supply: Ports 3-4 support a high-power output of 30W per port (compatible with af/at standards), providing stable power to devices such as wireless APs, network cameras, IP phones, and intelligent building intercoms, reducing the cost of additional power cabling.
- Intelligent Power Management: Automatically detects and identifies standard-compliant powered devices, enabling "one-cable-for-all" (data + power) functionality via network cables, simplifying the deployment process.
Applicable Scenarios and User Benefits
- Security Monitoring: Powers multiple network cameras, ensuring 24/7 high-definition surveillance stability.
- Intelligent Buildings: Supports devices such as visual intercoms and access control systems, enhancing building automation.
- Corporate Networks: Facilitates rapid deployment of wireless APs and IP phones, optimizing office efficiency.
Key Advantages
- Plug-and-Play: Eliminates the need for complex configurations, reducing operational difficulties.
- Strong Compatibility: Adapts to mainstream PoE terminal devices, offering high scalability.
- Energy-Efficient and Safe: Features intelligent overload protection and temperature control, extending device lifespan.
Summary
With its high cost-effectiveness, stable power supply, and flexible deployment, the LX-SG402 is the ideal choice for small-to-medium-sized networks, security projects, and intelligent buildings. For further product details or customized solutions, please feel free to contact our professional team for technical support.
