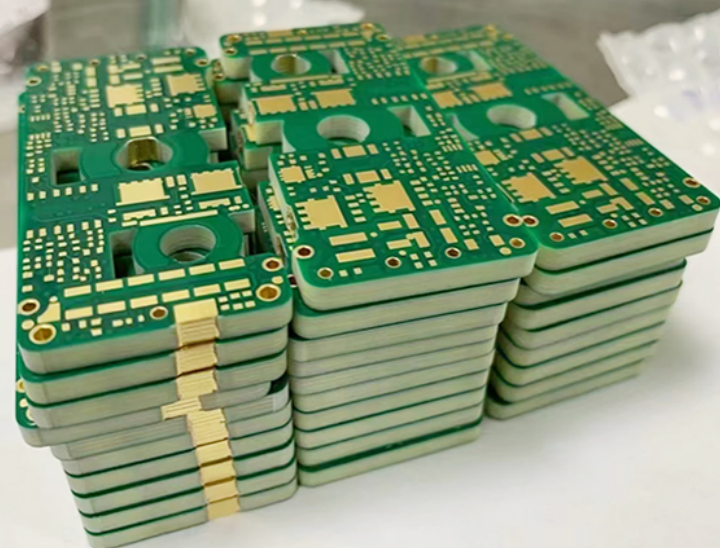

Multilayer Board(High-Layer Count PCBs)

High-Layer Count PCBs: Technical Analysis and Applications of High-Density Multilayer Circuit Boards

Definition & Core Value

High-Layer Count PCBs (High-Multilayer PCBs) refer to precision printed circuit boards with a layer count of ≥12 layers, achieving ultra-high-density interconnection through Microvia & Buried Vias technology. They meet the stringent requirements of modern electronic devices for signal integrity, power consumption control, and space compression.

 The theoretical limit for layer count is up to 100 layers (Zhongjing Electronics, 2022), but mainstream applications focus on 12-40 layers, with typical thickness ranges of 0.6–8.0mm, supporting complex topologies such as Any-layer HDI and Stepped Slots designs.

Core Application Scenarios

• High-End Computing & Communications:
  File servers, data center switches, and 5G base stations require processing of TB-level data streams. High-Multilayer PCBs ensure high-speed signal transmission (PCIe 6.0) with a 15:1 aspect ratio and ±10% impedance tolerance, while enhancing thermal dissipation through resin plugging.

• Aerospace & Medical:
  Satellite navigation (GPS), meteorological radars, and medical imaging devices rely on their interference resistance capabilities, employing ultra-low loss substrates (e.g., Megtron6/TU-862HF) paired with back-drilling technology to eliminate signal resonances (TPA3116D2 Design Guide, 2024).

• Automotive Electronics & AI Hardware:
  Autonomous driving controllers need to withstand temperature variations from -55℃ to 150℃. High Tg materials (Tg≥180℃) such as TU-752/TU-75P, combined with FRP reinforced structures, ensure mechanical stability and support multi-layer embedded passives to reduce EMI risks.

Key Performance Indicators

• Routing Density: Minimum line width/spacing of 2/2 mils (0.05mm), supporting BGA pitches ≤0.4mm.
• Thermal Reliability: Passes PCT (Pressure Cooker Test) with 288℃/10-second cycles and CAF (Conductive Anodic Filament) resistance certification (100V/85℃/85%RH).
• Manufacturing Process: Sequential lamination technology achieves a Z-axis expansion rate of ≤2.7% for 40-layer boards (compared to 4.5% for ordinary FR-4), reducing the risk of hole copper cracking (Union Tech, Taiwan, 2025).

Material & Process Innovations

• Substrate Evolution: Mid-loss materials like Isola FR408HR/IT180A balance cost and performance, while hybrid laminate structures (e.g., aluminum substrate + FR-4) optimize thermal management.
• Surface Treatment: ENEPIG (Electroless Nickel Electroless Palladium Gold) provides a 0.1–0.3μm silver layer, adapting to high-frequency welding needs (IPCB Specification, 2025).

• High-Layer Count PCBs Technics Capacity
  No.	Item	Description	DataSheet
  1	Layer	Layer	1-98
  2	Material	Brand	SY, ITEQ, KB, NanYa, Doosan, Isola, TUC, EMC, Ventec
  3	Surface treatment		HASL lead-free,Immersion Gold, OSP, Immersion Tin, Immersion Silver, Plating Gold, Plating Tin, ENEPIG
  4	Selectivity surface treatment		ENIG+OSP, ENIG+G/F, Flash Gold+G/F, Immersion Silver+G/F, Immersion Tin+G/F
  5	Solder mask color		Green, Yellow, Black, Matte black, Blue, Red, White,Matte green
  6	Silkscreen color		White, Yellow, Black
  7	Max board size with 2L	mm	2500*1800mm
  8	Max board size with 4L,6L	mm	1200*1000mm(Exceeding 570mm shall be reviewed)
  9	Max board size with more than 8L	mm	1200*1000mm(Exceeding 570mm shall be reviewed)
  10	Min board size	mm	0.5*1.0mm(thickness≤0.5mm), 1.0*2.0mm(thickness≥0.5mm)
  11	Min outline tolerance	mm	±0.05mm(Laser Routing), ±0.1mm(Mechanical Routing)
  12	PCB Board Thickness	mm	0.13-8mm
  13	Double side board thickness	mm	0.13-3.6mm
  14	4Layers board thickness	mm	0.30-7mm
  15	6Layers board thickness	mm	0.6-8mm(6L), 0.8-8mm(8L), 1.0-8mm(10L), 1.0-8mm(12L)
  16	The tolerance of board thickness	mm	±0.1mm(thickness≤1.0mm), ± 10%mm(thickness>1.0mm)
  17	Min Drilling hole size	mm	0.075-0.1mm(Laser), 0. 15mm(Mechanical)
  18	Single Max Drilling	ww	6.5mm(Drill Bit)
  19	Max Drilling	ww	50mm
  20	Min PTH tolerance	mm	±0.05mm, ±0.075mm
  21	Min NPTH tolerance	mm	±0.05mm(Limitation+0, -0.05mm or +0.05, -0mm)
  22	Min hole tolerance	ww	±0.075mm
  23	Max Drilling tolerance	ww	±0.1mm
  24	Slot hole	mm	0.5-6mm
  25	Min slot hole length	mm	1.0mm
  26	Slot hole aspect ratio	mm	1:2
  27	Min slot hole tolerance	mm	Slot width, ±0.15mm
  28	Min slot hole tolerance	mm	Slot width directiont0.10, slot length direction±0.15
  29	Countersink hole angle &size		Big hole82, 90, 120degree, dia≤10mm
  30	Countersink hole angle & size		PTH&NPTH, Big hole angle 130degree, The dia of the large hole is not greater than 6.3mm
  31	Min pattern width/spacing	mm	0.075mm/0.075mm
  32	Pattern width tolerance	mm	±20um
  33	Min pad	mm	0.15mm
  34	FR-4 PP		106, 1080, 3313, 2116, 7628
  35	Mult press blind buried hole production		Press on the same sides5
  36	Max bore diameter of pad hole plug hole	mm	0.4 Multi press blind & buried hole board
  37	Min thickness of inner	mm	0.05(none blind buried hole), 0. 13(blind buried hole)
  38	Min inner	mil	3(18um base copper), 4(35um base copper), ≥3mil
  39	Inner layer treatment		Brown Oxygen
  40	Min inner pattern spacing (105um base copper, after compensation)	mil	5
  41	Min inner layer pattern spacing (140um base copper, after compensation)	mil	7
  42	Min innner layer pattern spacing (18um base copper, after compensation)	mil	3
  43	Min inner layer pattern spacing (35um base copper, after compensation)	mil	3.5
  44	Min inner layer pattern spacing (70um base copper, after compensation)	mil	4
  45	Min inner layer pattern width (105um base copper, before compensation)	mil	5
  46	Min inner layer pattern width (140um base copper, before compensation)	mil	7
  47	Min inner layer pattern width (18um base copper, before compensation)	mil	3
  48	Min inner layer pattern width (35um base copper, before compensation)	mil	3
  49	Min inner layer pattern width (70um base copper, before compensation)	mil	4
  50	Min outer layer pattern spacing (105um base copper, after compensation)	mil	6
  51	Min outer layer pattern spacing ( 12, 18um base copper, after compensation)	mil	3.0(18um), 2.5(12um)
  52	Min outer layer pattern spacing (140um base copper, after compensation)	mil	7
  53	Min outer layer pattern spacing (35um base copper, after compensation)	mil	3.5
  54	Min outer layer pattern spacing (70um base copper, after compensation)	mil	5
  55	Min outer layer pattern width (105um base copper, before compensation)	mil	8
  56	Min outer layer pattern width ( 12, 18um base copper, before compensation)	mil	3.5(18um), 3(12um)
  57	Min outer layer pattern width (140um base copper, before compensation)	mil	9
  58	Min outer layer pattern width (35um base copper, before compensation)	mil	4.5
  59	Min outer layer pattern width (70um base copper, before compensation)	mil	6
  60	Min.spacing from pattern to pad, pad to pad for outer layer(after compensation)	mil	3(12, 18um), 3.5(35um), 5(70um), 6(105, 140um)
  61	Min.outer pattern and spacing with blind/buried holes plated many times(>=2times)	mil	3.5/3.5 (before compensation)
  62	Min distance from inner layer edge without copper leakage	mil	10
  63	Min inner layer isolation width	mil	8
  64	Min inner layer isolation ring	mil	8(≤6layer), 10(≥8layer)
  65	Min single side width of inner pad (none blind buried hole)	mil	4.5(18, 35um, Can be partial 4), 6(70um), 8(105um)
  66	Min single side width of inner pad (laser hole)	mil	3
  67	Impedance tolerance	%	±5Ω(＜50Ω), ± 10%(≥50Ω); ≥50Ω±5%(need to evaluate when it requests),
  68	Min BGA pad diameter	mil	7mil
  69	Min pad diameter	mil	12(0.10mmMechanical or laser drilling)
  70	Min hole copper thinckness (none blind buried hole)	um	average 25, min single point≥20
  71	Min hole copper thinckness (blind buried hole)	um	averager 20, min single point≥18
  72	PP thickness(min)	um	0.075(only H oz base copper)
  73	ENIG: gold thickness	um	0.025-0.10
  74	ENIG: nickle thickness	um	3-5
  75	Immersion silver.silver thickness	um	0.1-0.3
  76	Min HASL LeadFree/pure tin thickness	um	0.4
  77	Gold Finger:gold thickness	um	0.25-1.3(The required value is the thinnest point)
  78	Gold Finger:nickle thickness	um	3-5
  79	Flash Gold:gold thickness	um	0.025-0.10
  80	Golden finger chamfer Angle tolerance		±5
  81	Golden finger chamfering margin tolerance	mil	±5
  82	Min gold finger length	inch	2
  83	Min distance between gold fingers	mil	6
  84	Gold finger next to the TAB does not hurt the min distance	mm	7(Means automatic chamfering)
  85	Long and short gold finger		Can be combined with various surface treatments
  86	Surface treatment for long and short goldfinger		Immersion gold;Flash gold
  87	Immersion tin:Tin thickness	um	0.8-1.5
  88	Electroplate hard gold thick	um	0.15-1.3
  89	Flash Gold: nickle thickness	um	3-5
  90	Max borad thickness of mechanical drilling 0.10mm	mm	0.60
  91	Max borad thickness of mechanical drilling 0.15mm	ww	1.20
  92	Max borad thickness of router bit 0.25mm	mm	5
  93	Bow and twist capability limit	%	0.1(need to evaluate when it requests ≤0.3)
  94	Max Dry film sealing slot		5mm*3.0mm;More than one side of sealing hole15mil
  95	Min unilateral width of dry film sealing hole	mil	10
  96	Max diameter of dry film sealing hole	mm	4.5
  97	Min width of solder mask opening	mil	8
  98	Min solder mask thickness	um	10
  99	Min S/M bridge width	mil	3(green), 5(other color)(base copper≤10Z)(base coppe2-40Z, All in accordance with the 6mil)
  100	Min unilateralI width of solder mask	mil	2.5(Allow local2mil)
  101	Min solder mask opening (sing side)	mil	2(Flash gold local 1.5, other allow local 1)
  102	Max diameter of ink plug hole(both side)	mm	0.65
  103	Thickness of solder mask ink through hole cover	um	5/8
  104	V-CUT Angle specifications		20。, 30。, 45。, 60。
  105	V-CUT(1.0	mm	0.36(20。), 0.4(30。), 0.5(45。), 0.6(60。)
  106	V-CUT(1.6	mm	0.42(20。), 0.51(30。), 0.64(45。), 0.8(60。)
  107	V-CUT(2.5≤H≤3.0mm)	mm	0.47(20。), 0.59(30。), 0.77(45。), 0.97(60。)
  108	V-CUT(H≤1.0mm)	mm	0.3(20。), 0.33(30。), 0.37(45。), 0.42(60。)
  109	V-CUT Symmetry tolerance	mil	±4
  110	V-CUT Angle tolerance	0	±5
  111	V-CUT Residue thickness	mil	±4
  112	Blue glue white mesh plug hole max diameter	mm	2
  113	Min single side of blue cover pattern or pad	mil	2
  114	Max diameter of blue plastic aluminum plug hole	mm	4.5
  115	Min isolation between blue glue and pad	mil	12
  116	Min single side carbon cap pattern	mil	2
  117	Min isolation between carbon and pad	mil	8
  118	Min isolation between carbon and carbon	mil	12
  119	Min gridding spacing	mil	5( 12, 18, 35um), 8(70um)
  120	Min gridding width	mil	5( 12, 18, 35um), 10(70um)
  121	Min silk width and height ( 12, 18um base copper)		width 4mil, height:23mil
  122	Min silk width and height (35um base copper)		width 5mil, height:30mil
  123	Min silk width and height (70um base copper)		width 6mil, height:45mil
  124	Min isolation of silk and pad	mil	6
  125	Min test on resistance	Ω	10
  126	Min distance from test point to edge	mm	0.5
  127	Max test current	mA	200
  128	Max test voltage	V	250
  129	WNH	mil	3.9
  130	Min test pad	mil	3.9
  131	Min etch logo width	mil	8(12, 18um), 10(35um), 12(70um)
  132	Outline tolerance(edge to edge)	mil	±4(Complex outlin and inner grooves with this requirement shall be reviewed)
  133	Min inner angular radius	mm	0.4
  134	Depth control slot hole ( edge) or Blind slot precision(NPTH)	mm	±0.10
  135	Special tolerance requirements for board         thickness (No interlayer structure	mm	≤2.0±0.1, 2.0-3.0±0.15, ≥3.0±0.2
  136	i          t) Max ratio of plate thickness to hole		20:1(not inclue≤0.2mm diameter, more than 12:1 shall be reviewed))
  137	Min hole diameter	mm	0.45
  138	Outline method		Routing,V-CUT,Stamp-hole
  139	Min router bit diameter of outline	mm	0.6
  140	Min. distance from hole to trace (Not blind/buried holes)	mil	6(≤8layers), 8(≤14layers), 9(≤28layers)
  141	Min.distance from hole to trace (blind/buried holes)	mil	9(Press one time);10(press two times or three times)
  142	Min distance from hole to trace (Laser drill, 1 or 2-step)	mil	6
  143	Min single-sided width for via hole pad of outer layer	mil	4( 12, 18um)3.5, 4.5(35um), 6(70um), 8(105um), 10(140um)
  144	Min.distance without copper exposure when outline routing	mil	8
  145	Maximum insulation resistance(for test)	MΩ	100
  146	Hole resistance test board thickness limit	mm	0.38-5.0
  147	Hole resistance test aperture limit	mm	min:0.62mm, max0.25mm
  148	ionic soil	ug/cm2	≤1
  149	Copper stripping strength	N/cm	7.8
  150	Resistance weld hardness	H	6
  151	Resistance		94V-0
  152	RCC material	um	copper foil:12,resin:65, 100um(complete55, 90um)
  153	Thkickness of blue glue	mm	0.2-0.5
  154	Min carbon pattern width	mm	0.5mm
  155	Copper thickness	OZ	Inner Layer 1OZ（35μm)-3OZ（105μm）\  Top Layer 1OZ（35μm)-12OZ（420μm）

•

• 📌 Core Production Process Flow for PCB Multilayer Boards

  Panel Cutting & Pre-treatment

  • Objective: Cut large-sized copper-clad laminates (e.g., FR4 material) into production specifications (e.g., 570×850mm) and perform edge grinding to prevent burrs.
  • Key Operations: Automatic panel cutting machine, cleaning of substrate to remove oil stains and dust (to avoid subsequent short circuits).

  Inner Layer Circuit Formation

  • Objective: Form inner layer circuit patterns.
  • Process:
    • Lamination & Exposure: Apply photosensitive dry film to copper foil surface → cover with inner layer circuit film (negative) → UV exposure (wavelength 365nm) to cure the designed pattern.
    • Development & Etching: Dissolve unexposed areas with alkaline solution → etch excess copper foil with acidic copper chloride → strip the protective film (using NaOH solution).
    • Inspection: AOI (Automated Optical Inspection) scans for defects (open/short circuits, accuracy ≤10μm).

  Brown Oxide Treatment

  • Objective: Increase copper surface roughness to enhance bonding with resin and prevent "delamination" during high-temperature lamination.
  • Parameters: Micro-etch copper surface (temperature 60-80℃, time 3-5min) to form a passivation layer.

  Lamination (Pressing)

  • Objective: Integrate inner layer boards, prepregs (PP), and outer layer copper foils into a single unit.
  • Steps:
    • Stack-up Structure: Copper foil + PP sheets + inner layer core boards (stacked in designed order).
    • Vacuum Hot Pressing: Melt epoxy resin under high temperature (180-200℃) and high pressure (300-400PSI) for bonding, then cool and set.

  Drilling & Plating Through Holes

  • Drilling: Use CNC drill to create holes (hole diameter 0.075-6.5mm), including through-holes and blind/buried vias.
  • Plating Through Holes (Key Interconnection Step):
    • Desmearing: Plasma clean hole walls to increase roughness.
    • Chemical Copper Deposition: Deposit a 0.3-0.5μm copper layer as a conductive base.
    • Panel Plating: Electroplate to thicken hole copper to 20-25μm (to ensure interlayer conduction).

  Outer Layer Circuit Formation

  • Pattern Transfer: Apply positive photosensitive film → LDI (Laser Direct Imaging) exposure → develop to expose circuit areas.
  • Pattern Plating & Etching: Electroplate copper/tin to protect circuits → alkaline etch to remove excess copper foil → strip tin.

  Solder Mask & Legend

  • Solder Mask: Spray green solder mask (LPI solder resist) → expose/develop → cure (150℃/30min) to protect non-soldering areas.
  • Legend: Silk-screen or inkjet print text identifiers (e.g., component designators) for assembly convenience.

  Surface Finish

  • Objective: Prevent oxidation and enhance solderability.
  • Common Processes:
    • ENIG (Electroless Nickel Immersion Gold): High flatness, suitable for BGA packages (gold thickness 0.025-0.10μm).
    • OSP (Organic Solderability Preservative): Low cost, suitable for short-term storage boards.
    • HASL (Hot Air Solder Leveling): Good solderability but poor flatness.

  Shaping & Testing

  • Shaping: CNC router/V-cut to cut board outlines (tolerance ±0.1mm).
  • Testing:
    • Electrical Testing: Flying probe or four-wire low-resistance testing (accuracy ±1mΩ) to check for open/short circuits.
    • Final Inspection: FQC (Final Quality Control) visual inspection (IPC-A-600G standard).
