| Product Model |
LX-SG401 |
| Fixed Ports |
4 x 10/100/1000Base-T mx1.25mm 8pin ports (Data/Power) |
| Network Protocol |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; |
|
IEEE802.3u 100Base-TX; |
|
IEEE802.3ab 1000Base-T; |
|
IEEE802.3z 1000Base-X; |
|
IEEE802.3x |
| Port Characteristics |
10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-adaptation |
| Forwarding Mode |
Store-and-forward (full-wire speed) |
| Backplane Bandwidth |
10Gbps (unblocked) |
| Packet Forwarding Rate@64byte |
9.42Mpps |
| MAC Address Table |
4K |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) |
|
100BASE-TX: Cat5 or later UTP(≤100 meter) |
|
1000BASE-T: Cat5e or laterUTP(≤100 meter) |
| Maximum Single Port/Average Power |
(DC5-12V) |
| Whole Machine Power Consumption |
Standby power consumption: <3W; Full load power consumption: <8W |
| LED Indicators |
Power indicator: PWR(green); Network indicator: Link,Link/Act (green) |
| Appearance Dimensions (L×W×H) |
38×38×10mm |
| Net Weight/Gross Weight |
<13g / <15g |
| Working Environment |
|
| Working Humidity |
10%-90%RH(non-condensing) |
| Working Temperature |
-30°C~60°C |
| Storage Humidity |
10%-90%RH(non-condensing) |
| Storage Temperature |
-40°C~85°C |

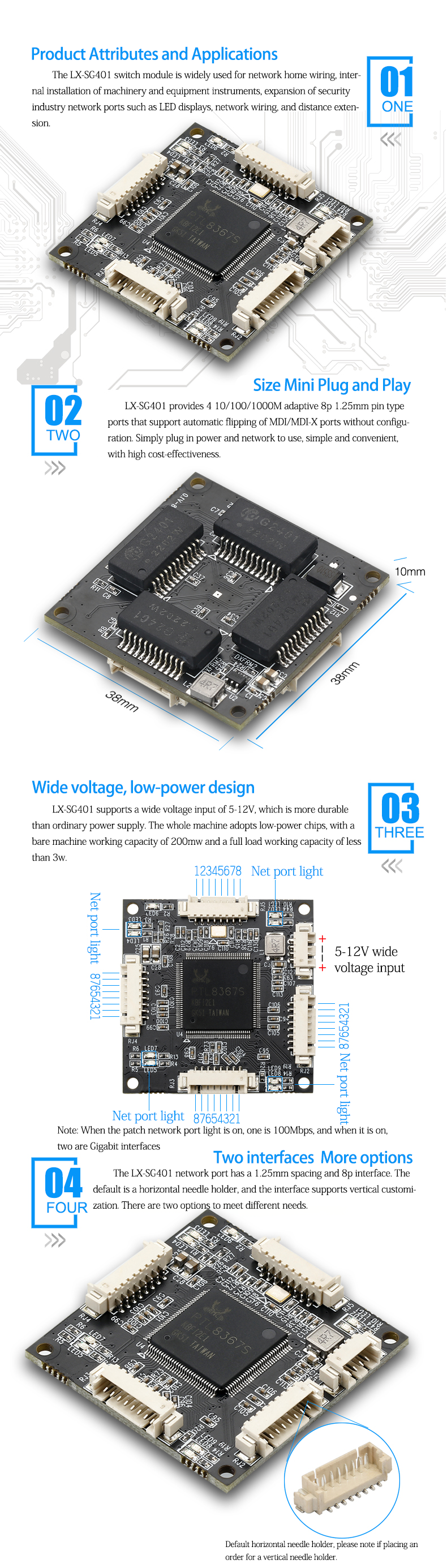

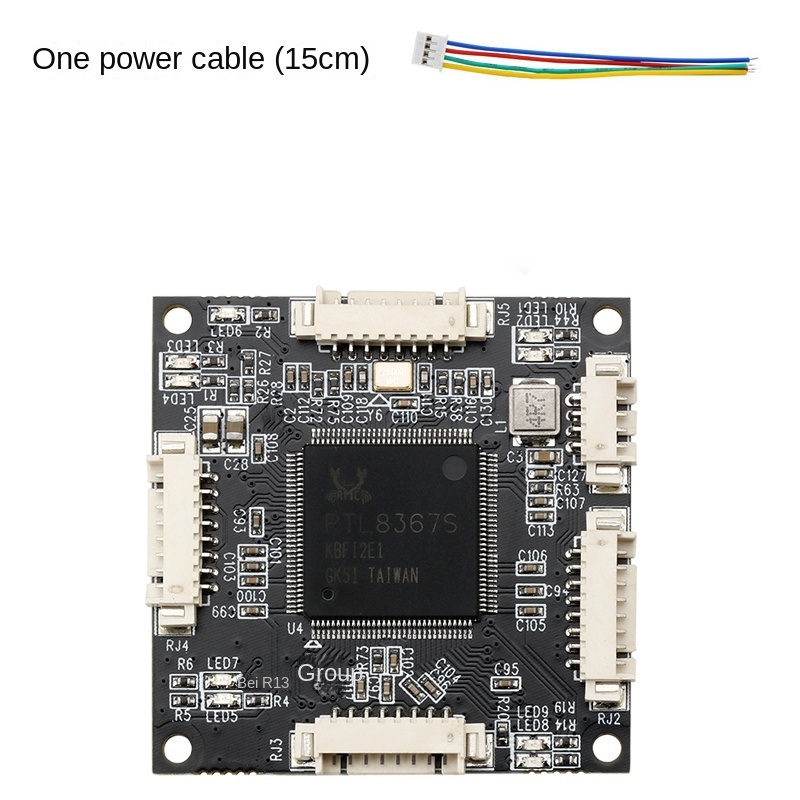

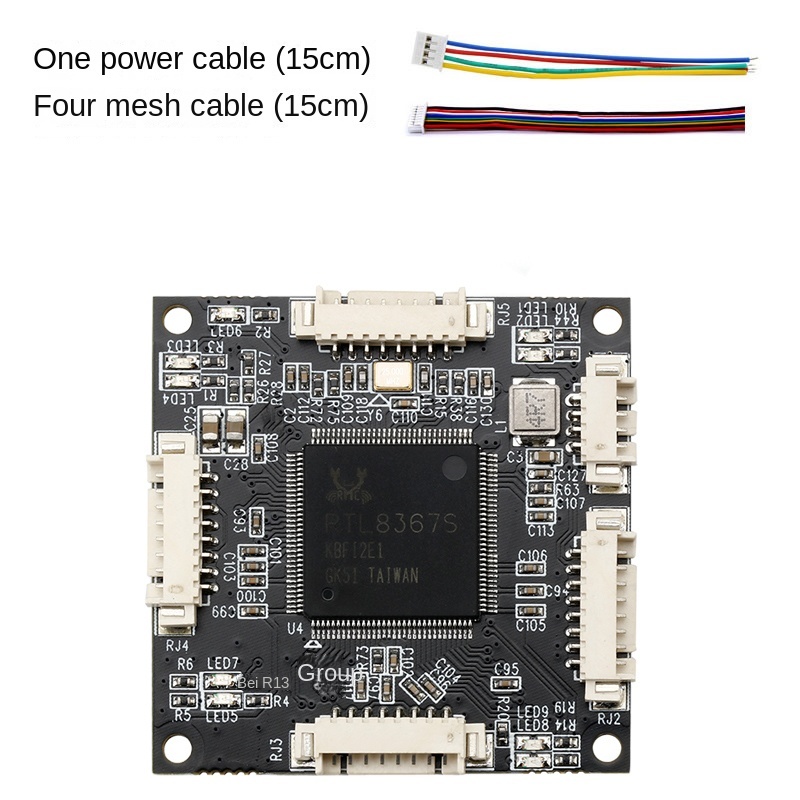

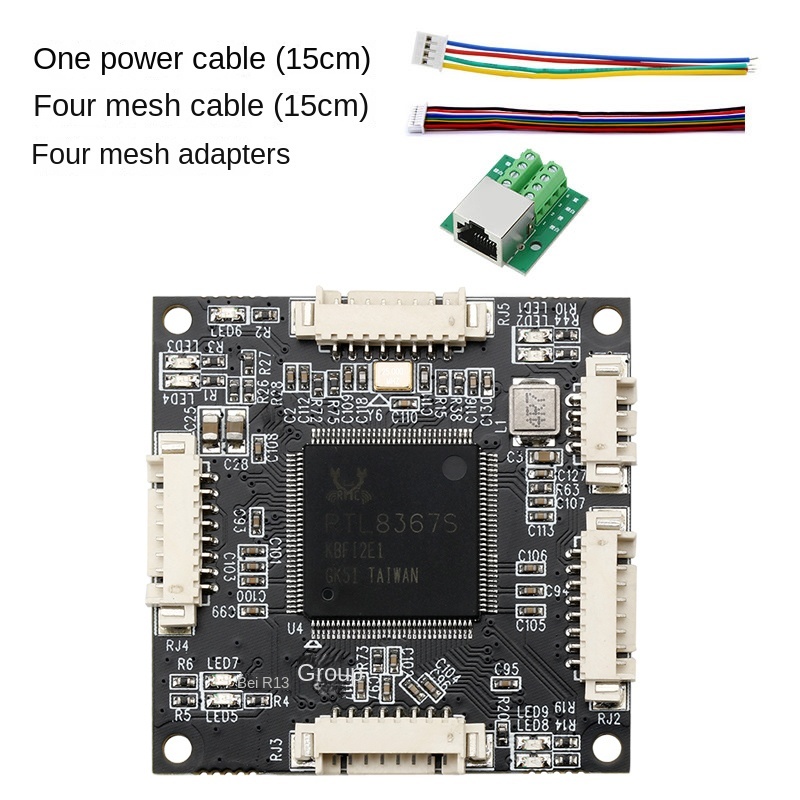

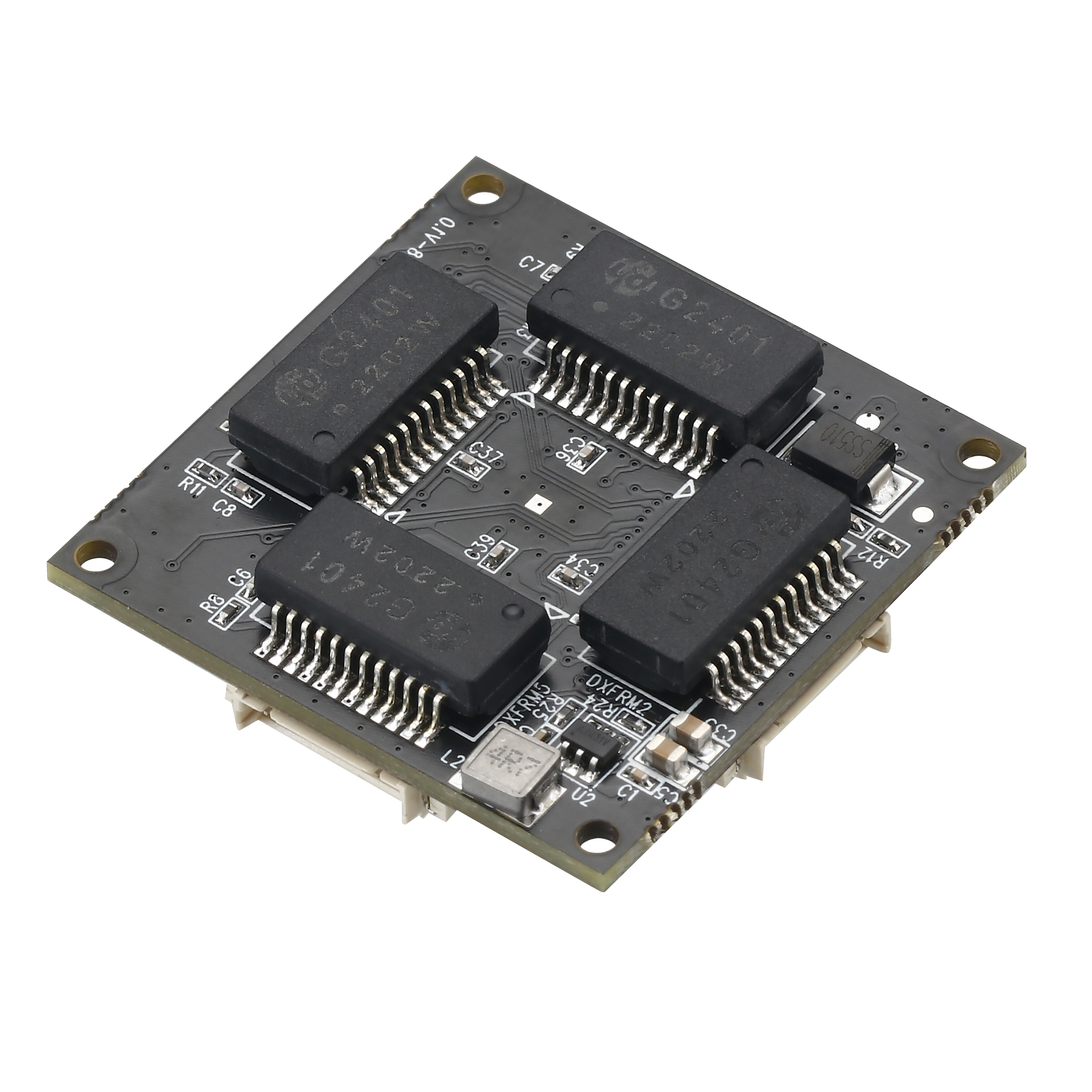

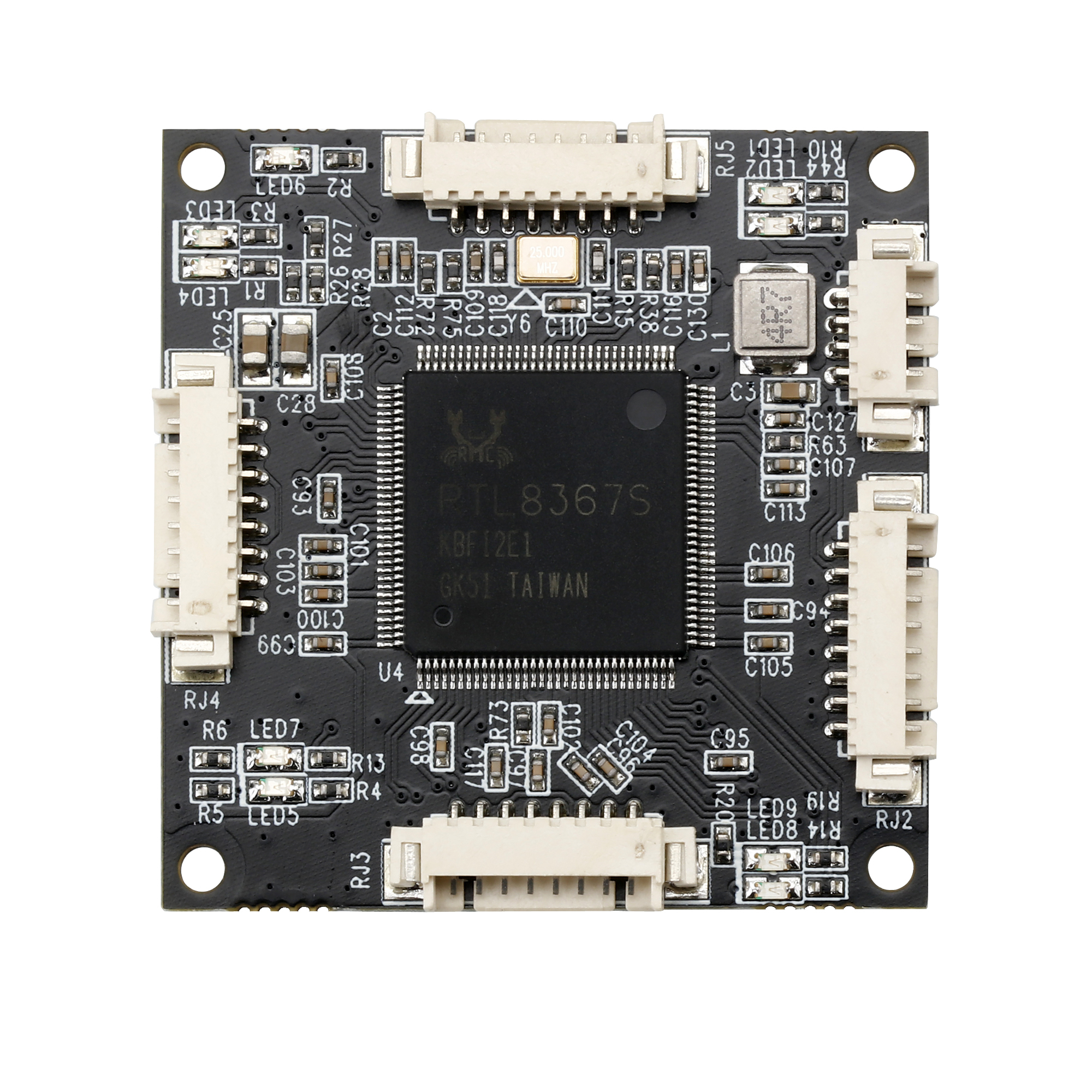

LX-SG401 4-Port Gigabit Ethernet Switch Module | Compact Unmanaged Solution for Reliable Network Expansion
The LX-SG401 is a high-performance unmanaged 4-port Gigabit Ethernet switch module designed for seamless network integration in compact spaces. Featuring 4 auto-negotiation Gigabit RJ45 ports, it delivers non-blocking wire-speed switching (8Gbps capacity) with support for 10/100/1000Mbps auto-sensing and auto-MDI/MDI-X crossover detection, ensuring plug-and-play compatibility with devices like PCs, servers, and IP cameras.
Key Features:
- Flexible Performance: Full-duplex back pressure and half-duplex flow control optimize bandwidth utilization for servers and protocols like TCP/IP, while LED indicators provide real-time port/system status diagnostics.
- Rugged & Compact: Ultra-small form factor (38×38mm) with industrial-grade components, operating temperature range of -20°C to 70°C, and ESD/surge protection for harsh environments.
- Easy Deployment: Zero configuration required. Ideal for extending networks in tight spaces such as cabinets, kiosks, or embedded systems.
- Cost-Effective: Eliminates complex setups with its "no-frills" design, offering enterprise-grade reliability at a budget-friendly price.
Applications:
- Small Office/Home Office (SOHO): Connects printers, NAS, and workstations for high-speed file sharing.
- Industrial Control: Integrates with PLCs, HMI panels, and machine tools for real-time data exchange.
- Security Systems: Powers multi-camera setups with Gigabit throughput for high-resolution video streaming.
Technical Highlights:
- Ports: 4×Gigabit RJ45 (auto-negotiation)
- Power: 5-12V DC input (via 2-pin header)
- Latency: <1.8μs (low-latency architecture)
- Mounting: Surface-mount or DIN-rail compatible (with bracket)
Ideal for OEMs and system integrators, the LX-SG401 combines plug-and-play simplicity, industrial durability, and compact design to streamline network deployments in edge computing, factory automation, and smart infrastructure projects.
80-Word Summary:
LX-SG401 4-port Gigabit switch module, unmanaged design with 4 auto-negotiation RJ45 ports. Non-blocking architecture, plug-and-play, LED diagnostics. Industrial-grade (-20°C to 70°C), compact, and cost-effective for SOHO, industrial control, and security systems. Enhanced bandwidth for multi-device environments.
