| Product Name |
Dual-Fiber 8-Electrical-Port Ethernet Ring Network Switch Module |
| Product Model |
LX-IS802F |
| Standards |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3x Flow Control |
| Protocol |
CSMA/CD |
| Filtering and Forwarding Rates |
Ethernet 10Mbps (half-duplex) 20Mbps (full-duplex) 10Mbps: 14.880pps
Fast Ethernet 100Mbps (half-duplex) 200Mbps (full-duplex) 100Mbps: 148,800pps
Gigabit Ethernet 2000Mbps (full-duplex), 1000Mbps: 1,488,000pps |
| Power Consumption |
Idle: 3w@12V DC; Load: 8w@12V DC |
| Network Media |
10Base-T: Category 3 or above UTP (=100m)
100Base-TX: Category 5 UTP (=100m)
1000Base-T: Category 6 or above UTP (<100m) |
| Number of Ports |
8 x 10/100/1000M self-adaptive RJ45 ports, 2 x 1000Base-X SFP optical ports |
| Cascade |
All ports can be used as UP-LINK ports |
| POE Power |
Meets IEEE802.3AF/AT standard, 1/2(+) 3/6(-) single port 15.4-30W |
| Temperature |
Working Temperature: -30°C~70°C
Storage Temperature: -40°C~85°C |
| Humidity |
Working Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
| Backplane Bandwidth |
20G |
| LED Indicators |
1 Power Light (Power light: Green)
18 Data Lights (Link/Act Green lights) |
| Product Dimensions (WxHxD) |
9512027mm |
| Applied Power Supply |
Voltage Input: DC12-60V/1A
Input Method: Pin-type 2P wiring terminal, pitch 3.96mm |

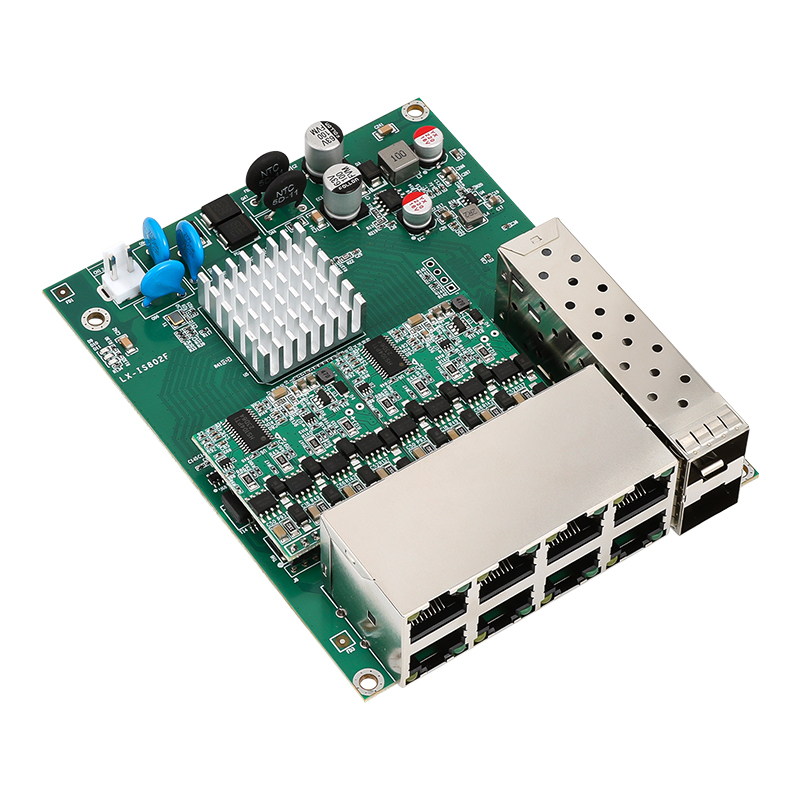

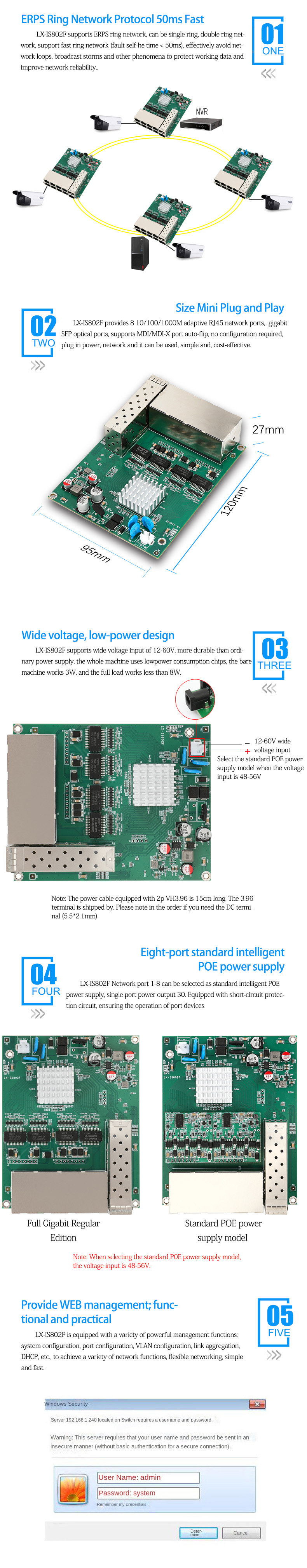

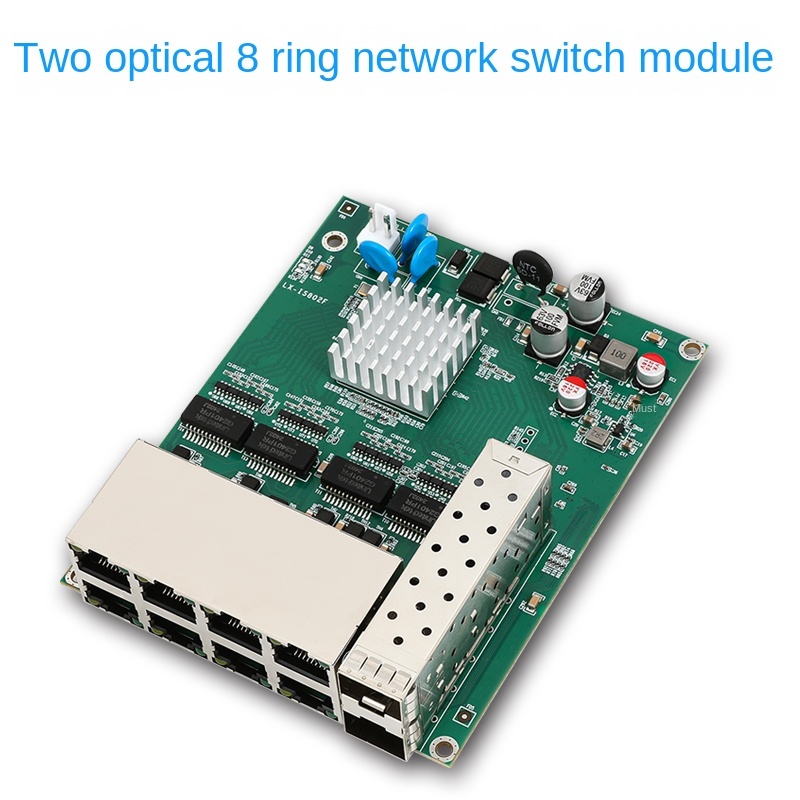

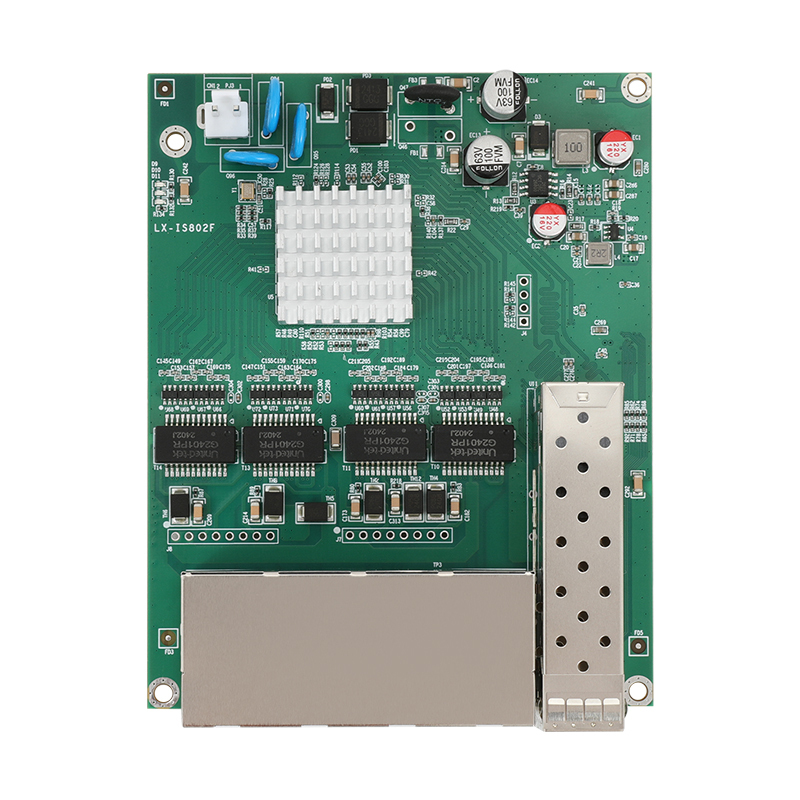

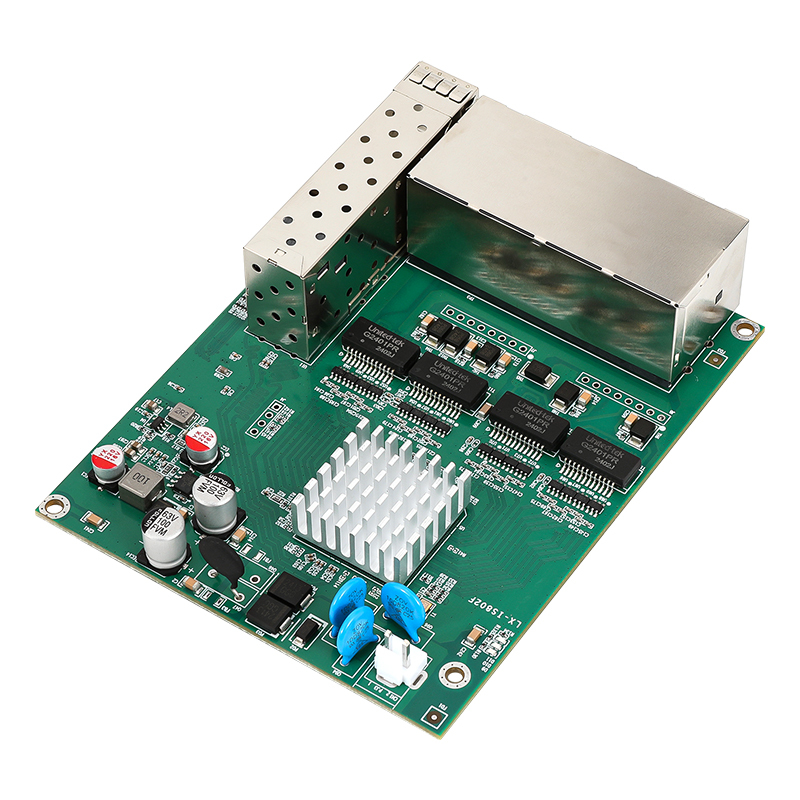

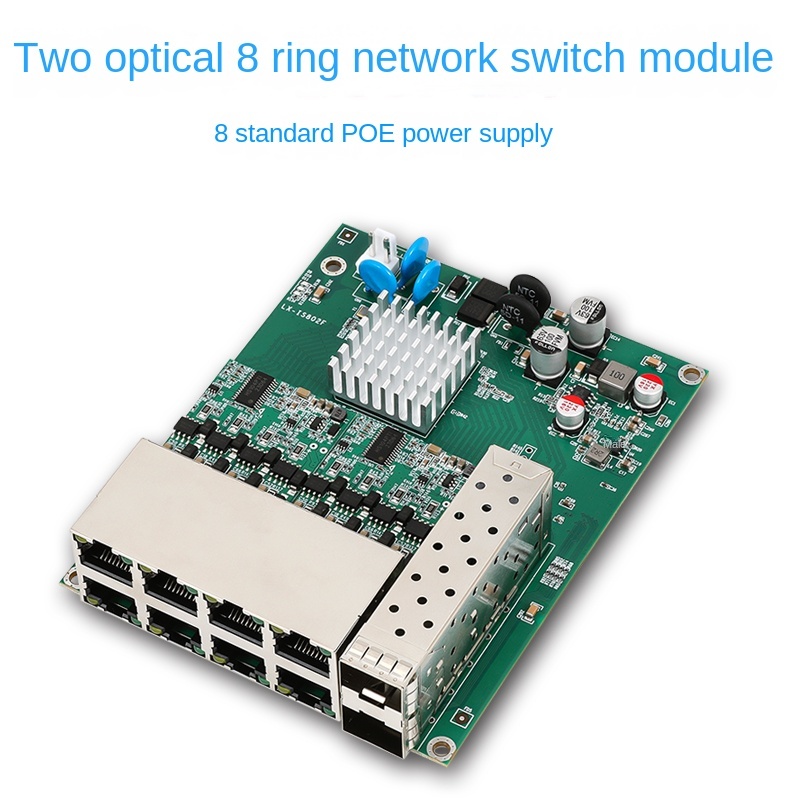

LX-IS802F is a ring network Gigabit PoE fiber switch module designed for demanding industrial environments. It features 8×Gigabit adaptive RJ45 ports (supporting IEEE802.3af/at) and 2×Gigabit SFP optical slots, enabling seamless integration of copper and fiber networks. Each of the 8 electrical ports delivers up to 30W PoE power, with a total system output of 130W, ideal for powering IP cameras, wireless APs, and IoT devices.
Key Features:
- High-Performance Switching: Non-blocking wire-speed forwarding across all ports, supporting 10/100/1000Mbps auto-negotiation.
- Advanced Management: Comprehensive configuration options including VLAN segmentation (802.1Q), port mirroring, link aggregation (LACP), and DHCP snooping for enhanced network security.
- Industrial-Grade Design: Robust metal housing with -20°C to 70°C operating range, EMI/EMP protection, and redundant power input (24-48V DC).
- Flexible Deployment: Supports ring topology with <20ms fault recovery time, ensuring uninterrupted communication in critical infrastructure projects.
Applications:
- Smart City Surveillance: Powers and connects high-resolution IP cameras with fiber backbone redundancy.
- Industrial Automation: Integrates PLCs, HMIs, and robotic systems in manufacturing plants.
- Transportation: Deploys in railway signaling and traffic management networks for reliable data transmission.
With its PoE+ capabilities, rich management features, and rugged design, the LX-IS802F is an optimal solution for building scalable, future-proof networks in harsh environments.
