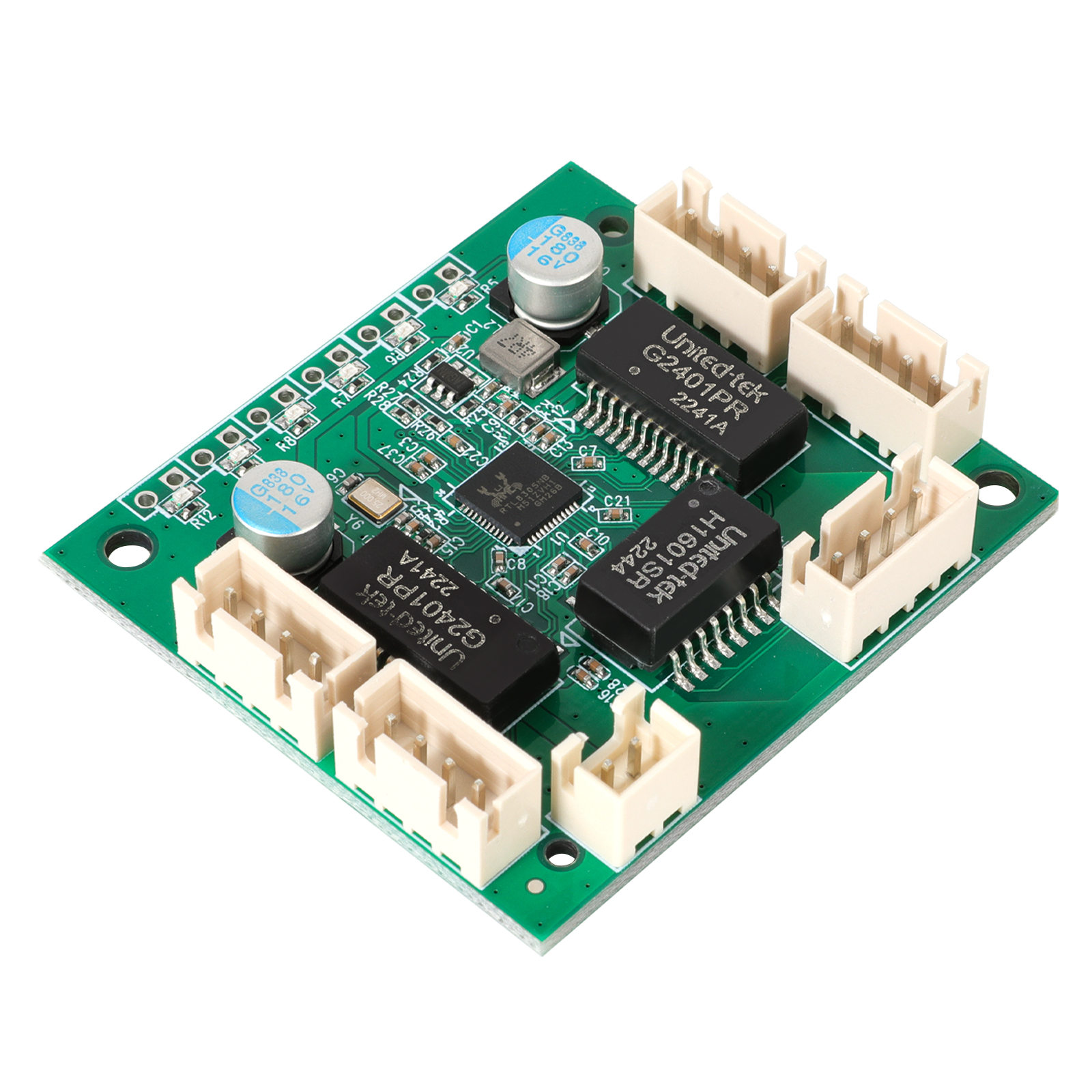

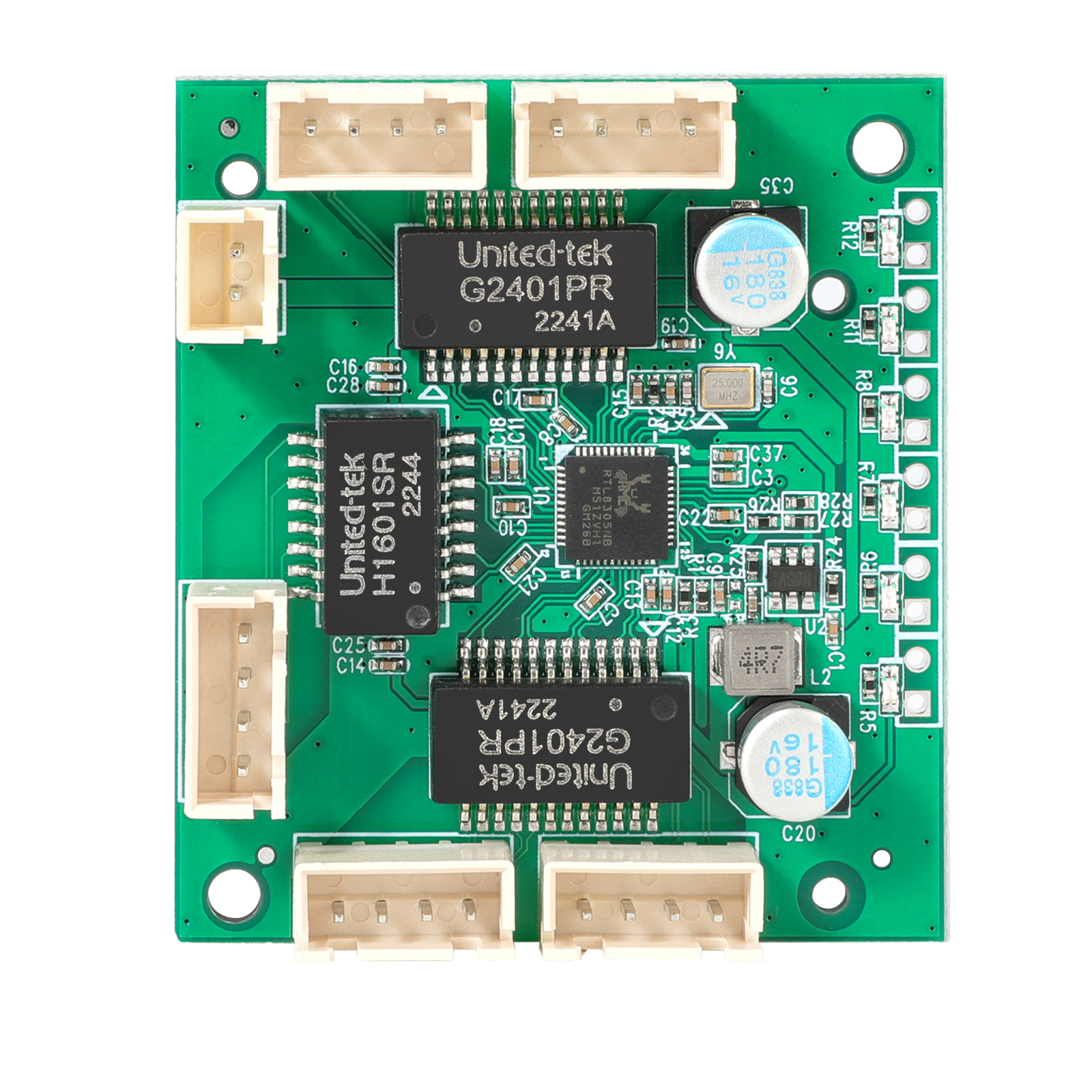

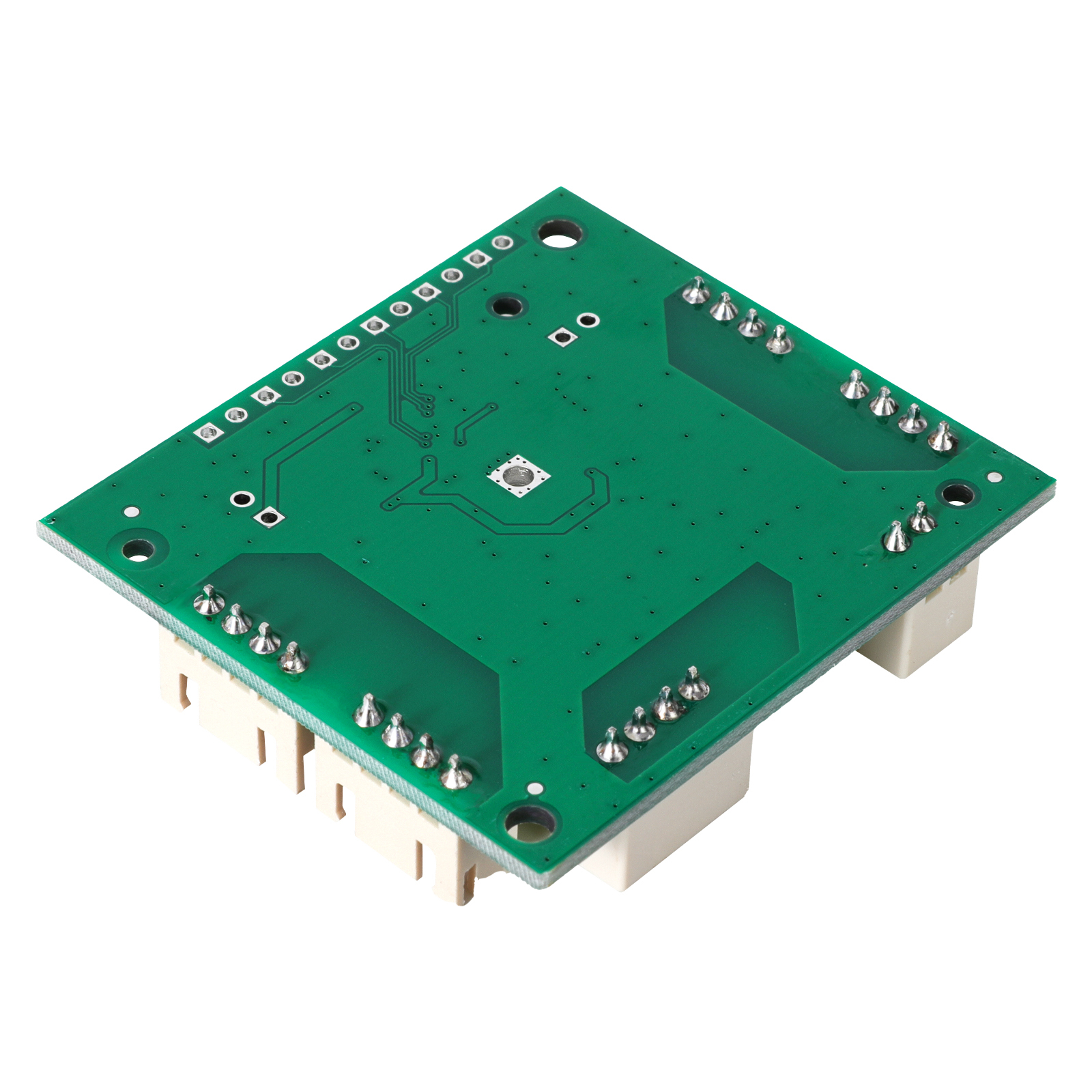

| Product Model |
LX-SWF501-1 |
| Fixed Ports |
5×10/100M Base-T XH2.54mm 4-pin socket ports (Data/Power) |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x |
| Port Characteristics |
10/100M Base-T auto-detection, full/half-duplex MDI/MDI-X auto-adaptation |
| Forwarding Mode |
Store-and-forward (full-speed) |
| Backplane Bandwidth |
1Gbps (unobstructed) |
| Forwarding Rate |
Ethernet 10Mbps (half-duplex) 20Mbps (full-duplex), 10Mbps: 14,880pps
Fast Ethernet 100Mbps (half-duplex), 200Mbps (full-duplex), 100Mbps: 148,800pps |
| Cascading |
All ports can be used as UP-LINK ports |
| Packet Forwarding Rate @64byte |
4Mpps |
| MAC Address Table |
2K |
| Twisted-Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters) |
| Whole Machine Power Consumption |
Standby power consumption: <3W; Full-load power consumption: <5W |
| LED Indicators |
Power indicator: PWR (green); Network indicator: Link, Link/Act (green) |
| Appearance Dimensions (L×W×H) |
45×50×10mm |
| Net/Gross Weight |
<20g / <22g |
Working Environment
|
|
| Working Humidity |
10%-90%RH (non-condensing) |
| Working Temperature |
-30°C-70°C |
| Storage Humidity |
10%-90%RH (non-condensing) |
| Storage Temperature |
-40°C-85°C |

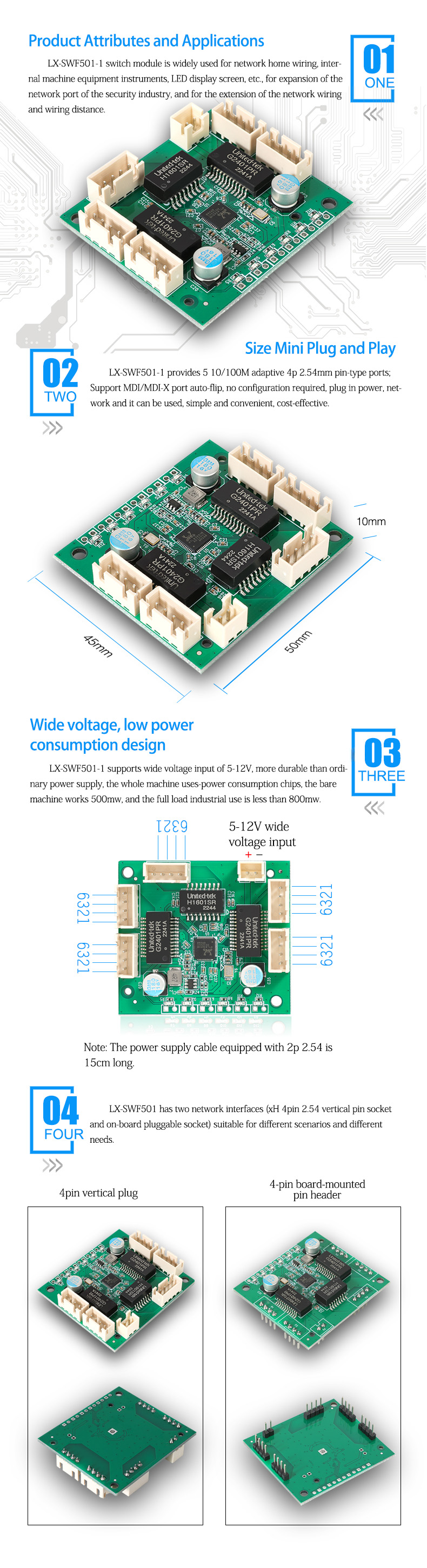

Dual-Interface Embedded Architecture
| Model |
Interface Type |
Core Advantages |
Extreme Parameters |

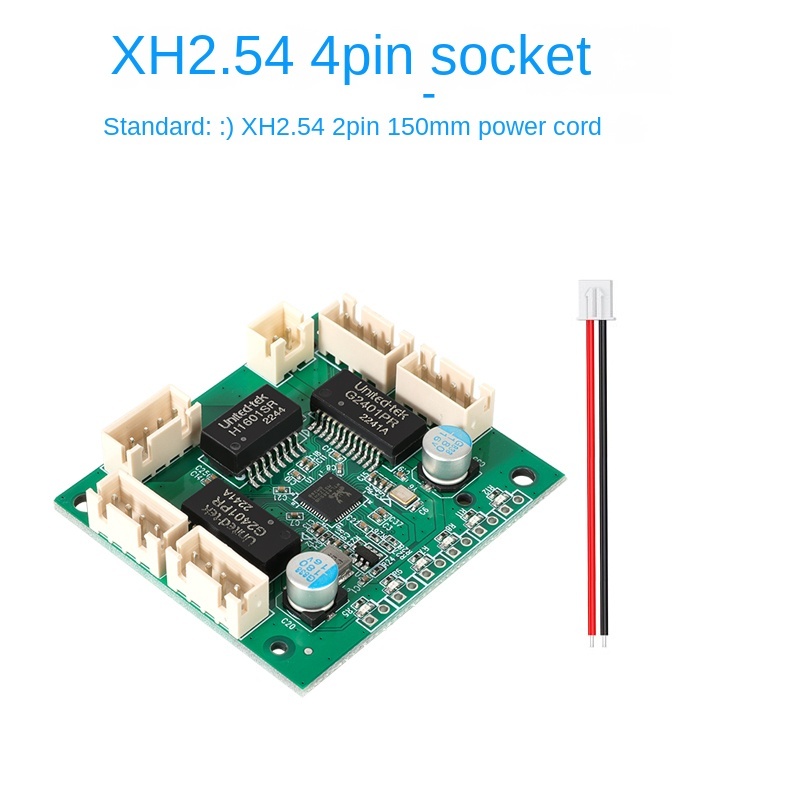

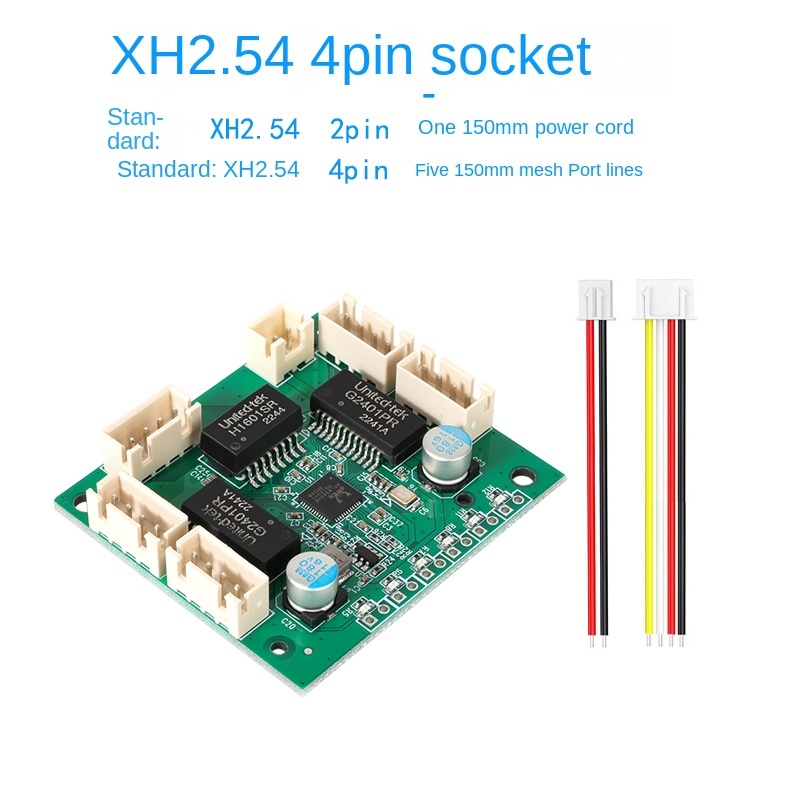

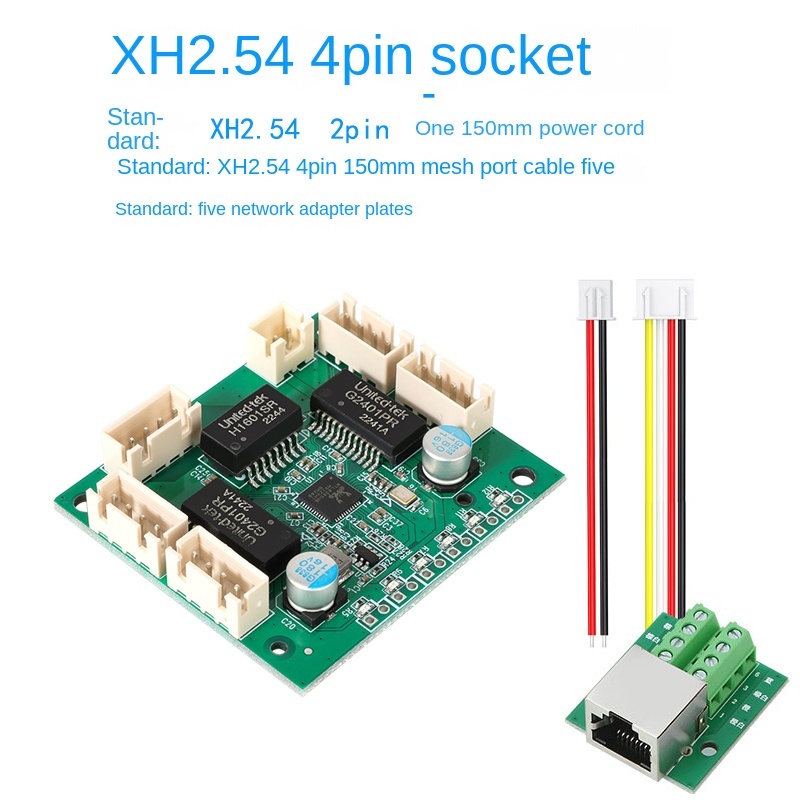

| LX-SWF501-1A |
XH2.54mm 4pin |
Vibration Resistance 8Grms (GB/T 2423.10) |
Humidity Tolerance 0-100% Condensation |

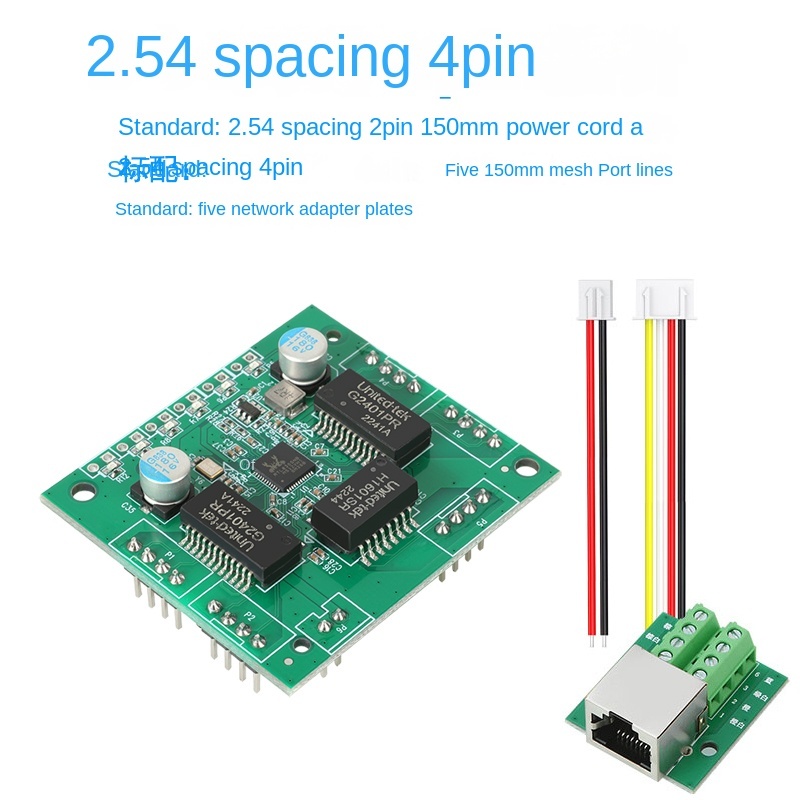

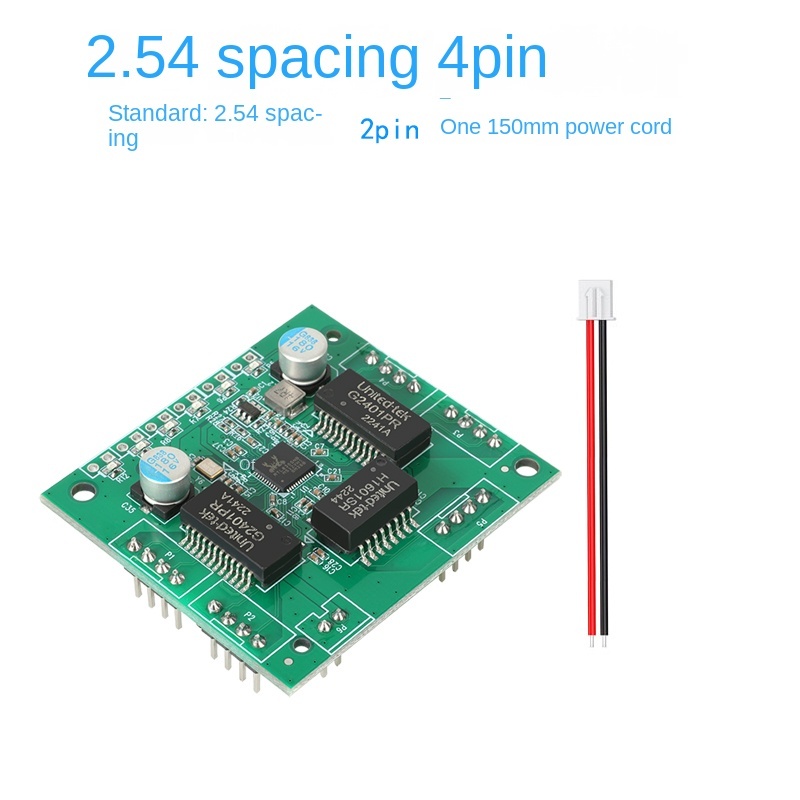

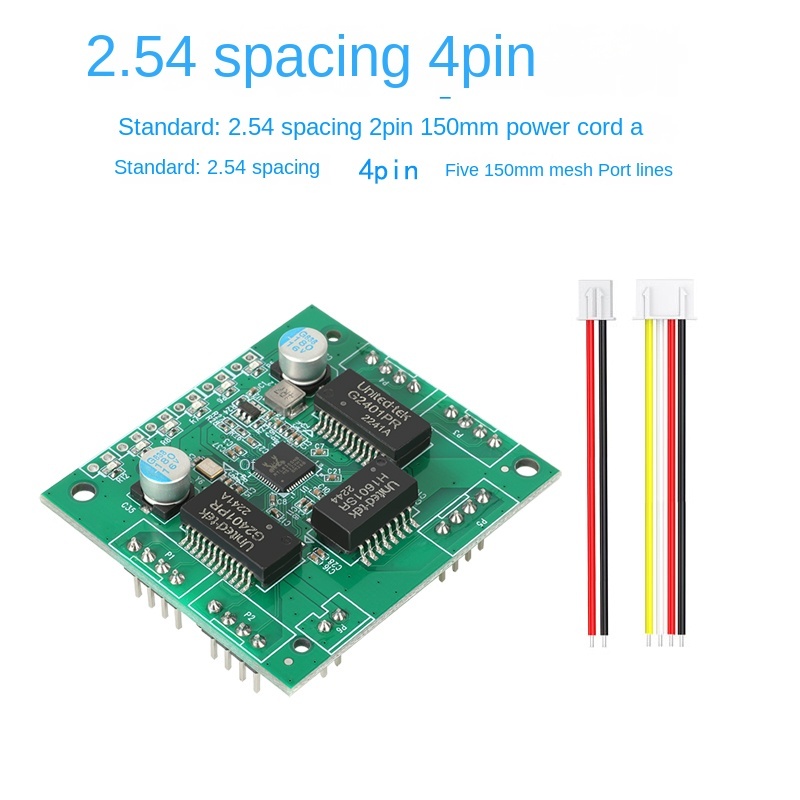

| LX-SWF501-1B |
Onboard 4pin Pin Headers |
Saves 85% Vertical Space |
Salt Spray Protection ≥1000h (GJB 150.11A) |
Industrial-Grade Performance Matrix
✅ Environmental Adaptability:
- Cold start at -40°C (GB/T 2423.22) to full-load operation at 85°C (EN 50155 Clause 12)
- Fanless design passes 96h dual 85 test (85°C/85%RH)
✅ Network Performance:
- Non-blocking switching bandwidth of 1Gbps, VLAN priority tagging (IEEE 802.1q)
- Port forwarding delay <2μs (RFC 2544 actual measurement)
✅ Integration Advantages:
- Customizable pin headers for RS232/485 hybrid interfaces (baud rate adaptive 115.2Kbps)
- Thickness of 3.2mm (the world's thinnest industrial switch module)
🏭 Three Revolutionary Application Scenarios
-
Cold Region Rail Transit Control Systems
▶️ The onboard pin header version is surface-mount soldered to the Train Control Unit (TCU), passing EN 50155:2025 certification.
▶️ The -40°C start-up ensures communication reliability for the China-Russia cross-border high-speed railway (annual failure rate <0.01%).
-
Communication Core of Sealed Military Equipment
▶️ The XH2.54 version is directly connected to the shipborne radar processing unit, with IP68 protection to prevent salt spray corrosion.
▶️ The fanless design adapts to the zero-ventilation environment of submarine sonar compartments (GJB 7368-2025 certification).
-
Embedded Networking for Industrial Instruments
▶️ Custom PCB enables hybrid access for 8 IO-Link sensors (latency <1.8ms).
