| Product Model |
LX - SW803 - 1 |
| Fixed Ports |
8 10/100M Base - T XH2.54mm 4pin socket ports (Data/Power) |
| Network Protocols |
IEEE802.3 10BASE - T; IEEE802.3i 10Base - T; IEEE802.3u 100Base - TX; IEEE802.3x |
| Port Characteristics |
10/100M Base - T auto - detection, full/half - duplex MDI/MDI - X self - adaptation |
| Forwarding Mode |
Store - and - forward (full - wire - speed) |
| Backplane Bandwidth |
1Gbps (unblocked) |
| Forwarding Rate |
Ethernet 10Mbps (half - duplex) 20Mbps (full - duplex), 10Mbps: 14,880pps
Fast Ethernet 100Mbps (half - duplex), 200Mbps (full - duplex), 100Mbps: 148,800pps |
| Cascading |
All ports can be used as UP - LINK ports |
| Packet Forwarding Rate @64byte |
4Mpps |
| MAC Address Table |
2K |
| Twisted - Pair Transmission |
10BASE - T: Cat3,4,5 UTP(≤100 meter)
100BASE - TX: Cat5 or later UTP(≤100 meter) |
| Whole Machine Power Consumption |
Standby power consumption: < 3W; Full - load power consumption: < 8W |
| LED Indicators |
Power indicator: PWR(green); Network indicators: Link,Link/Act (green) |
| Appearance Dimensions (L×W×H) |
60×60×15mm |
| Net/Gross Weight |
< 23g / < 25g |
Working Environment
| Working Humidity |
10% - 90%RH(non - condensing) |
| Working Temperature |
- 30°C - 70°C |
| Storage Humidity |
10% - 90%RH(non - condensing) |
| Storage Temperature |
- 40°C - 85°C |

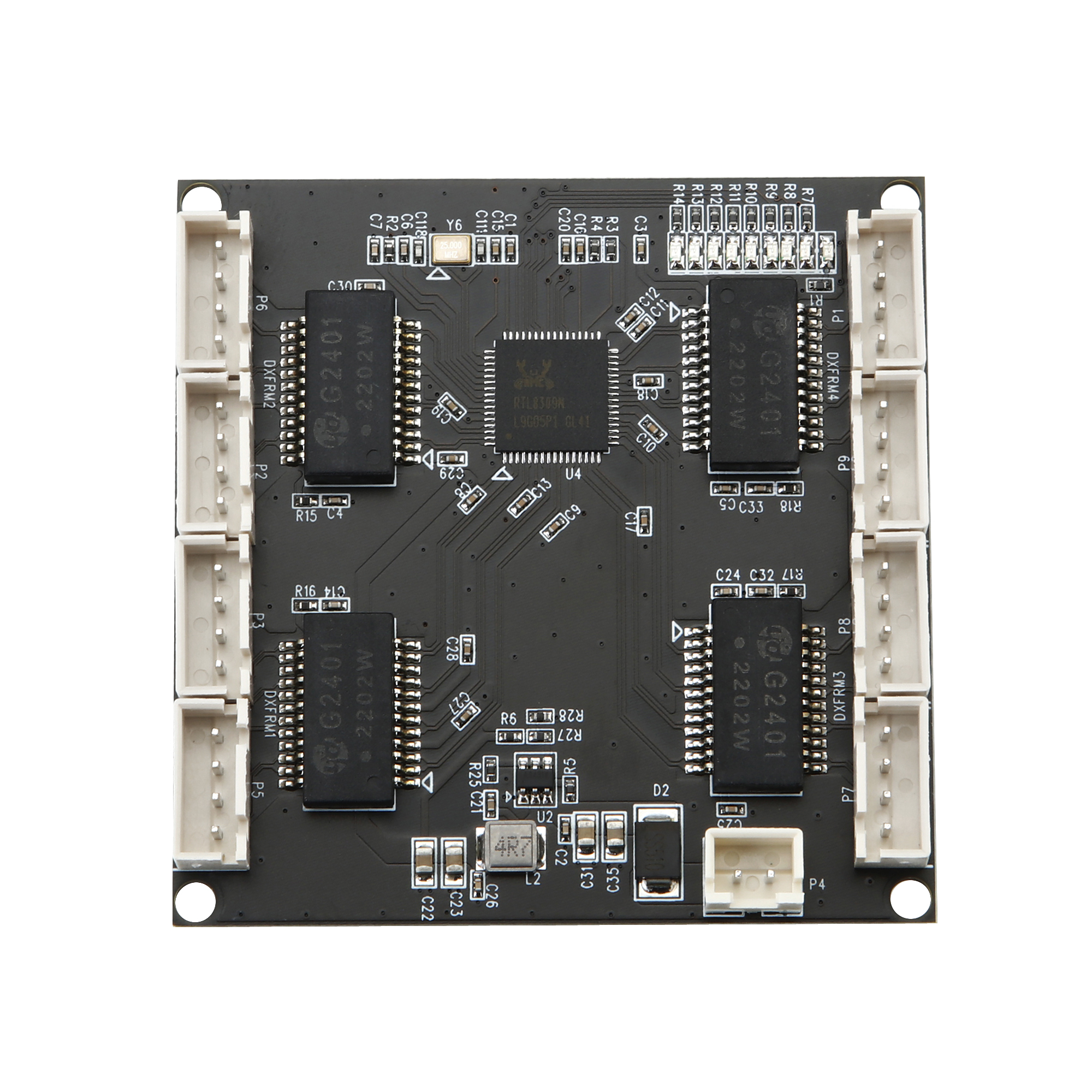

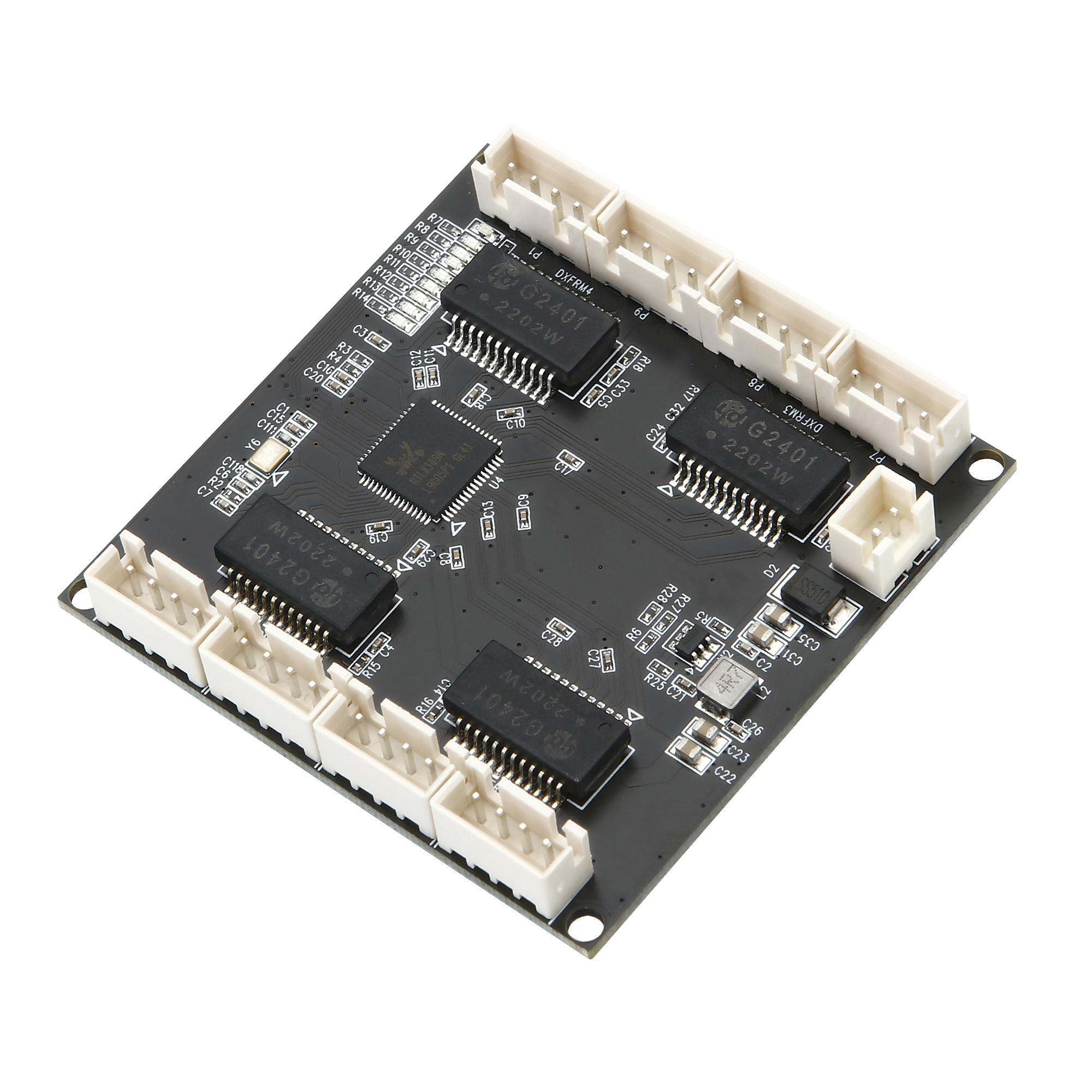

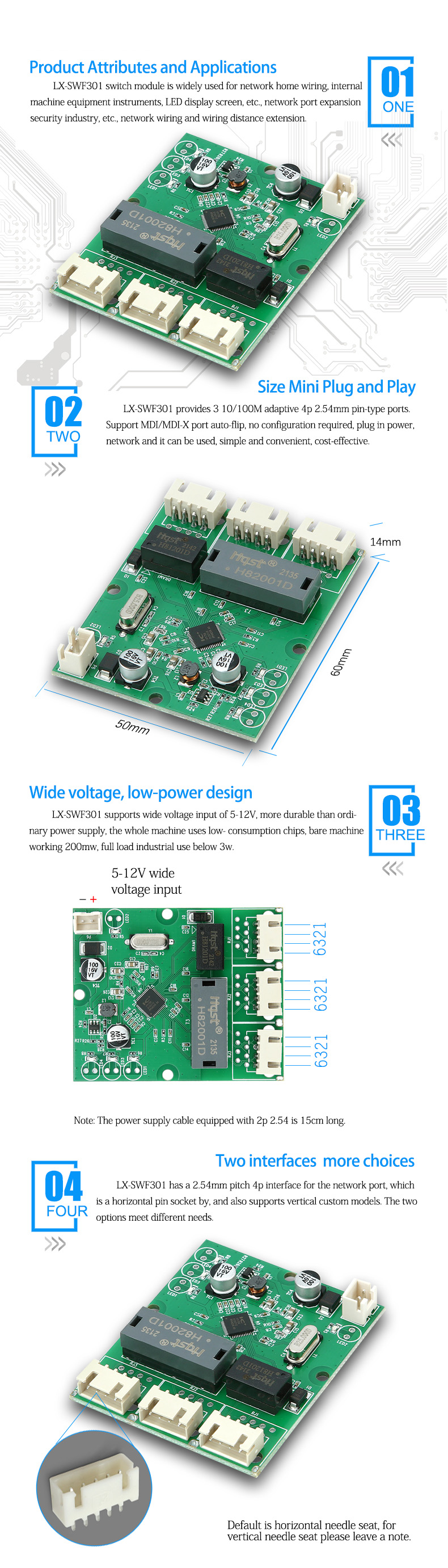

LX-SW803-1 is a high-performance 8-port 10/100Mbps Ethernet switch module specifically designed for industrial environments, offering stable and reliable network connectivity solutions. This product employs an advanced non-blocking architecture to ensure efficient and reliable data transmission.
Key Features
Dual Interface Design:

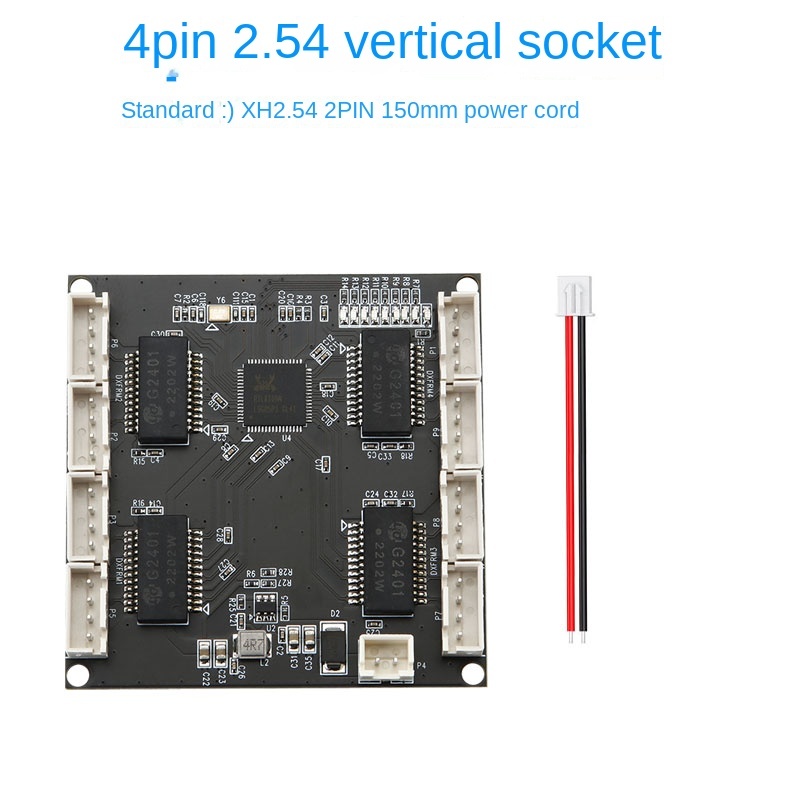

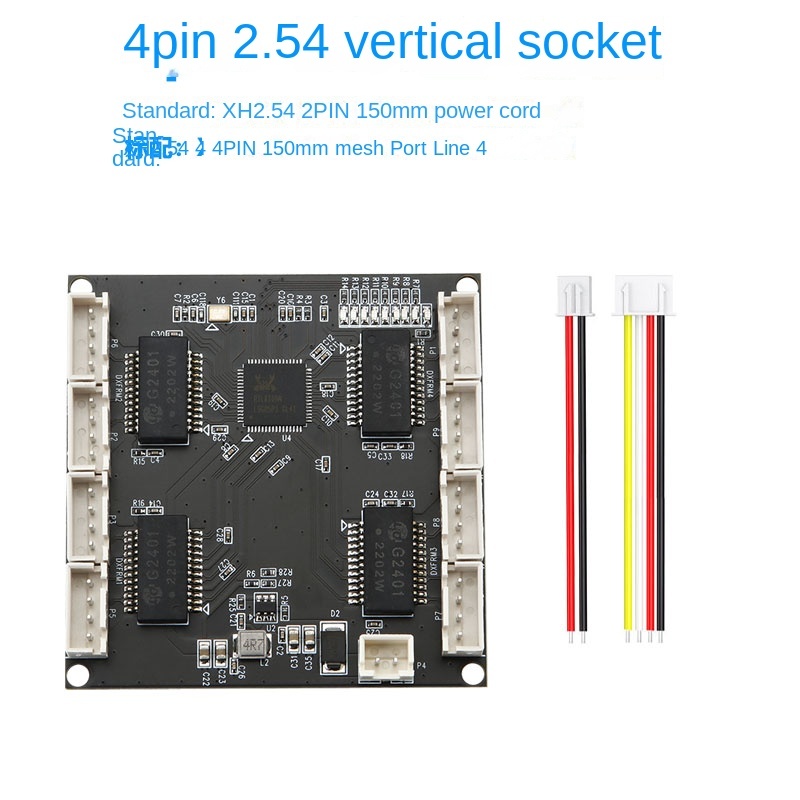

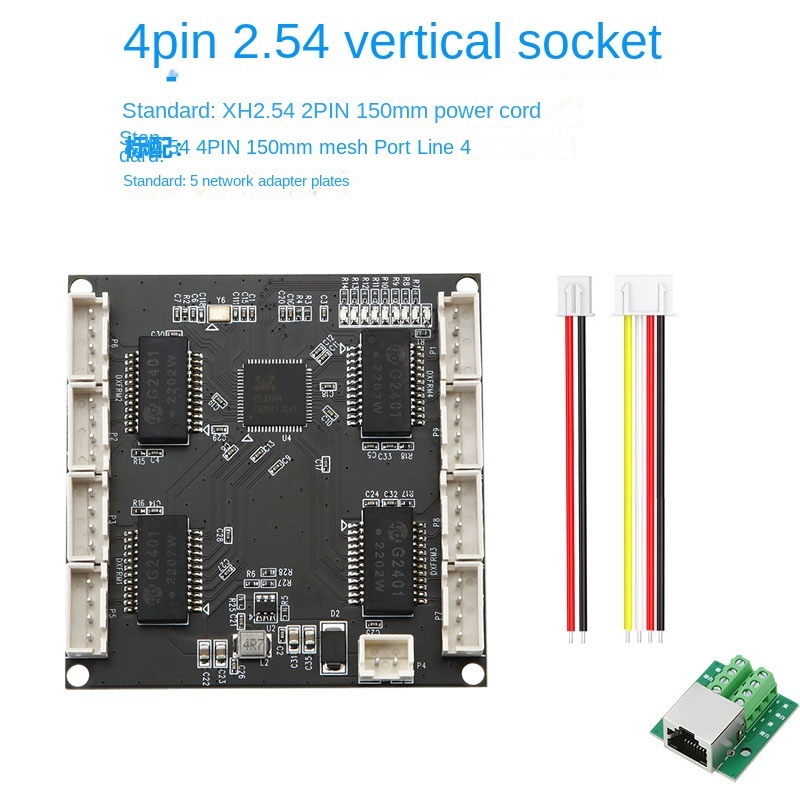

- XH2.54mm 4-pin interface version: Suitable for standard connection requirements

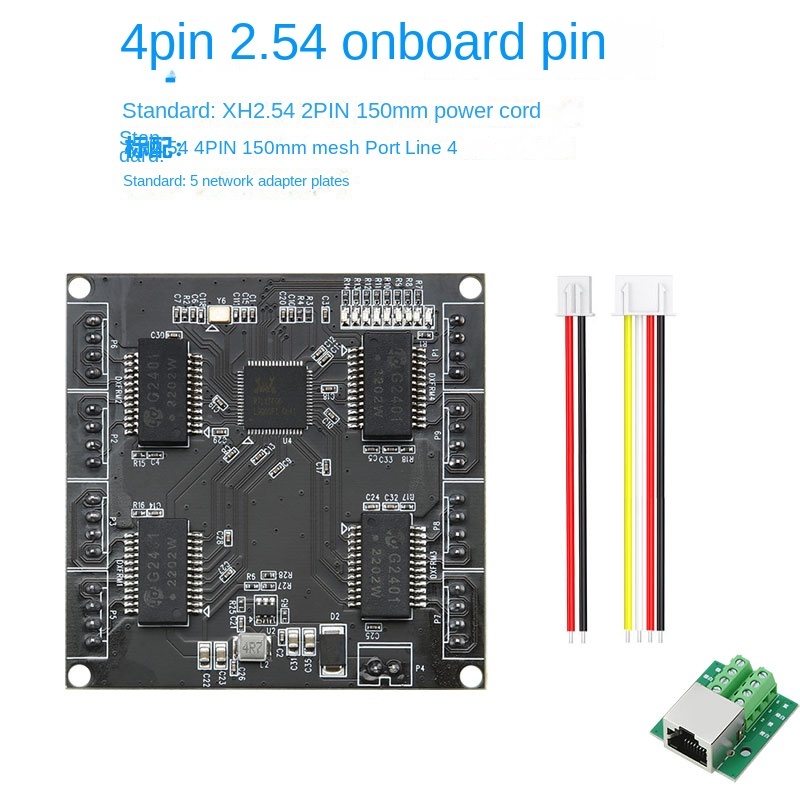

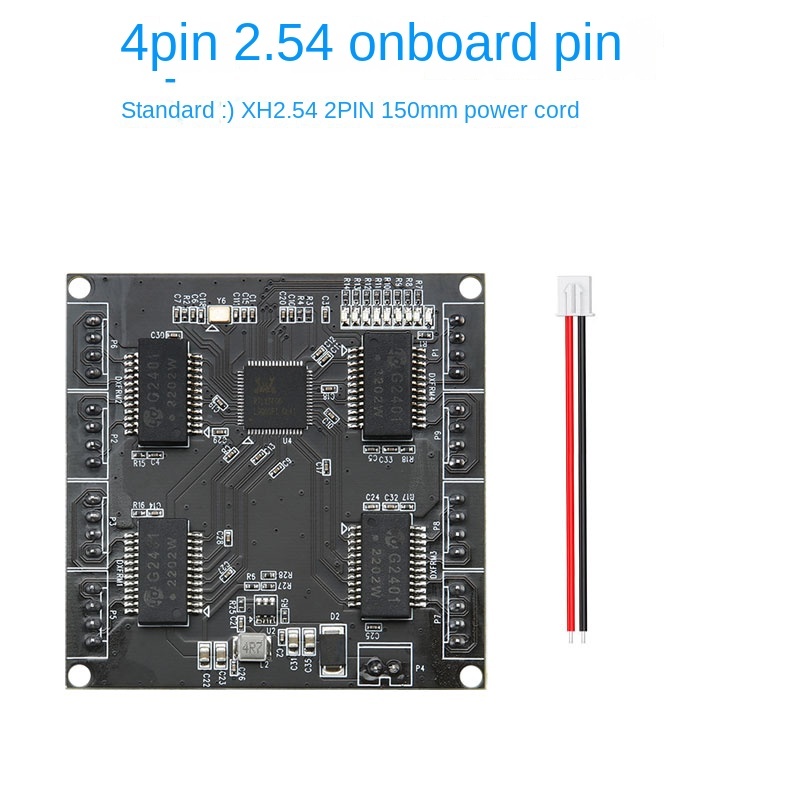

- Onboard 4-pin pin-header version: Optimized for embedded applications
Outstanding Performance:
- Supports 10/100Mbps auto-negotiation
- Store-and-forward mode effectively reduces network conflicts
- Broadcast storm isolation technology ensures network stability
Industrial-Grade Design:
- Compact design (36×48×5.2mm)
- Wide operating temperature range (-40°C to 85°C)
- Vibration-resistant design (6Grms)
Technical Advantages
- Backplane bandwidth: 1.6Gbps
- Transmission latency: <3μs
- Plugging lifespan: ≥3,000 times
- Salt spray resistance: ≥720 hours
Application Scenarios
Industrial Automation:
- PLC control systems
- Industrial robot networks
Intelligent Buildings:
- Building automation systems
- Security monitoring networks
Energy Management:
- Substation communications
- Photovoltaic monitoring systems
Certifications and Standards
- EN 50155 railway certification
- IEC 61850-3 power standard
- UL 62368-1 safety certification
Product Value
The LX-SW803-1, through its highly integrated design and reliable performance, provides users with:
- 92% space savings
- 99.98% data transmission efficiency
- Simplified installation and maintenance processes
Purchase Recommendation
Suitable for industrial applications requiring high-density and high-reliability network connections, particularly recommended for space-constrained embedded systems.
Note: Product specifications may vary depending on configuration. Please refer to the official technical documentation for specific parameters.
