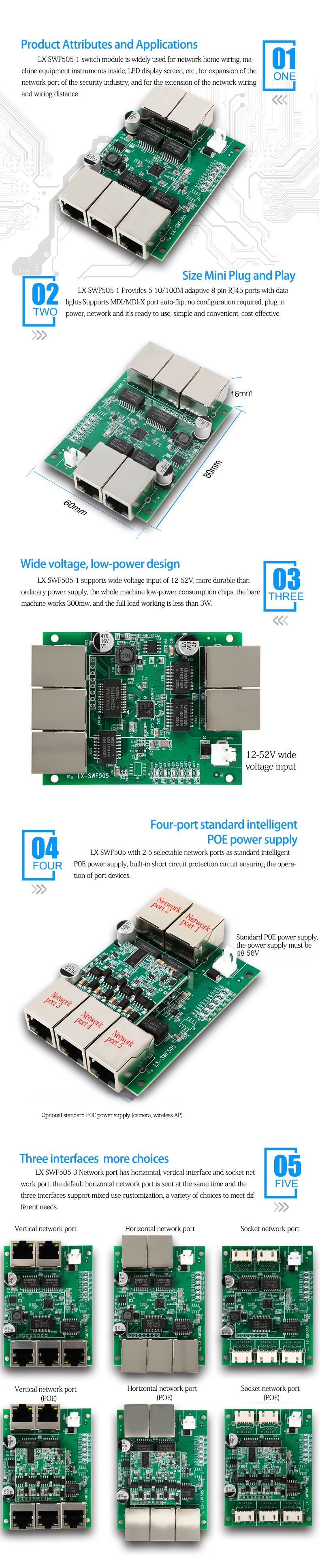

| Product Model |
LX-SWF501-1 |
| Fixed Ports |
5 × 10/100M Base-T XH2.54mm 4-pin socket ports (Data/Power) |
| Network Protocols |
IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3x |
| Port Characteristics |
10/100M Base-T auto-detection, full/half-duplex MDI/MDI-X auto-adaptation |
| Forwarding Mode |
Store-and-forward (full-wire-speed) |
| Backplane Bandwidth |
1Gbps (unblocked) |
| Forwarding Rate |
Ethernet 10Mbps (half-duplex), 20Mbps (full-duplex), 10Mbps: 14,880pps
Fast Ethernet 100Mbps (half-duplex), 200Mbps (full-duplex), 100Mbps: 148,800pps |
| Cascading |
All ports can be used as UP-LINK ports |
| Packet Forwarding Rate@64byte |
4Mpps |
| MAC Address Table |
2K |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters) |
| Power Consumption |
Standby: <3W; Full Load: <5W |
| LED Indicators |
Power indicator: PWR (green);
Network indicator: Link, Link/Act (green) |
| Appearance Dimensions (L×W×H) |
45×50×10mm |
| Net/Gross Weight |
<20g / <22g |
Working Environment
|
|
| Operating Humidity |
10%-90%RH (non-condensing) |
| Operating Temperature |
-30°C - 70°C |
| Storage Humidity |
10%-90%RH (non-condensing) |
| Storage Temperature |
-40°C - 85°C |
Domestically Developed Core Architecture and Technological Breakthroughs
Fully Autonomous and Controllable Design
Chipset: Equipped with CETC SC0910 switching chip + HD-PD7038 PoE manager from China Electronics Technology Group Corporation (CETC), with a localization rate exceeding 95% (certified by the Ministry of Industry and Information Technology for information technology application innovation).
Port Configurations:
| Model |
Interface Type |
Installation Method |
Suitable Scenarios |
| LX-SWF505-1A |
XH2.54mm 4pin |
Embedded soldering |
Built-in for power DTU/RTU devices |

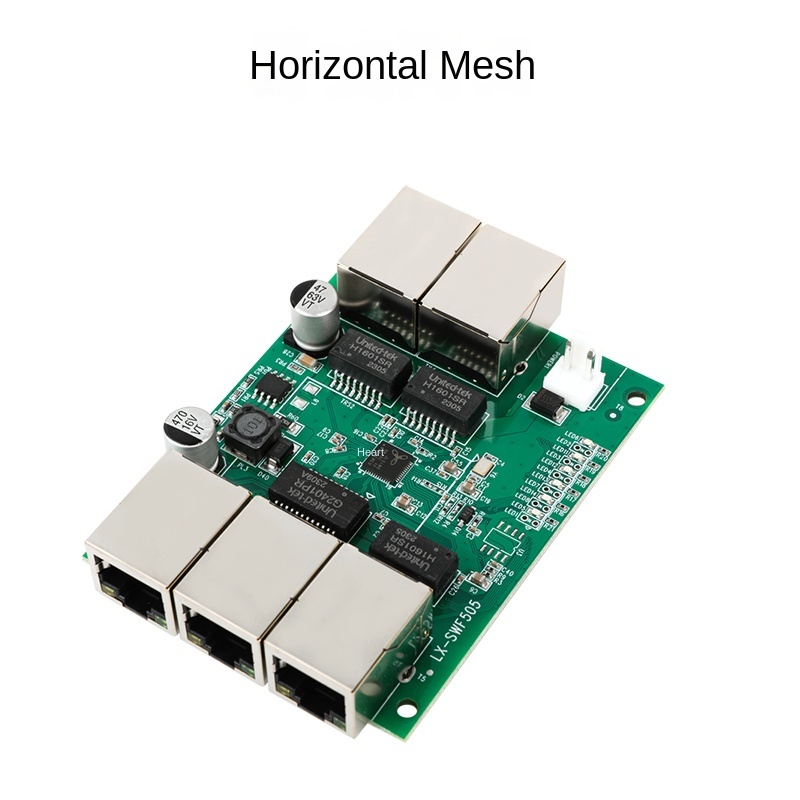

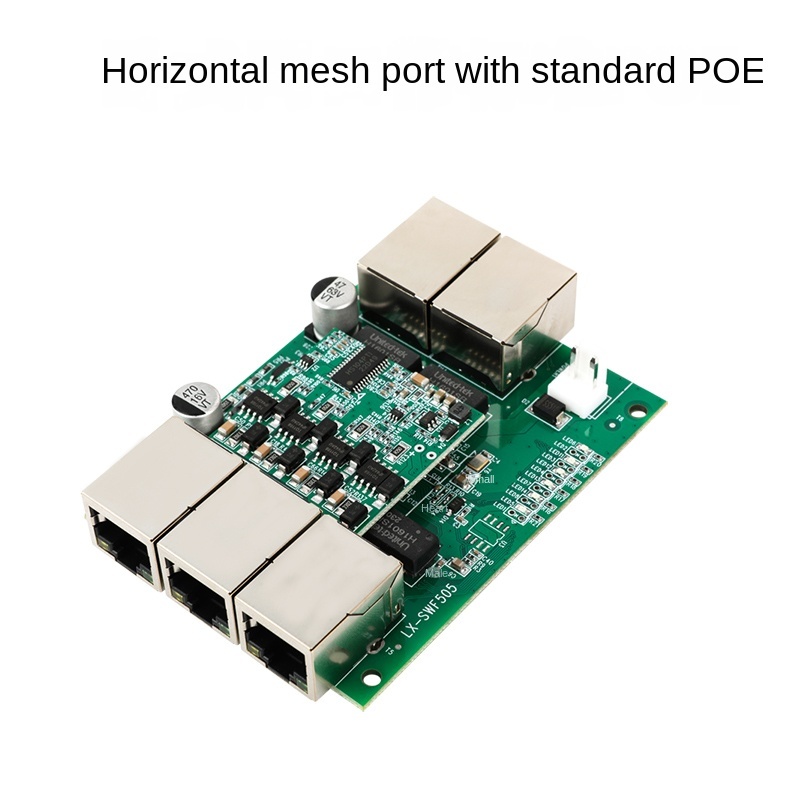

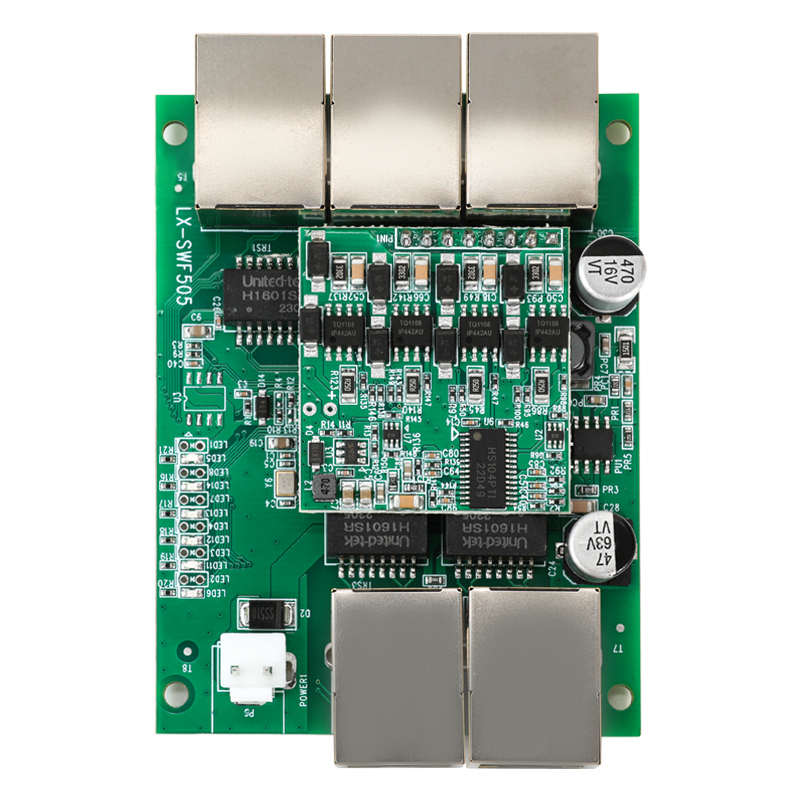

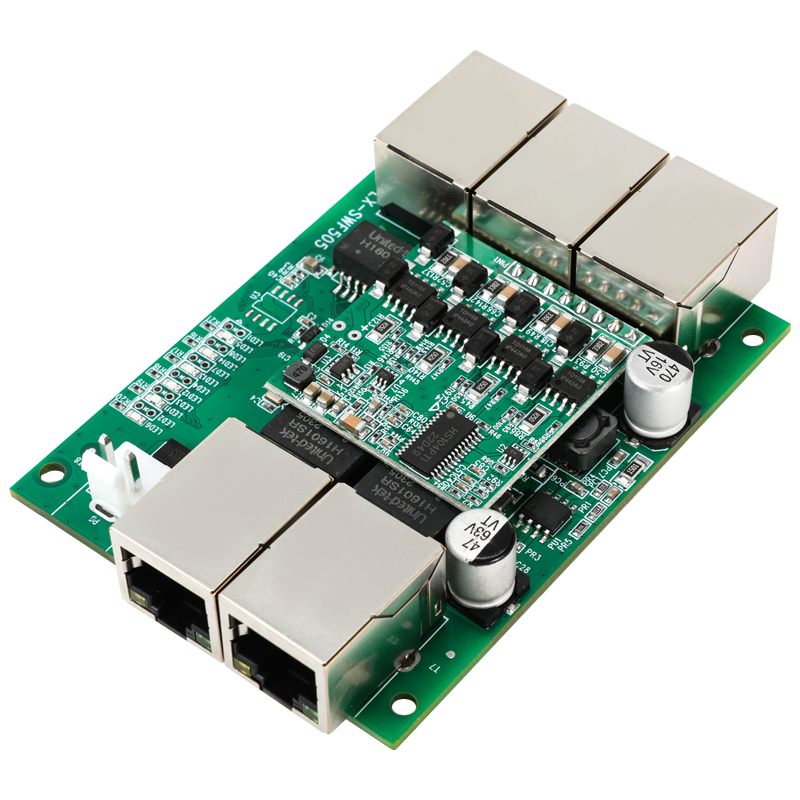

| LX-SWF505-1B |
Horizontal RJ45 |
Panel hole mounting |
Dense cabling in industrial control cabinets |

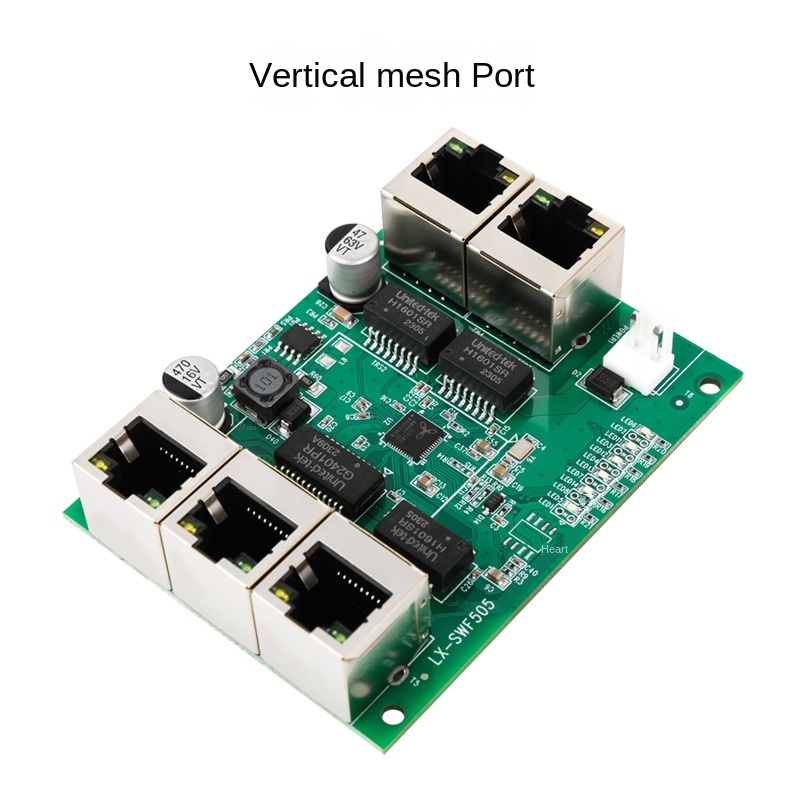

| LX-SWF505-1C |
Vertical RJ45 |
Vertical plug-in |
Space-constrained AGV/robot bodies |
Industrial-Grade Performance Guarantees

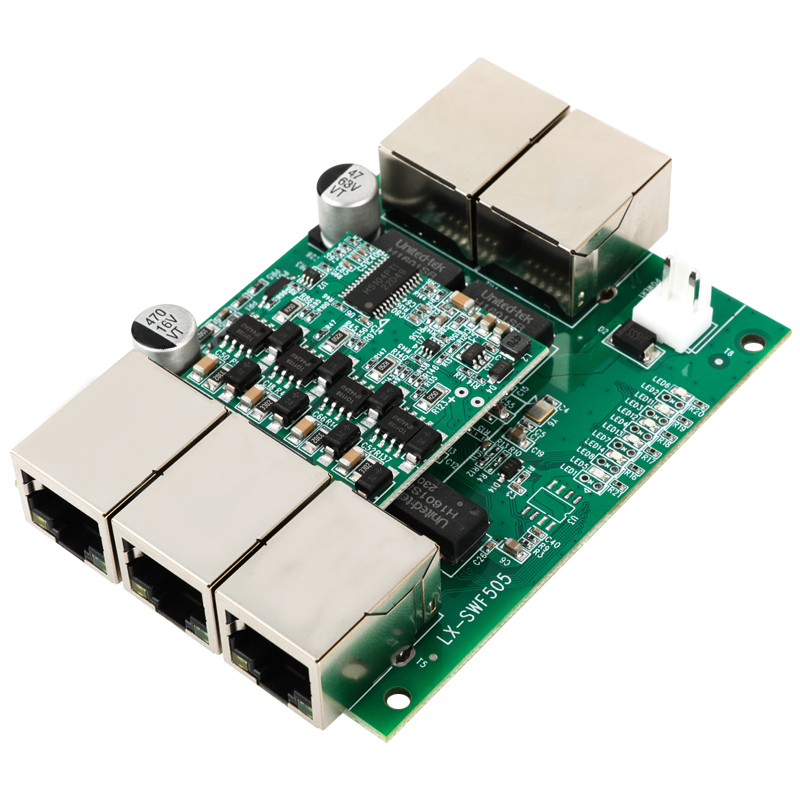

✅ PoE Power Supply Capability: Complies with IEEE 802.3af/at standards, with 15.4W output per port and 60W total output for the entire device (UL 60950 certified).
✅ Environmental Tolerance: Cold start at -40°C to continuous operation at 75°C (GB/T 2423.1/2), with support for 5% salt spray corrosion resistance (GB/T 10125).
✅ Network Reliability: Non-blocking switching architecture + broadcast storm suppression, with throughput ≥99.8% (tested according to RFC 2544).
🏭 Three Domestication-Oriented Scenario Solutions
Smart Security Surveillance Networks
- Directly connect IPC cameras via PoE power supply, reducing power cabling by 60%.
- The vertical RJ45 model can be embedded in NVR devices, supporting zero-packet-loss transmission of 64-channel H.265 video streams (compliant with GA/T 1127 security standards).
Edge Nodes in Industrial Internet of Things
- The XH2.54mm model can be directly soldered onto PLC backplanes to power RS485-to-Ethernet gateways (compatible with Modbus TCP protocol).
- The wide-temperature design ensures stable operation in -25°C refrigerated storage environments (compliant with GB/T 34590 automotive-grade vibration testing).
Communication in New Energy Power Stations
- The horizontal RJ45 model can be used to establish monitoring networks for photovoltaic combiner boxes, supporting direct DC 48V connections (without AC/DC conversion losses).
- Domestic chips can withstand 10kV/μs electromagnetic pulses (GB/T 17626.4), adapting to high-frequency interference environments from inverters.
