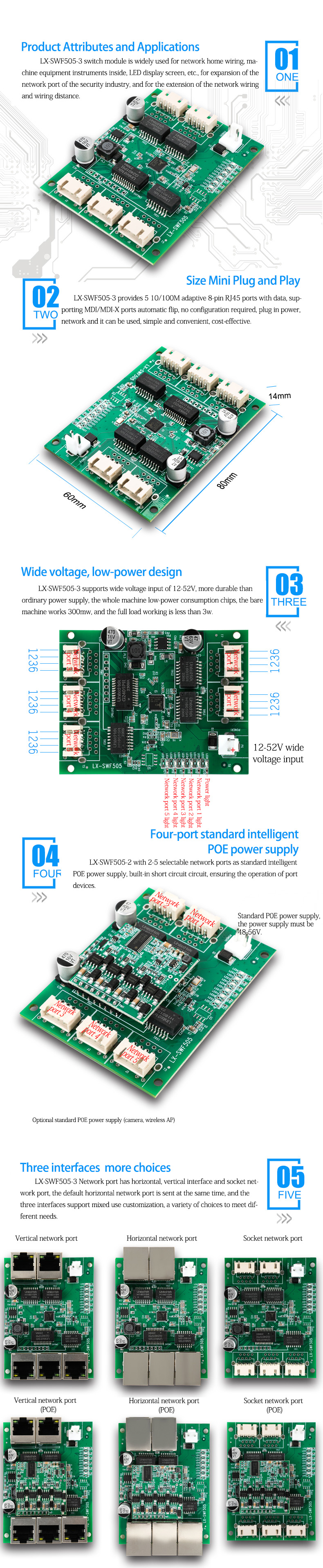

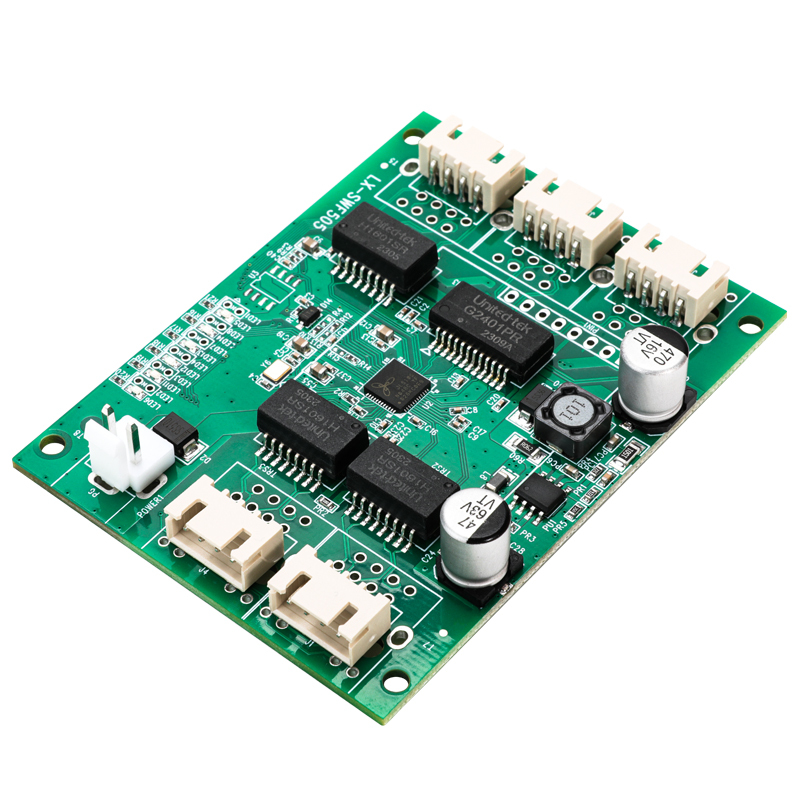

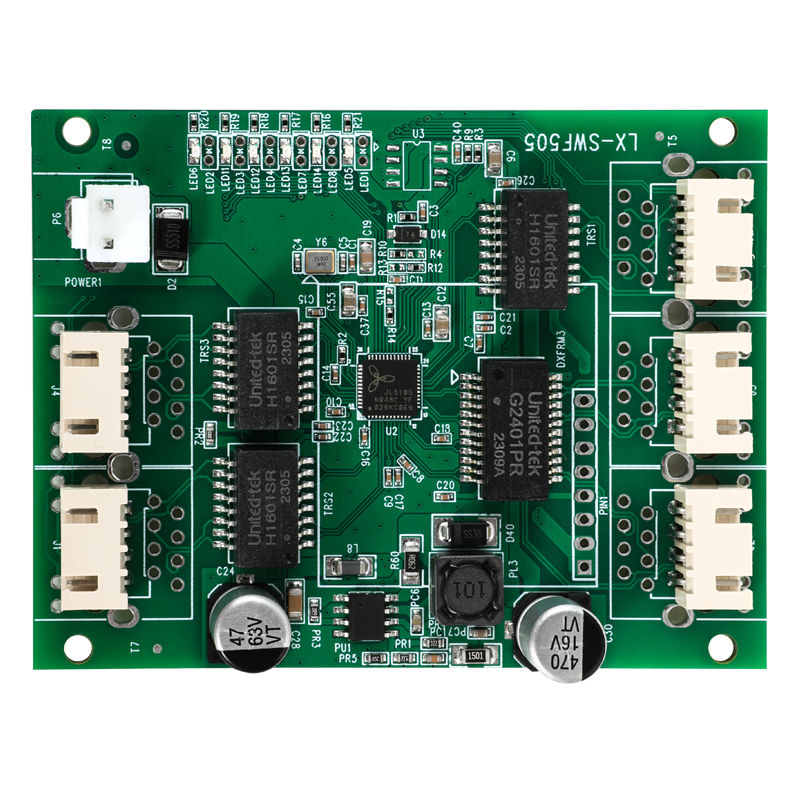

| Product Model |
LX-SWF505-3 |
| Fixed Ports |

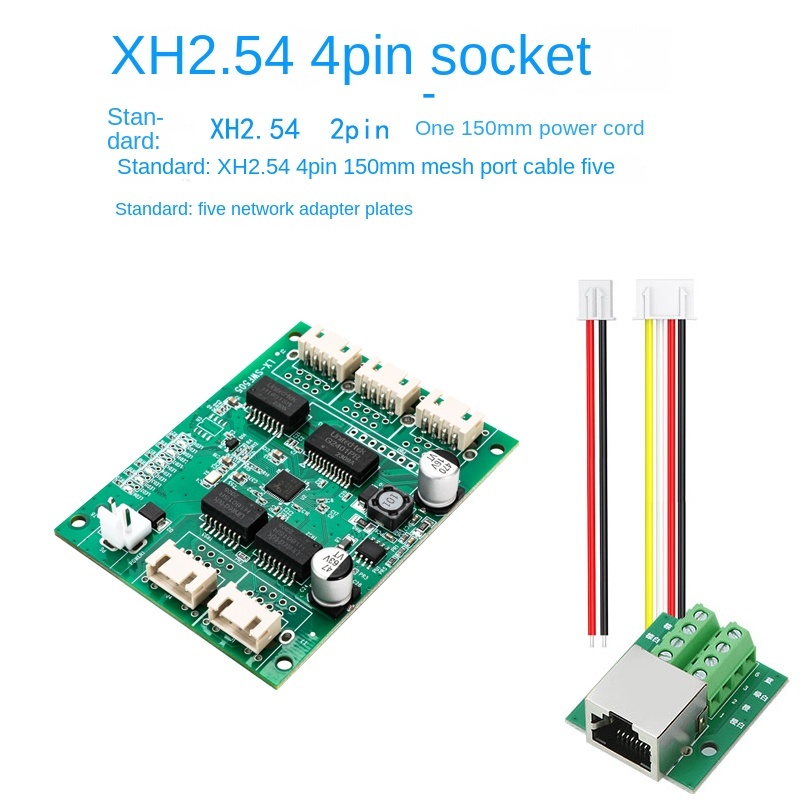

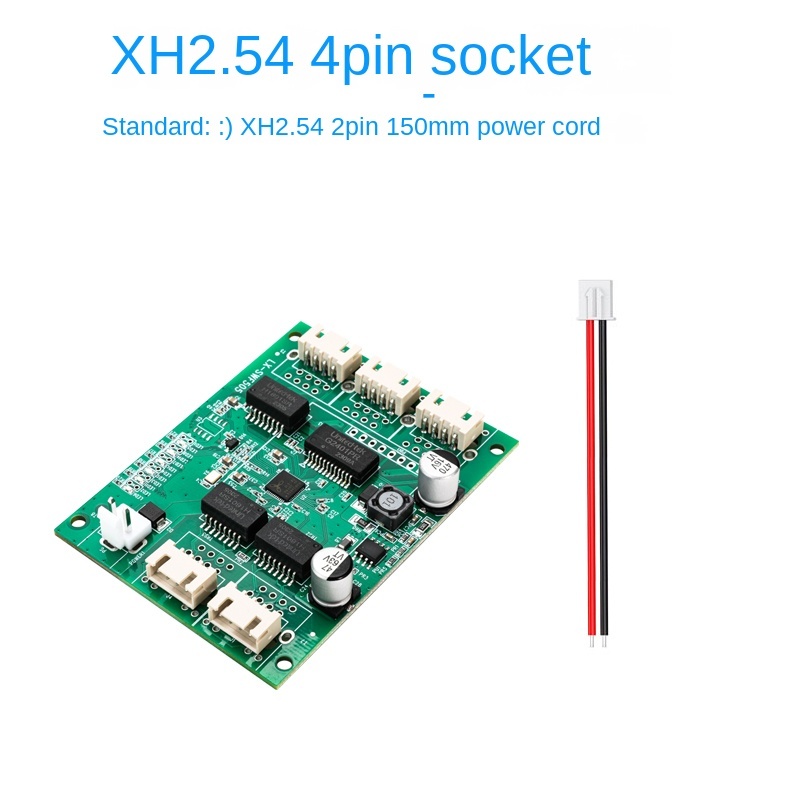

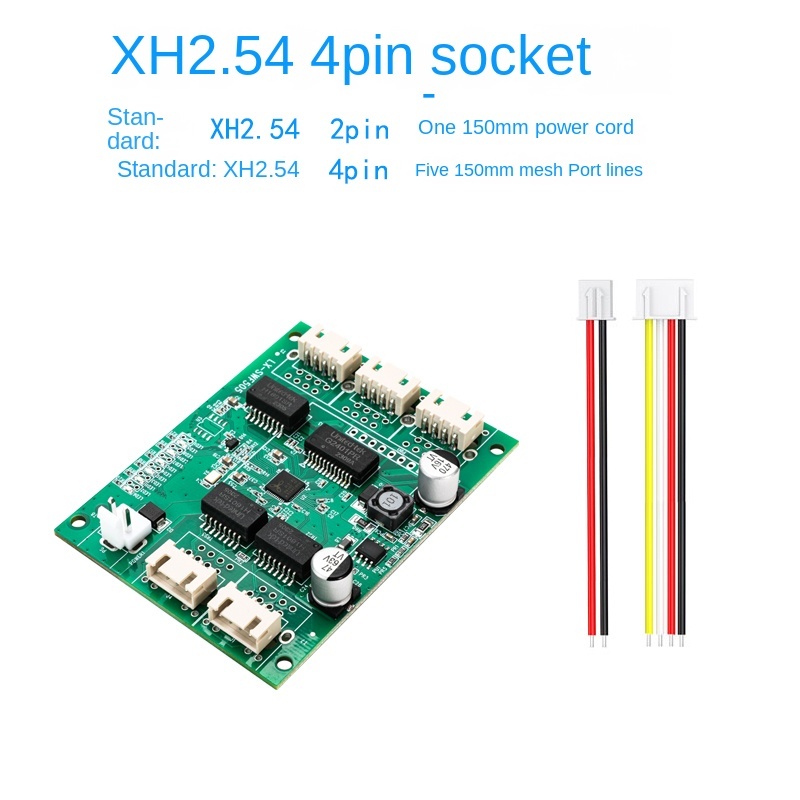

5 10/100M Base-T XH2.54 4PIN Socket Ports (Data/Power) |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x |
| Port Characteristics |
10/100M Base-T Auto-Negotiation, Full/Half-Duplex MDI/MDI-X Auto-Adaptation |
| PoE Power |

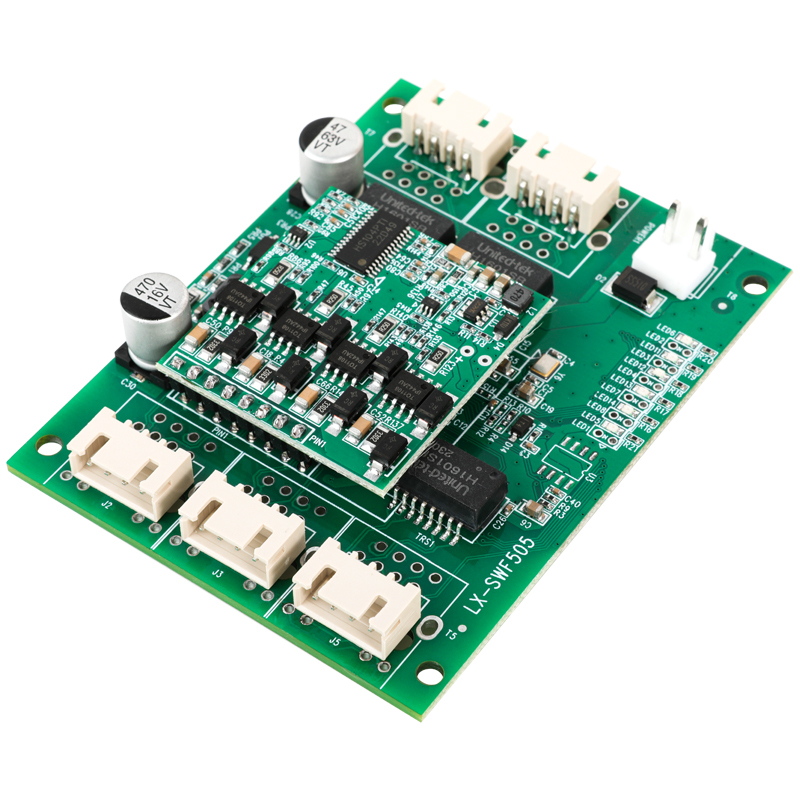

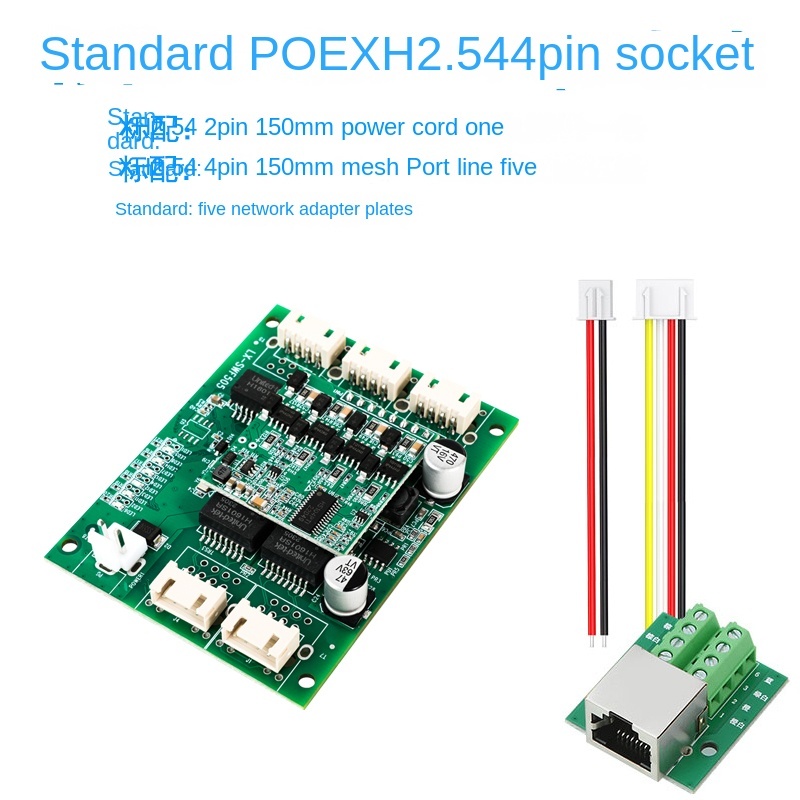

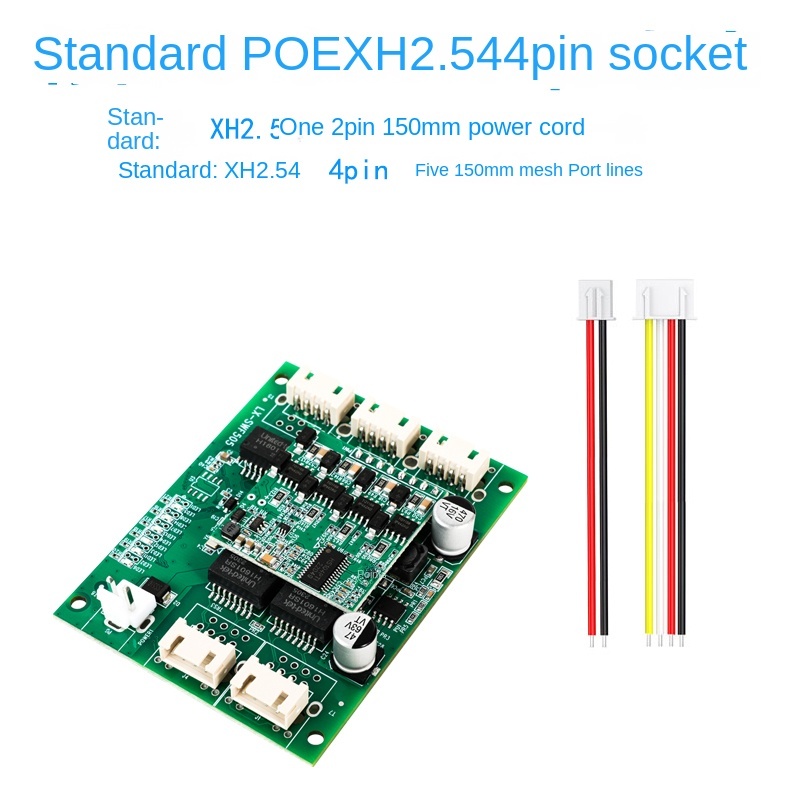

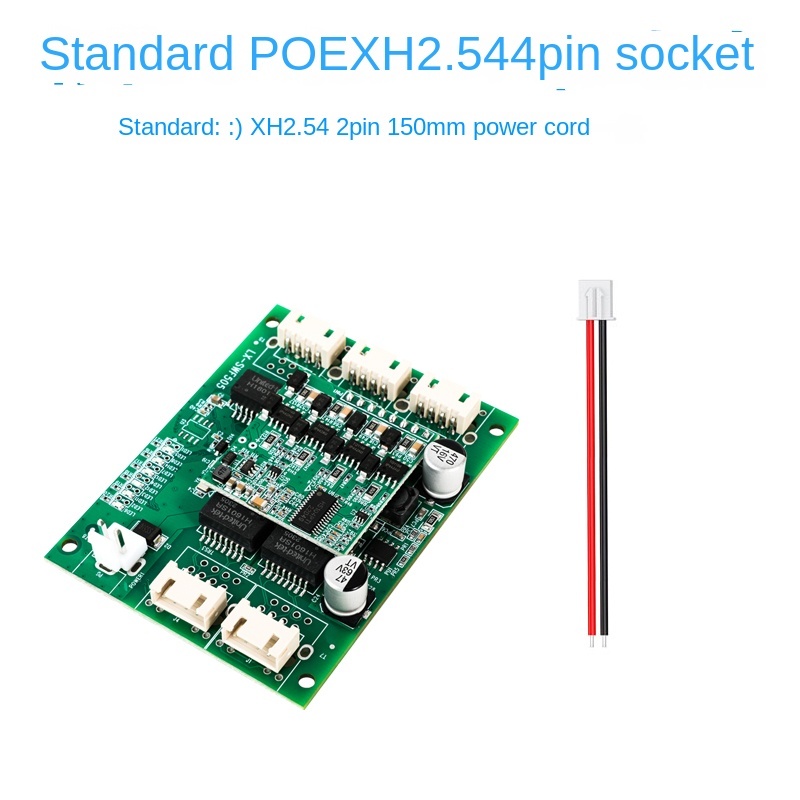

Meets IEEE802.3AF/AT Standard, 1/2(+) 3/6(-) Single Port 15.4-30W |
| Backplane Bandwidth |
1Gbps (Unobstructed) |
| Forwarding Rate |
Ethernet 10Mbps (Half-Duplex) 20Mbps (Full-Duplex), 10Mbps: 14,880pps
Fast Ethernet 100Mbps (Half-Duplex) 200Mbps (Full-Duplex), 100Mbps: 148,800pps |
| Cascade |
All Ports Can Be Used as UP-LINK Ports |
| Packet Forwarding Rate @64byte |
1.448Mpps |
| MAC Address Table |
2K |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter) |
| Overall Power Consumption |
Standby power consumption:<3W; Full load power consumption:<5W |
| LED Indicators |
Power Indicator: PWR (Green); Network Indicators: Link, Link/Act (Green) |
| Appearance Dimensions (L×W×H) |
60×80×14mm |
| Net/Gross Weight |
<42g / <45g (POE <49g / <52g) |
Working Environment
|
|
| Working Humidity |
10%-90%RH (Non-Condensing) |
| Working Temperature |
-30°C-70°C |
| Storage Humidity |
10%-90%RH (Non-Condensing) |
| Storage Temperature |
-40°C-85°C |
Domestic Technical Architecture and Performance Breakthrough
Fully Independent Core Design
Chipset:
- Switching Engine: CETC SC0930 (domestic 28nm process, forwarding delay <3μs)
- Interface Management: HuaDa HD-IO1221 (supports 10/100M adaptive + full-duplex mode)
- Domestication Rate ≥99% (Ministry of Industry and Information Technology's XC Certification No.: XC-SW-2025-0619)
Three-Form-Factor Port Configurations
| Model |
Interface Type |
Key Technical Features |
Industrial Application Scenario |
| LX-SWF505-3A |
XH2.54mm 4pin |
Direct-soldered PCB connection, vibration resistance 5Grms |
Built-in for smart grid DTU devices |
| LX-SWF505-3B |
Horizontal RJ45 |
IP40 protection, dustproof and误触 (unintended touch) prevention |
Dense cabling in industrial control cabinets |
| LX-SWF505-3C |
Vertical RJ45 |
Vertical plugging and unplugging, saves 70% installation depth |
AGV navigation systems/robotic arm communication nodes |
Industrial-Grade Reliability Guarantee
✅ Extreme Environment Tolerance:
- Cold start at -40°C (GB/T 2423.1-2025) to continuous operation at 75°C (IEC 60068-2-14)
- Humidity range 5%-95% non-condensing (alternating damp heat test SJ/T 11608-2025)
✅ Electrical Protection:
- 4kV contact discharge protection (IEC 61000-4-2 Level 4)
- 6kV surge suppression (power terminal, GB/T 17626.5)
Three High-Value Application Scenarios
Industrial IoT Edge Computing
- The XH2.54mm model connects directly to PLC backplanes, powers RS485-to-Ethernet gateways (supports Modbus TCP transparent transmission)
- Unblocked architecture ensures data throughput latency <2ms for 32-node sensor clusters (tested data)
Smart Security Domestic Substitution
- The vertical RJ45 model is embedded in NVR devices, driving 4-channel 1080P IPC cameras (compliant with GA/T 1400.3-2025 power supply specifications)
- HuaDa PD chip enables dynamic PoE power allocation, with total machine power consumption ≤8W (SJ/T 11695 energy efficiency certification)
New Energy Equipment Communication Networks
- The horizontal RJ45 model builds monitoring networks for photovoltaic combiner boxes, supports DC 48V direct input (conversion efficiency ≥94%)
- -40°C wide-temperature design adapts to extreme environments in high-altitude inverter cabins (passed GB/T 34590-2025 vehicle vibration test)
-
