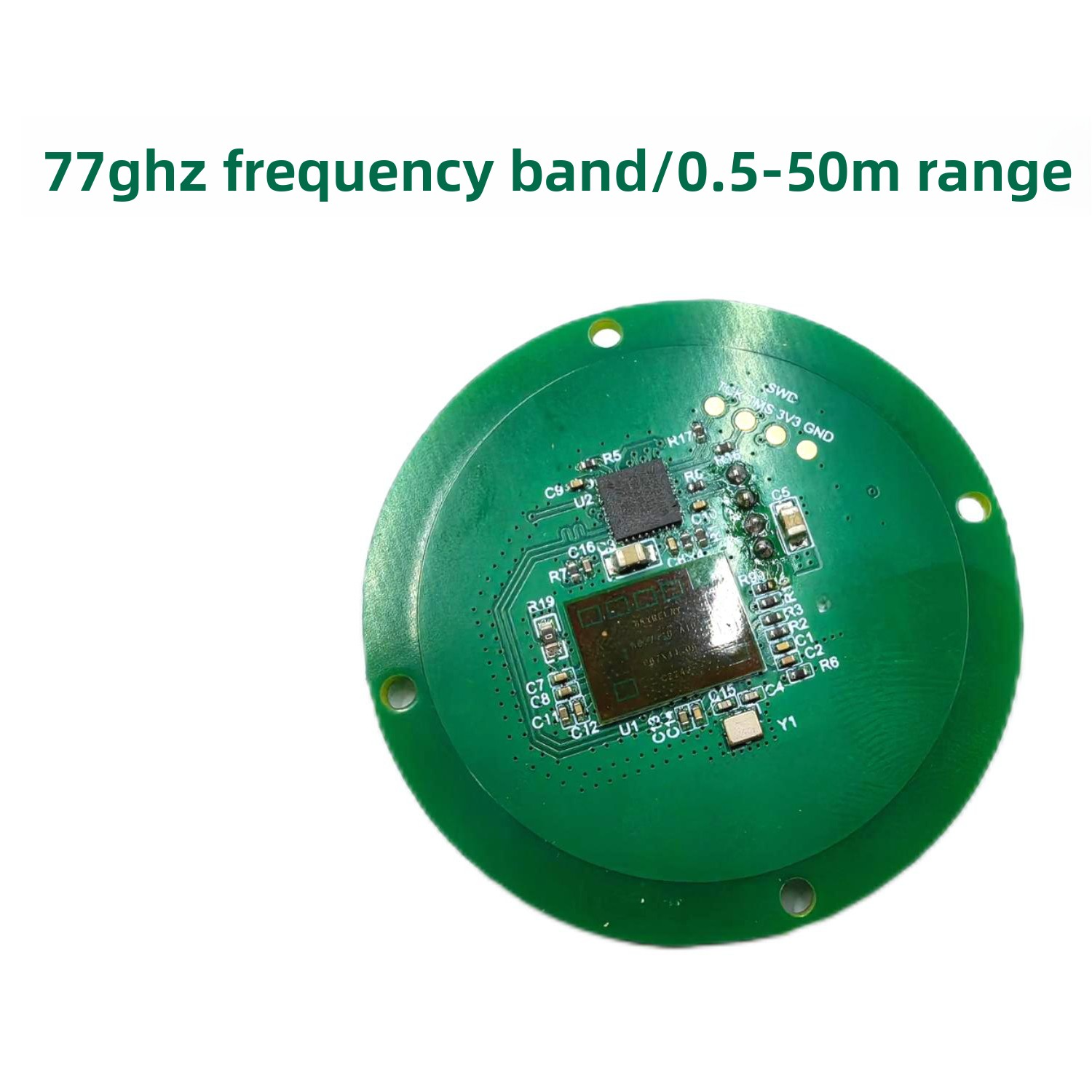

77G Radar Liquid Level Detection Sensor 7701-AIP: Low-Power Water Level Monitoring with Long-Range and High Precision, Detection Distance Up to 50 Meters

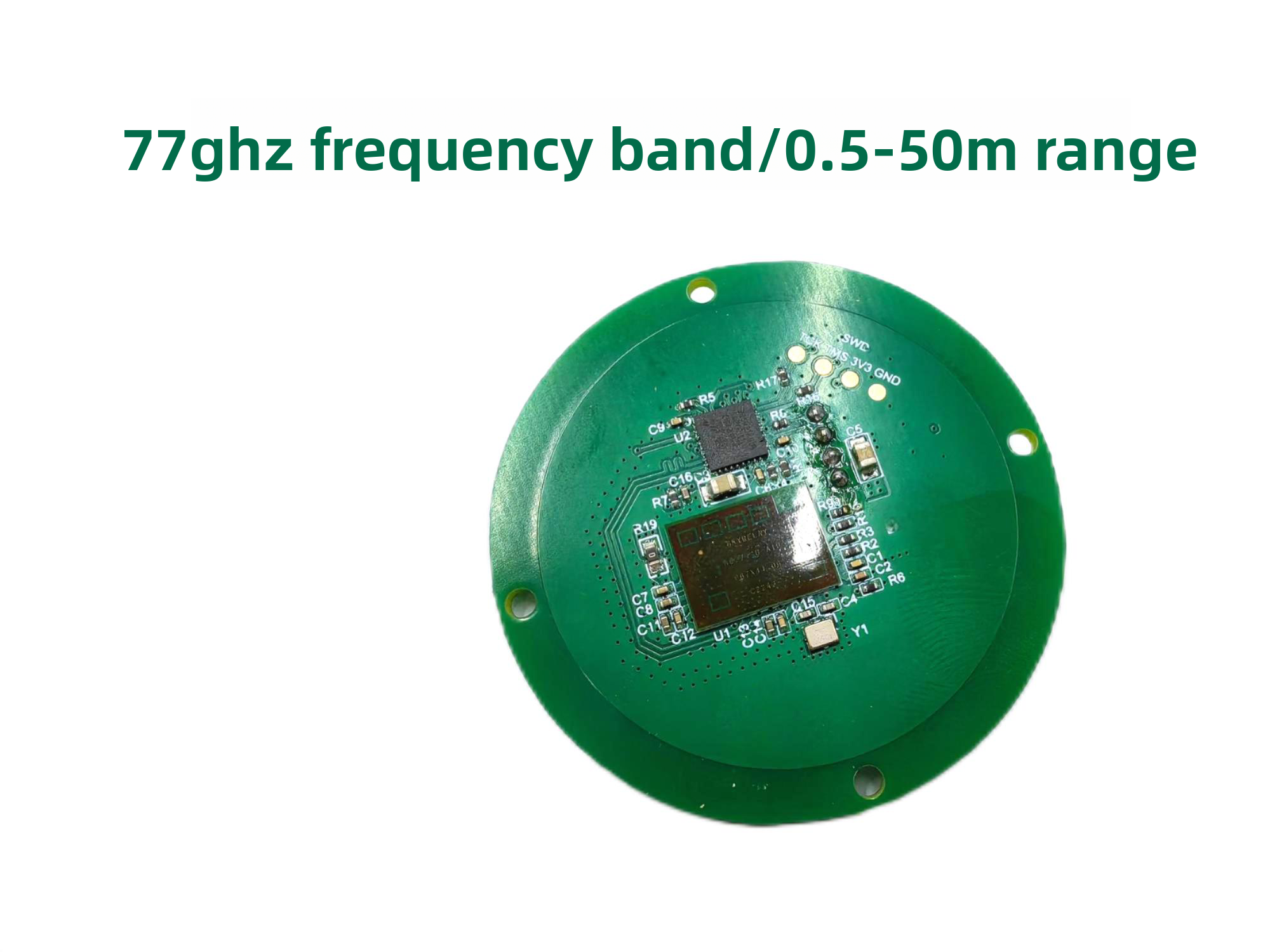

The 7701-AIP is a liquid level detection sensor based on 77GHz millimeter-wave radar technology, specifically designed for water level monitoring. It offers core advantages such as low power consumption, long-range detection, and high precision. With a detection distance of up to 50 meters, it can cover a wide range of water level monitoring scenarios, including reservoirs, rivers, irrigation areas, and urban drainage systems.

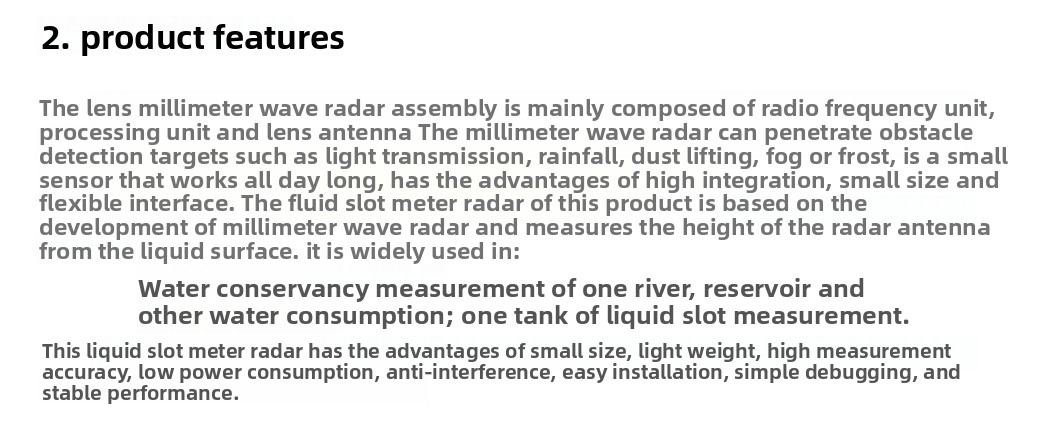

Product Features

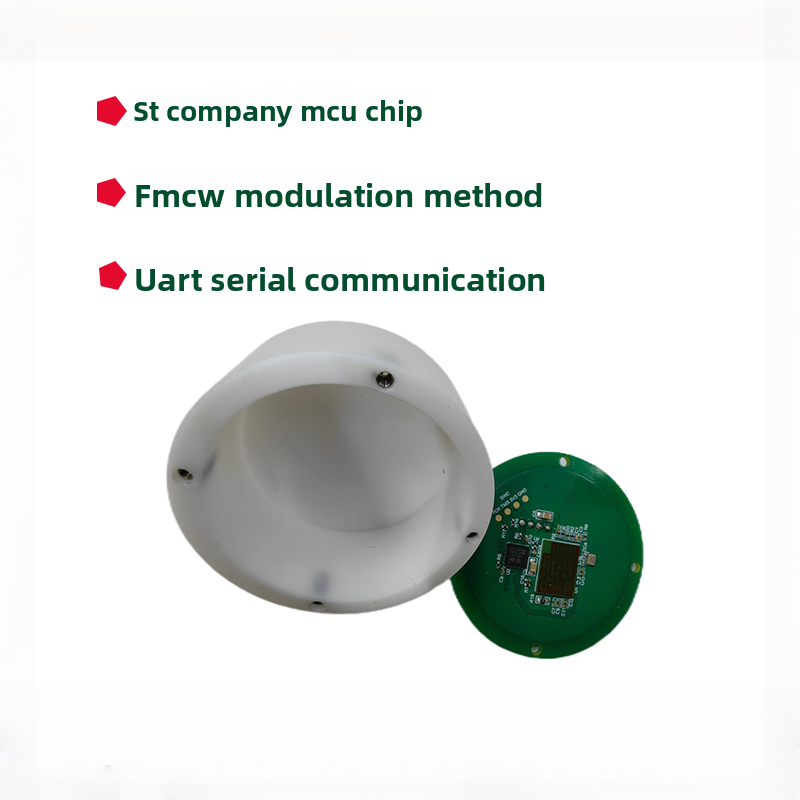

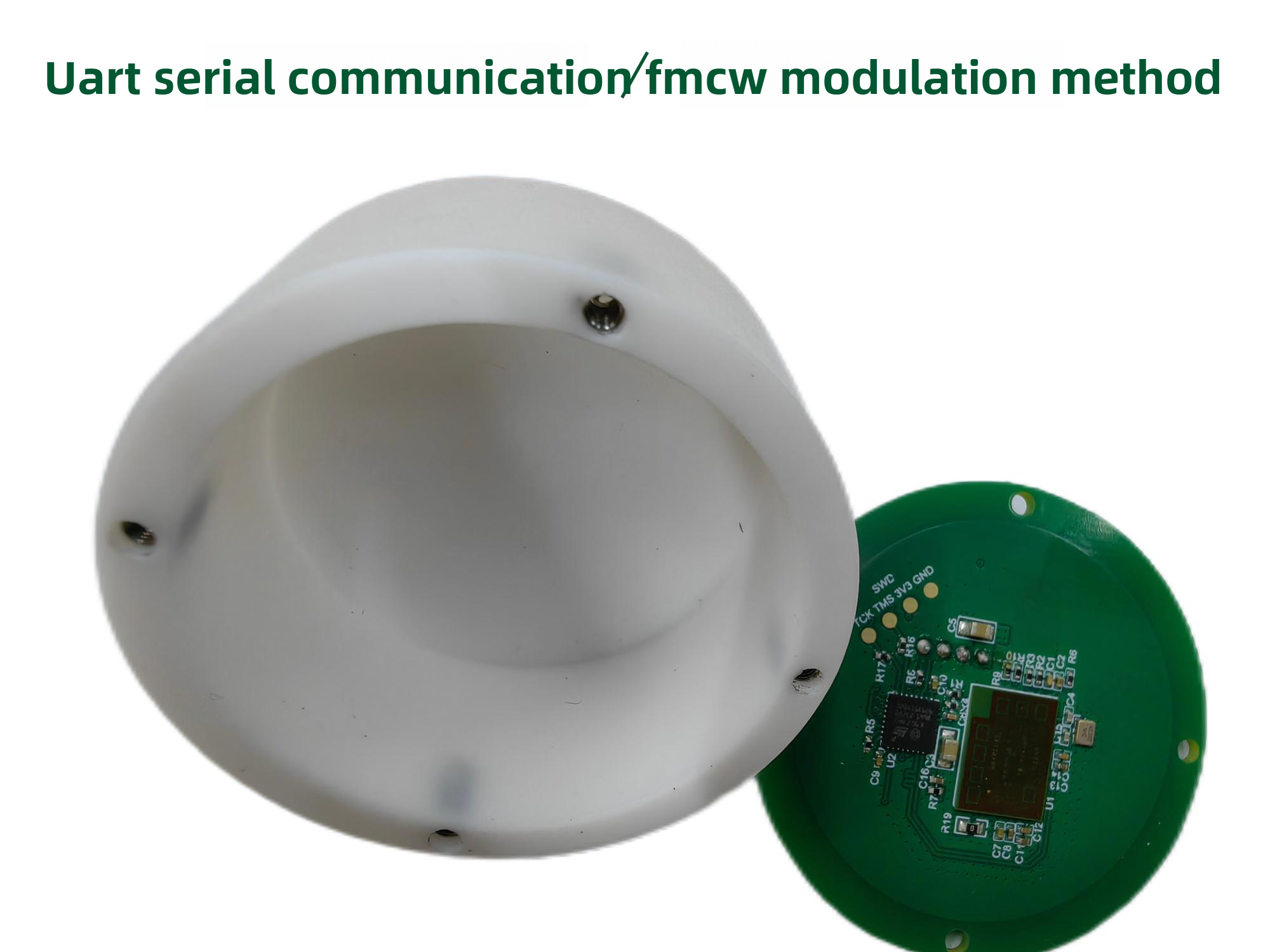

- High Precision: Utilizing Frequency-Modulated Continuous Wave (FMCW) modulation and 77GHz high-frequency radar technology, it achieves millimeter-level measurement accuracy, ensuring the reliability of water level data.
- Low Power Consumption: Designed for extended continuous monitoring with minimal average power usage, reducing maintenance costs.

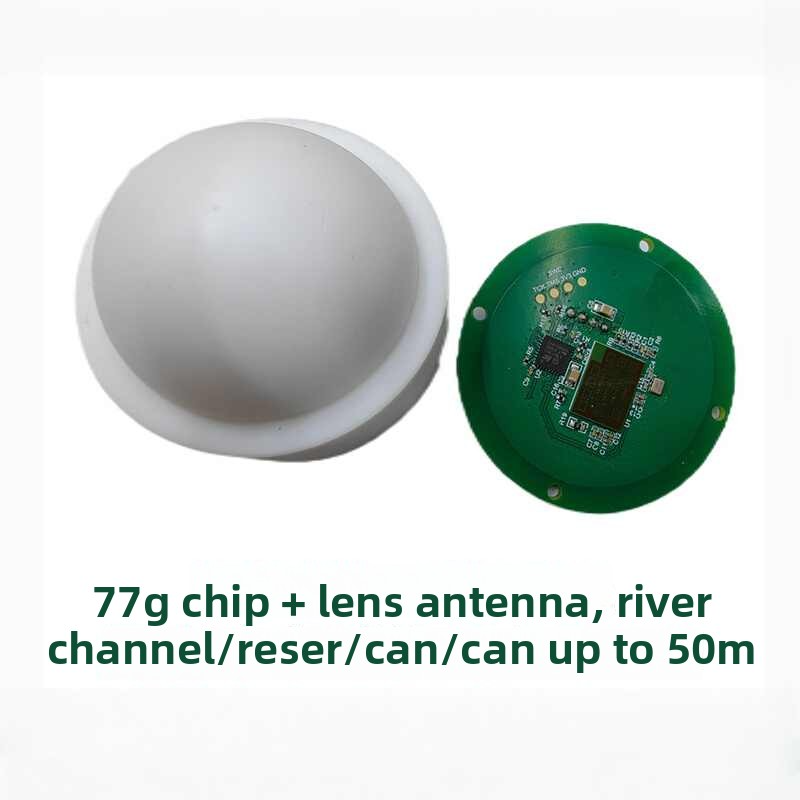

- Long-Range Detection: Capable of detecting water levels up to 50 meters away, meeting the needs of large-scale water level monitoring.
- Strong Anti-Interference Capability: Unaffected by temperature, sediment, river pollutants, floating debris, and other factors, ensuring measurement stability.
- Easy Installation: Non-contact measurement eliminates the need for direct liquid contact, avoiding wear issues associated with traditional sensors and enabling quick and easy installation.

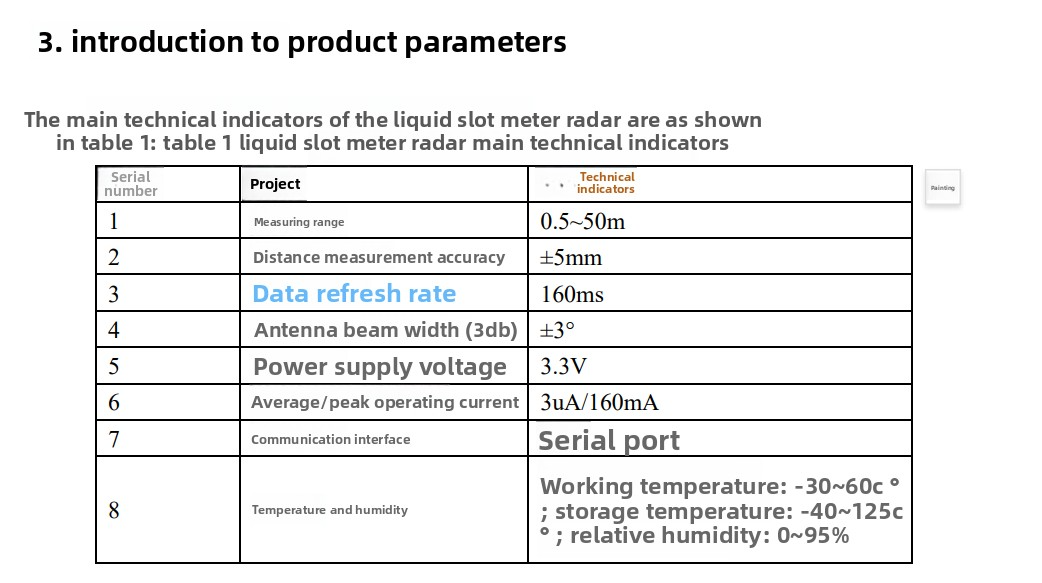

Technical Parameter Comparison
| Parameter |
7701-AIP 77GHz |
Traditional 24GHz Radar Sensors |

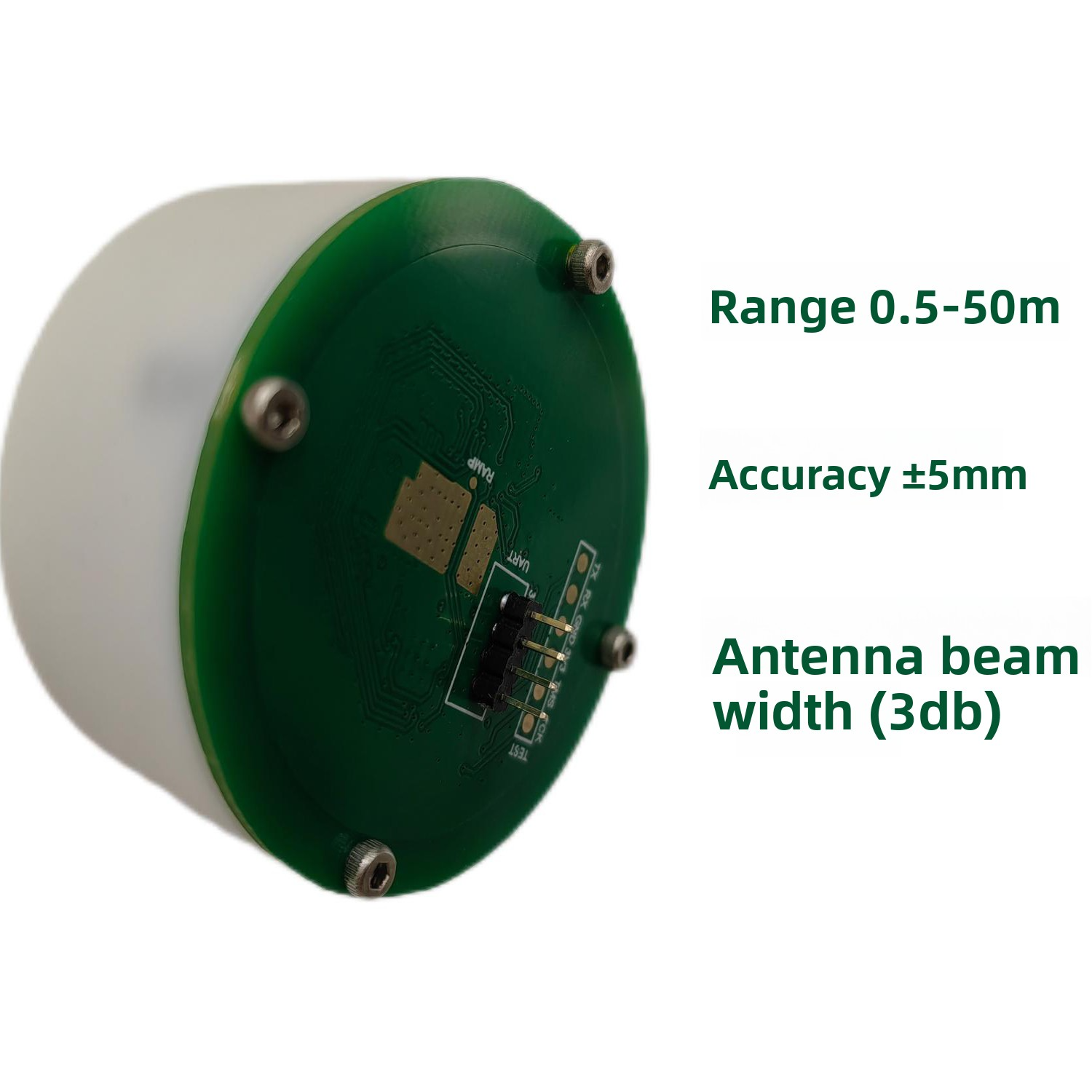

| Detection Range |
1–50m (adjustable) |
≤30m (highly affected by environment) |
| Measurement Accuracy |
±1mm |
≥5mm |
| Power Consumption |
Low-power design |
Higher power consumption |
| Anti-Interference Capability |
Strong |
Weak |
