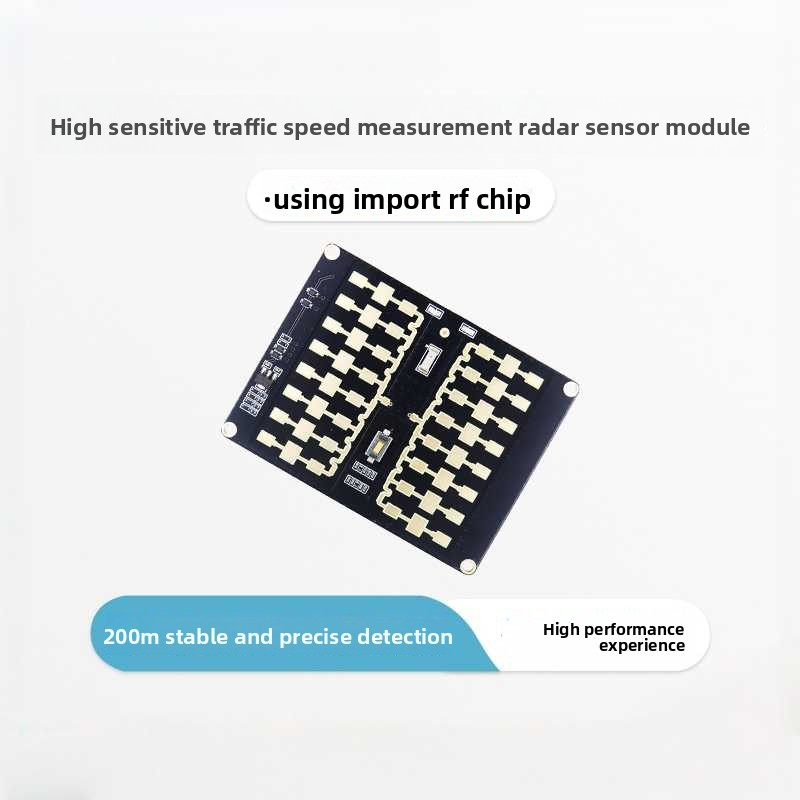

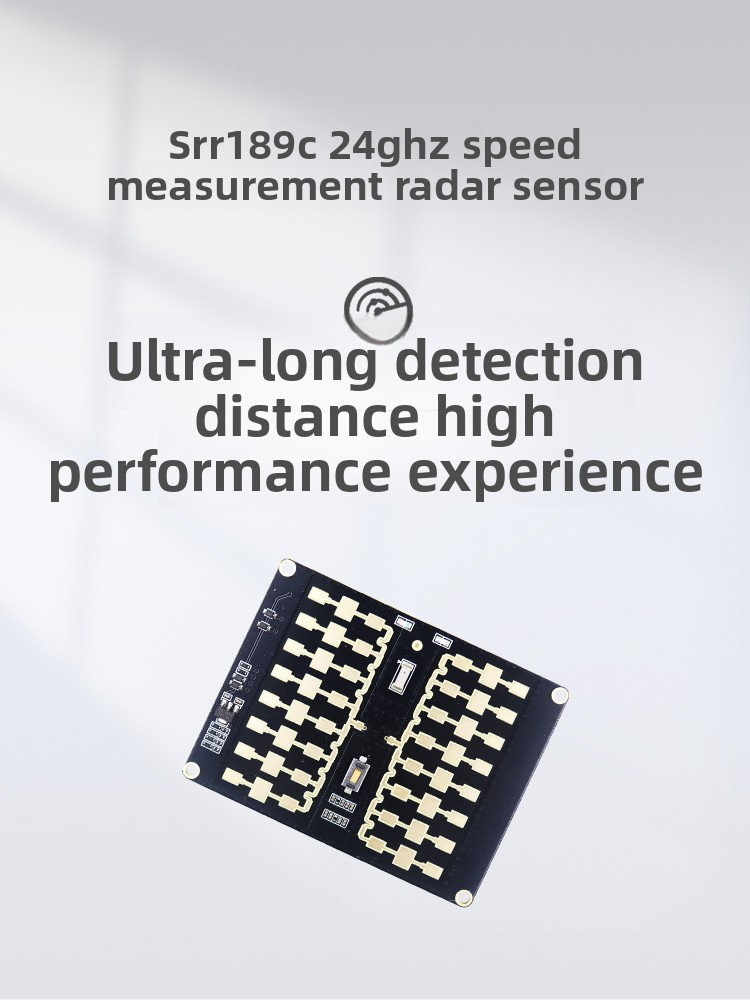

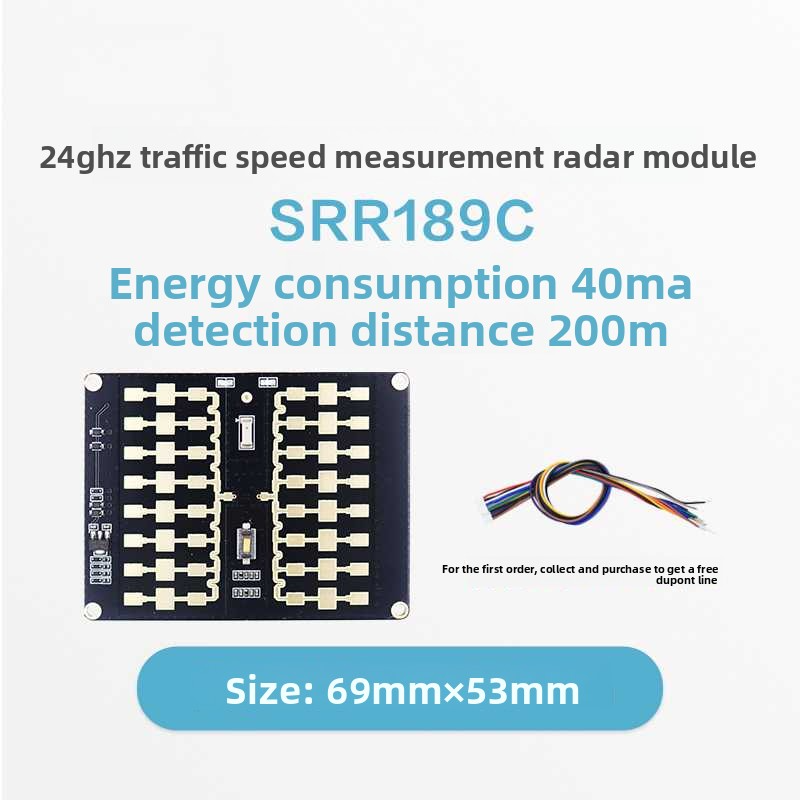

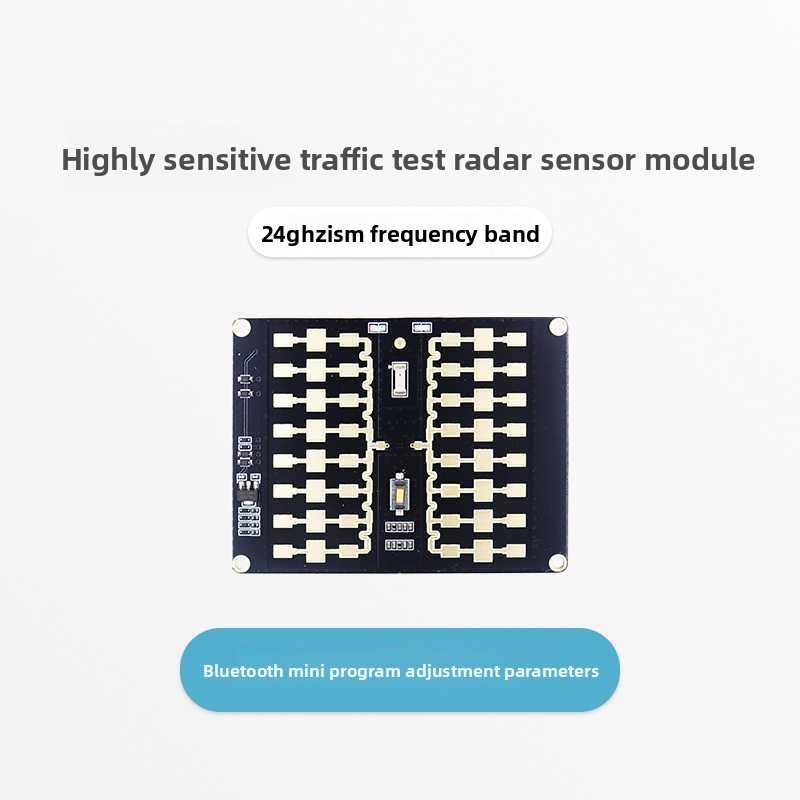

24G Millimeter-Wave Radar Sensing Module SRR189C: Long-Range Road Speed Measurement Sensor Module with 200-Meter Precision Detection

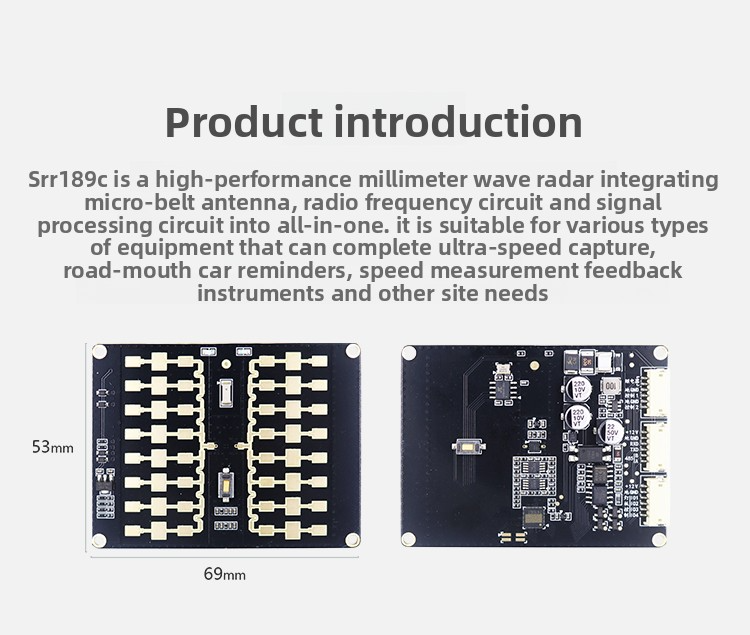

The SRR189C is a dedicated 24GHz millimeter-wave radar sensing module designed for road traffic applications, offering precise speed and distance measurement capabilities with a detection range of up to 200 meters. Utilizing Frequency-Modulated Continuous Wave (FMCW) technology combined with advanced signal processing algorithms, it achieves ±1km/h speed measurement accuracy and ±0.5m range resolution, effectively addressing complex traffic environments.
Technical Parameter Comparison
| Parameter |
SRR189C 24GHz |
Traditional Laser Speed Guns |
| Detection Range |
1–200m (adjustable) |
≤100m (highly affected by weather) |
| Speed Measurement Accuracy |
±1km/h |
±2km/h |
| Range Resolution |
0.5m |
≥1m |
| Power Consumption |
70mA (12V power supply) |
≥100mA |
| Interface Types |
RS485/UART multi-interface |
Single analog signal output |
Application Scenarios
- Traffic Enforcement: Accurately captures speeding vehicles, supporting 24/7 operation unaffected by rain, snow, fog, or other adverse weather conditions.
- Intelligent Speed Limiting: Integrates with variable message signs to display real-time speed limits for upcoming road sections, enhancing driving safety.
- Traffic Flow Monitoring: Collects vehicle flow data to optimize traffic signal timing and alleviate urban congestion.
By leveraging the interference resistance and high precision of millimeter-wave radar, the SRR189C overcomes the limitations of traditional sensors, providing a cost-effective, highly reliable perception solution for road traffic management and advancing the upgrade of smart city and intelligent transportation systems.
