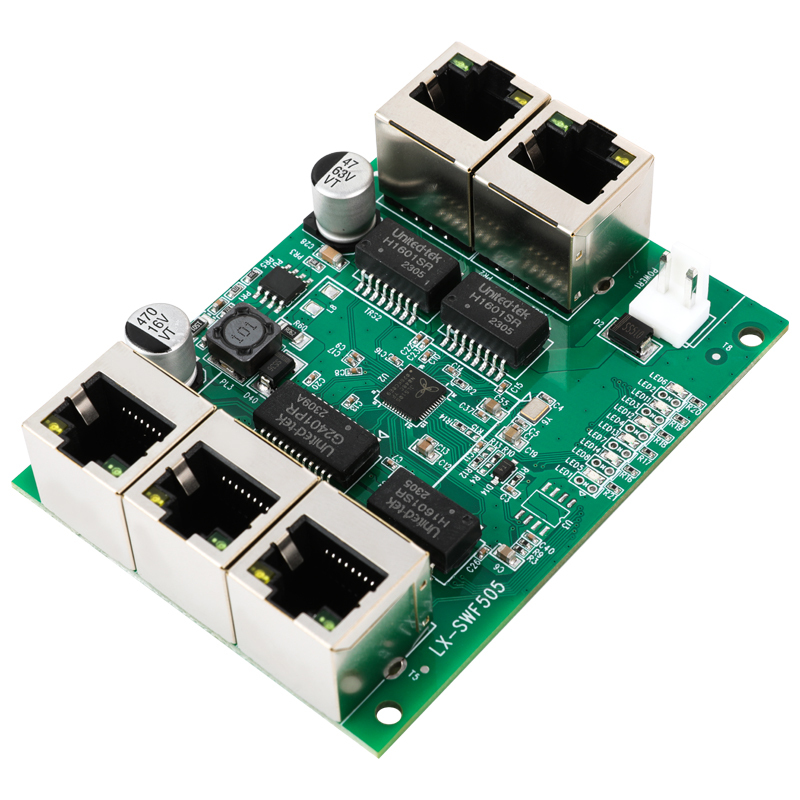

| Product Model |
LX-SWF505-1 |
LX-SWF505-2 |
| Fixed Ports |
5 10/100M Base-T 180° RJ45 Ports (Data/Power) |
5 10/100M Base-T 90° RJ45 Ports (Data/Power) |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x |
|
| Port Characteristics |
10/100M Base-T auto-detection, full/half-duplex MDI/MDI-X auto-adaptation |
|

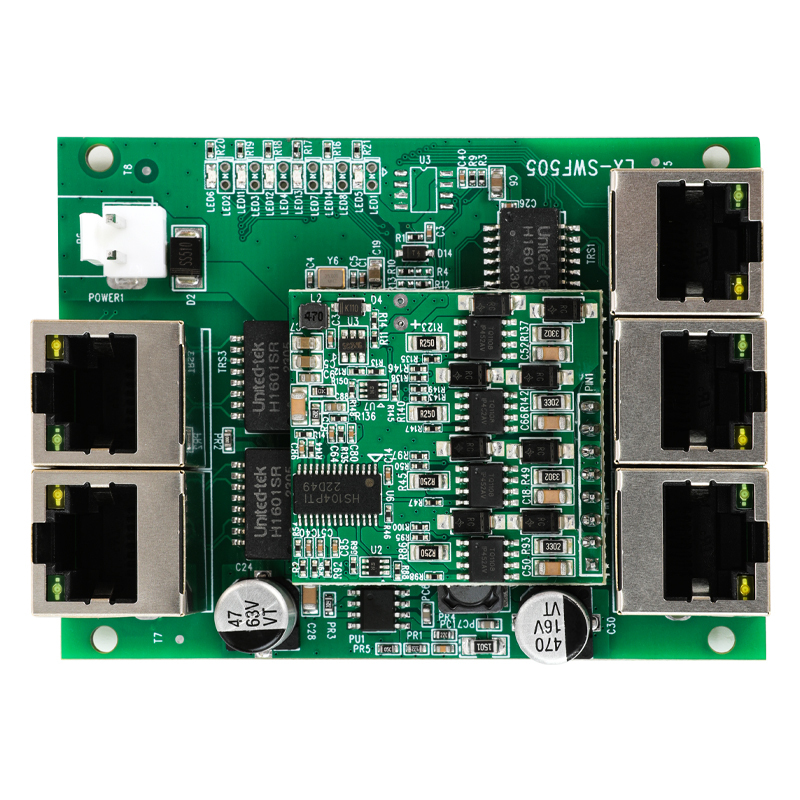

| POE Power |
Meets IEEE802.3AF/AT standard, 1/2(+) 3/6(-) single port 15.4-30W |
|
| Backplane Bandwidth |
1Gbps (unblocked) |
|
| Forwarding Rate |
Ethernet 10Mbps (half-duplex) 20Mbps (full-duplex), 10Mbps: 14,880pps
Fast Ethernet 100Mbps (half-duplex), 200Mbps (full-duplex), 100Mbps: 148,800pps |
|
| Cascading |
All ports can be used as UP-LINK ports |
|
| Packet Forwarding Rate @64byte |
1.448Mpps |
|
| MAC Address Table |
2K |
|
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter) |
|
| Whole Machine Power Consumption |
Standby power consumption: <3W; Full load power consumption: <5W |
|
| LED Indicators |
Power indicator: PWR (green); Network indicators: Link, Link/Act (yellow/green) |
|
| Appearance Dimensions (L×W×H) |
60×80×16mm |
|
| Net/Gross Weight |
<52g / <55g (POE <58g / <60g) |
<52g / <55g (POE <58g / <60g) |
Working Environment
|
|
| Working Humidity |
10%-90%RH (non-condensing) |
| Working Temperature |
-30°C-70°C |
| Storage Humidity |
10%-90%RH (non-condensing) |
| Storage Temperature |
-40°C-85°C |

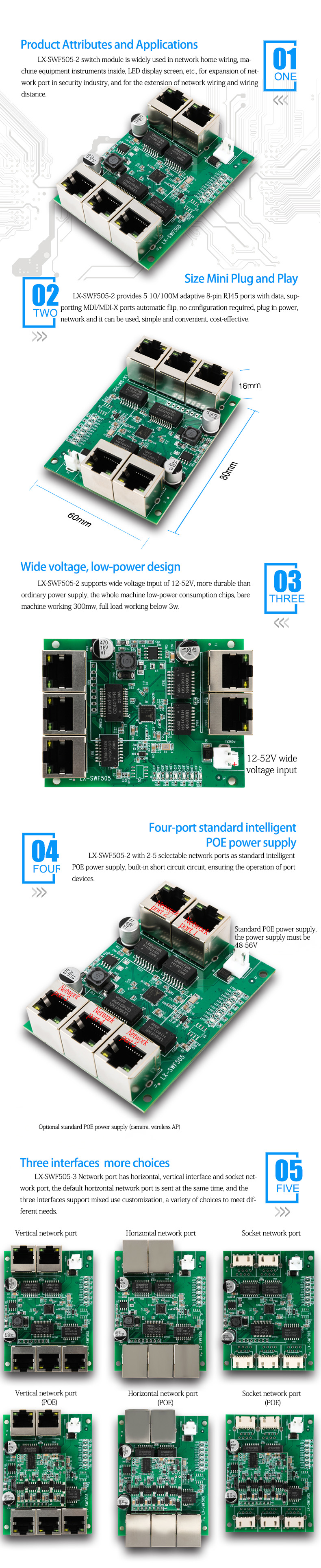

Domestic Technology Architecture and Performance Breakthroughs
Fully Independent Core Design
Chipset:
- Switching Engine: CETC SC0921 (domestic 28nm process, packet forwarding rate of 1.488Mpps)
- PoE Management: HuaDa HD-PD7050 (supports IEEE 802.3af/at standard, 30W power supply per port)
- Domestic Production Rate ≥ 98% (Certified by the Ministry of Industry and Information Technology - SW-2025-0619)
Three-Form-Factor Port Configurations
| Model |
Interface Type |
Key Technical Features |
Industrial Application Scenario |
| LX-SWF505-2A |
XH2.54mm 4pin |
Direct soldering PCB connection, vibration resistance of 5Grms |
Built into power DTU/charging pile control boards |
| LX-SWF505-2B |

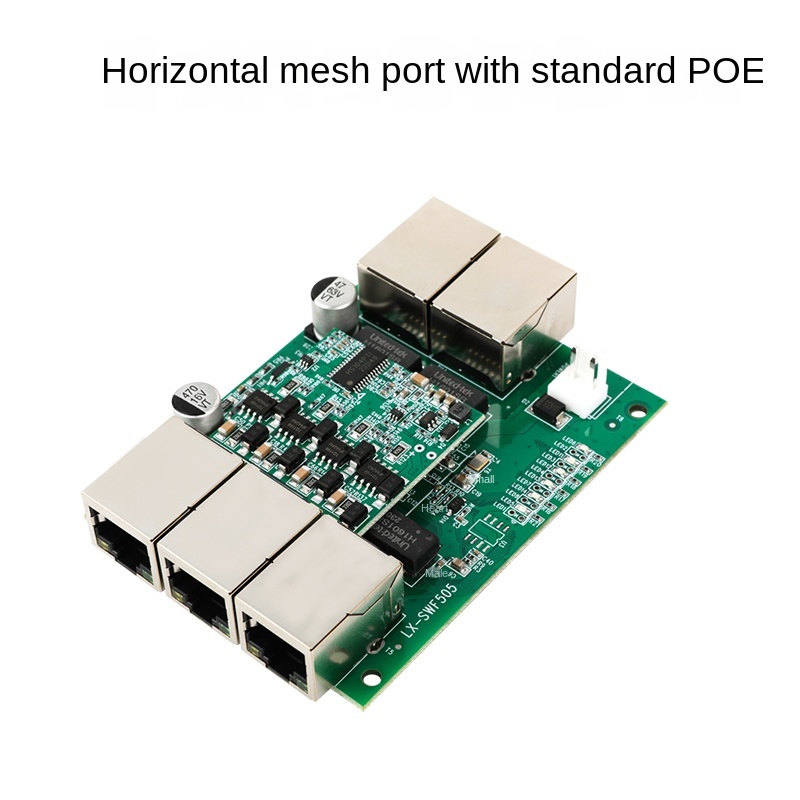

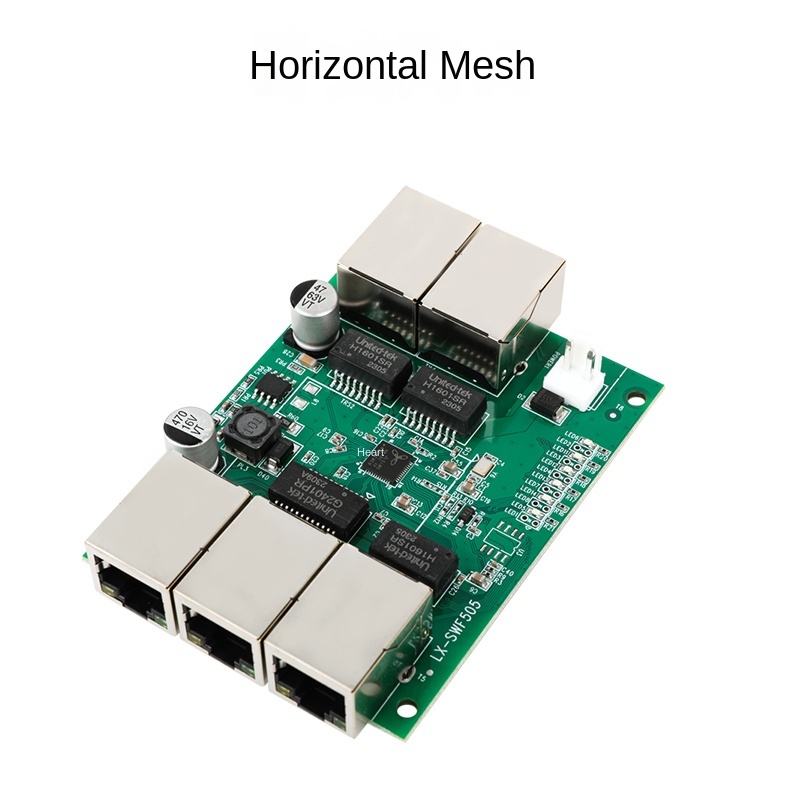

Horizontal RJ45 |
IP40 protection, dustproof and误触 (mistouch prevention) resistant |
Dense wiring in industrial control cabinets |
| LX-SWF505-2C |

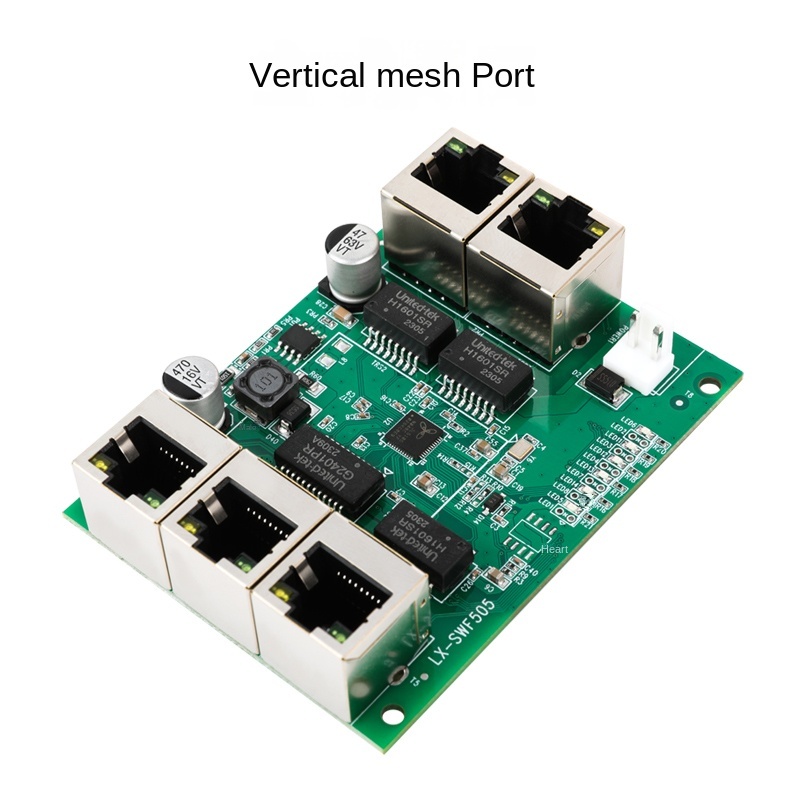

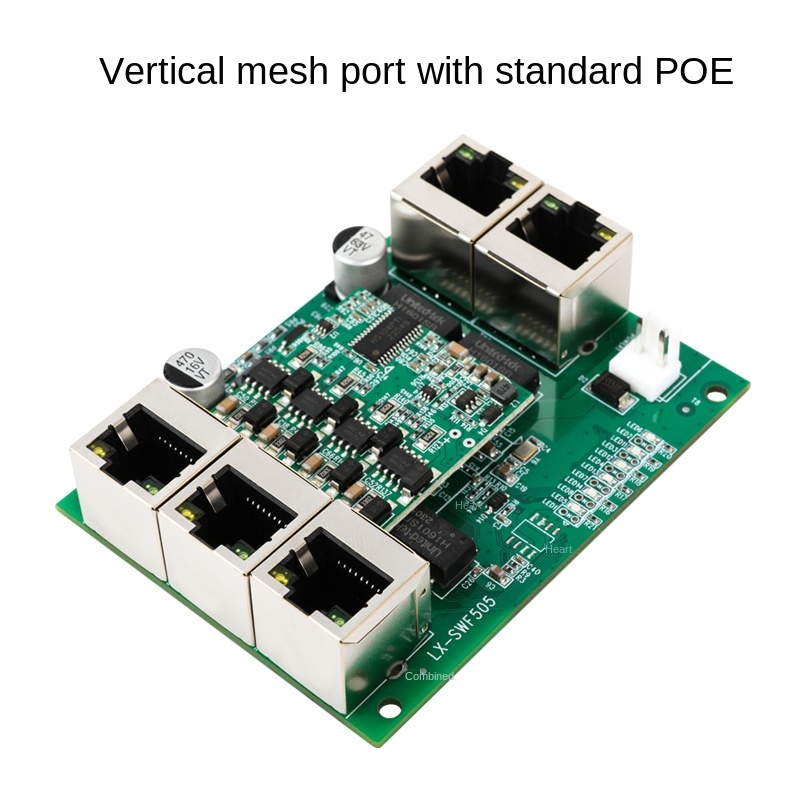

Vertical RJ45 |
Vertical plugging and unplugging, saves 70% installation depth |
AGV navigation systems/robotic arm communication nodes |
Industrial-Grade Reliability Guarantee
✅ Extreme Environment Tolerance:
- Cold start at -40°C (GB/T 2423.1-2025) to continuous operation at 75°C (IEC 60068-2-14)
- Humidity range of 5%-95% non-condensing (alternating humidity and heat test SJ/T 11608-2025)
✅ Electrical Safety:
- 4kV contact discharge protection (IEC 61000-4-2 Level 4)
- 6kV surge suppression (power terminal, GB/T 17626.5)
🏭 Three Trusted IT Innovation Scenario Solutions
Industrial IoT Edge Computing
- The XH2.54mm model directly connects to PLC backplanes, providing power for RS485-to-Ethernet gateways (supports Modbus TCP transparent transmission)
- Non-blocking architecture ensures data throughput for 32-node sensor clusters
