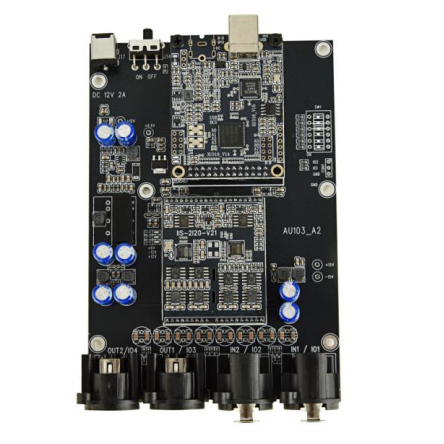

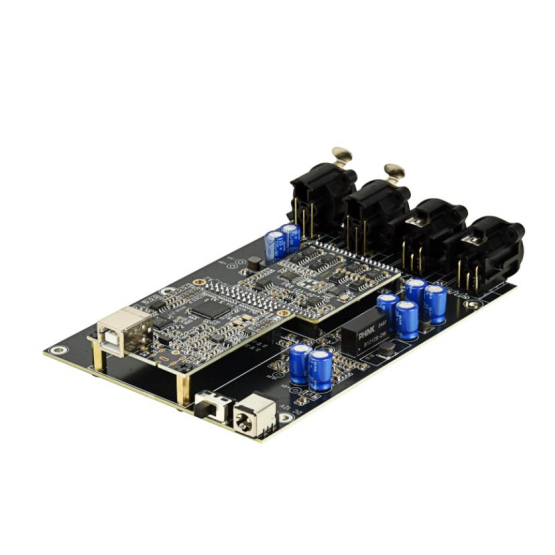

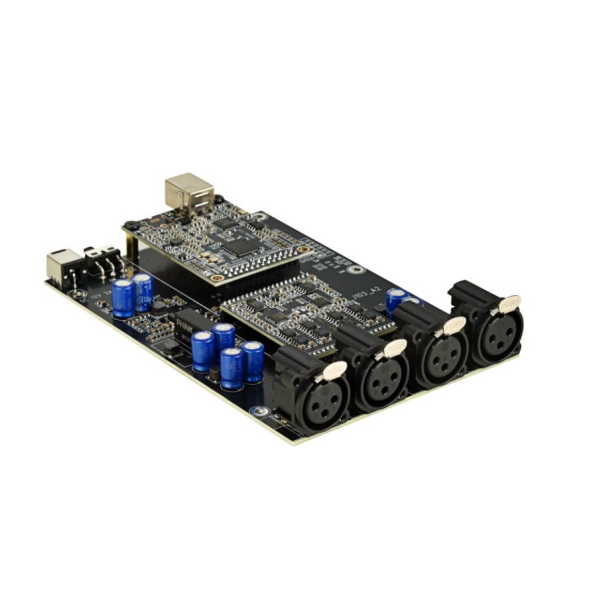

Pro Audio USB Interface Kit: XMOS 2CH, ES9018/ES9822, Soundcheck/REW Support, 10Vp Balanced I/O
Product Advantages & Features
Flagship Audio Chips & XMOS Core Architecture
- ADC (ES9822): 118dB dynamic range, 24bit/192kHz sampling, -120dB THD+N, ideal for high-precision recording.
- DAC (ES9018): 120dB dynamic range, 0.0002% THD+N, ±0.05dB frequency response (20Hz-20kHz), delivering studio-grade playback quality.
- XMOS Multichannel Solution: Supports 2/4/8-channel expansion (customizable up to 64 channels), USB asynchronous transmission reduces jitter for ultra-low-latency audio streaming.
Professional-Grade Audio Performance Metrics
- Signal-to-Noise Ratio (SNR): 116dB (overall), 118dB (ADC), 120dB (DAC, 20Hz-20kHz unweighted), rivaling premium professional equipment.

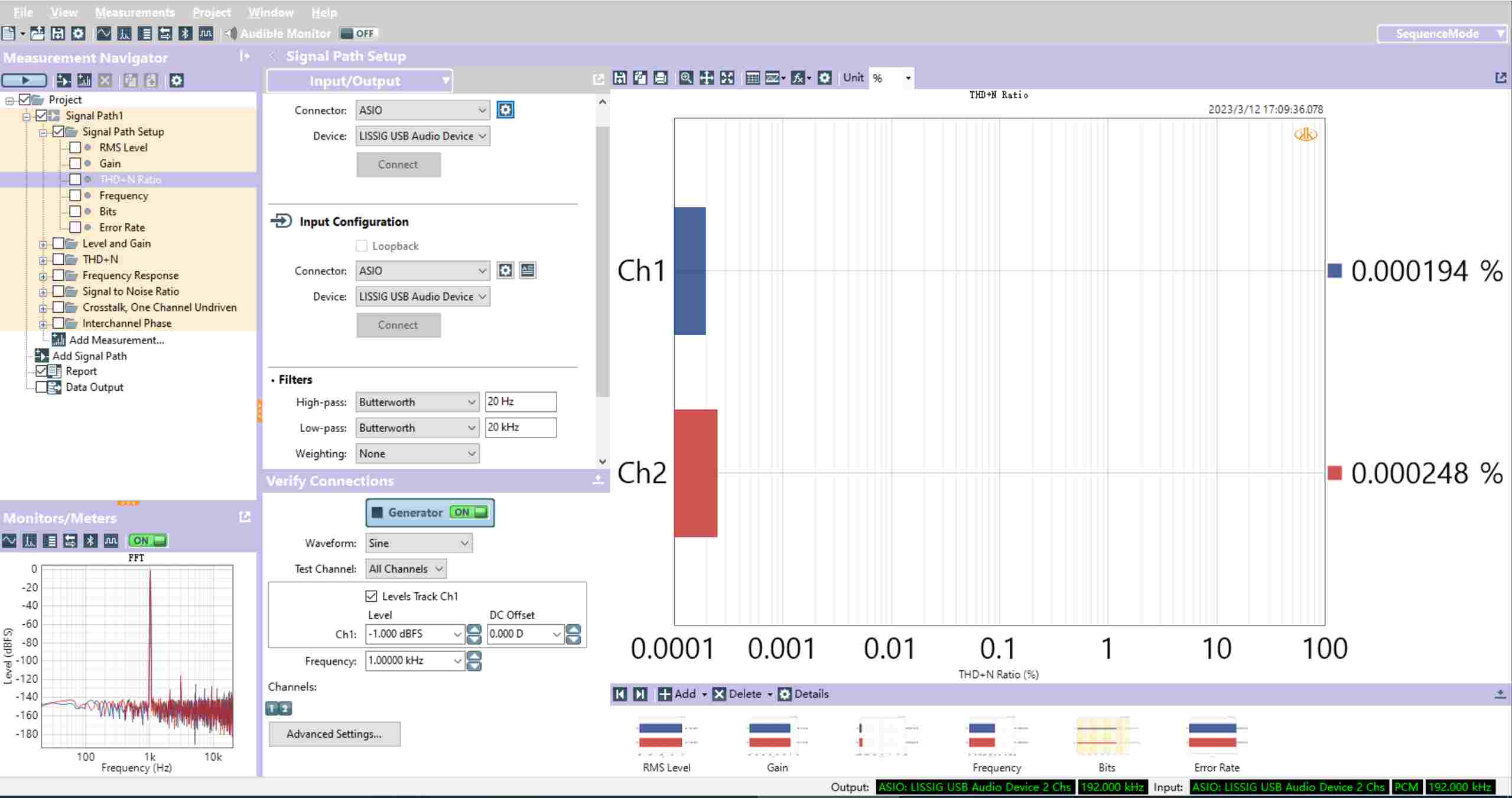

- Total Harmonic Distortion + Noise (THD+N): 0.00025% (@1kHz, -1dBFS), meeting stringent demands for audio analysis and acoustic measurement.
- Frequency Response Flatness: ±0.05dB (20Hz-20kHz), ensuring lossless signal transmission across the entire frequency spectrum.
Full-Featured Professional Interfaces & Compatibility

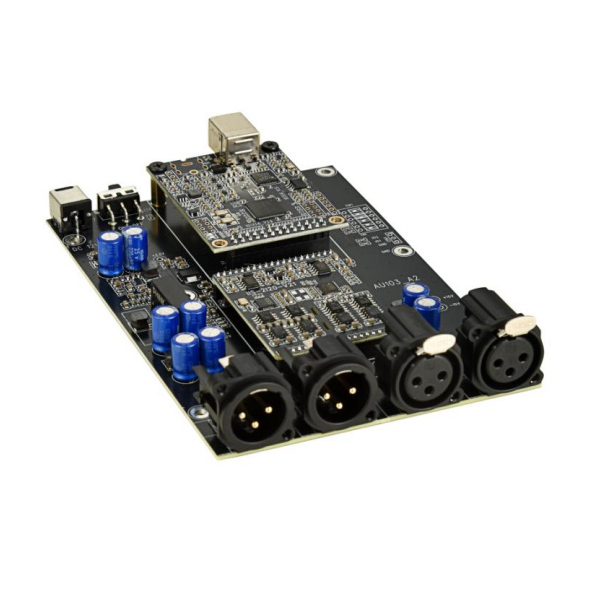

- Balanced XLR Connectors: Support 10Vp maximum input/output (calibrated), with strong anti-interference capabilities for professional microphones and monitors.
- Driver & Software Support: Native WASAPI/ASIO drivers compatible with Windows 10/11; supports testing software like Soundcheck, APV5XX, and REW. Open MATLAB/Python/VS interfaces for secondary development.
- Loopback Test Mode: Direct output-to-input connection for rapid device performance verification.
Industrial-Grade Development & Reliability Assurance
- Testing Protocol: Rigorous validation using AP audio analyzers, 34401A 6.5-digit multimeters, and 500MHz oscilloscopes.
- Power Design: Single 12V supply with linear digital-controlled power for low noise, suitable for lab and field deployments.
- Customization Services: Supports 64-channel differential interface customization, SNR >120dB, THD+N <0.0002%, meeting research-grade requirements.
Typical Application Scenarios
- Professional Audio Measurement: Loudspeaker/microphone frequency response testing, distortion analysis, and acoustic material evaluation.
- Recording & Mastering: High-fidelity music studio recording and post-production for film/TV audio.
- Research & Education: Acoustic experiments and voice signal processing coursework.
- Industrial Inspection: Equipment noise diagnostics, vibration analysis, and ultrasonic testing.
-
