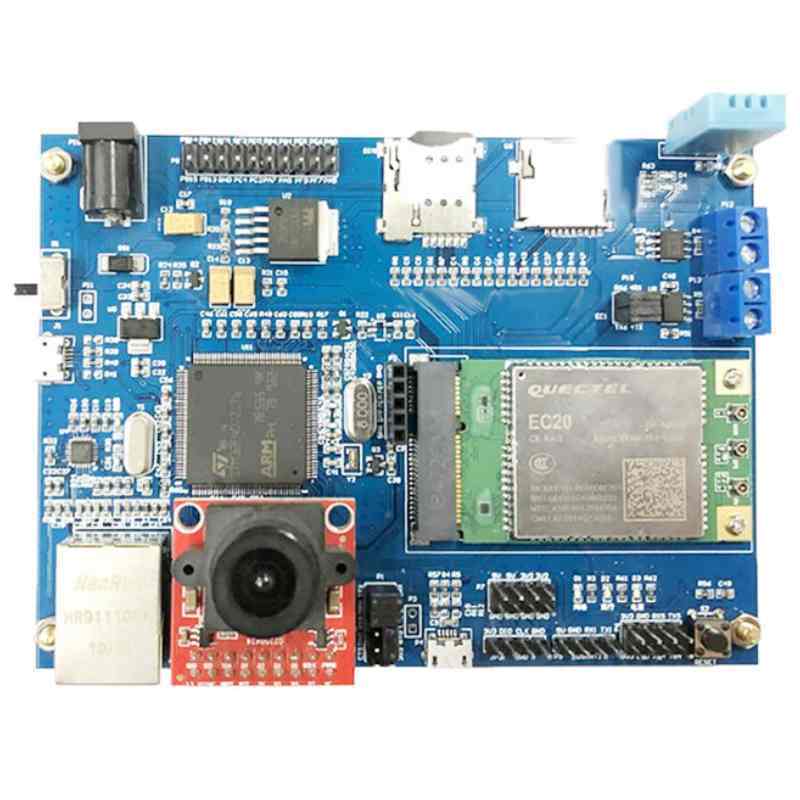

Professional Analysis of PCB Manufacturing and Assembly (PCBA) for Vision-Integrated Controllers: Integrating Dual Requirements of Machine Vision and Industrial Control
I. Core PCB Challenges for Vision Processing Hardware
- High-Speed Image Data Transmission
- Multi-Channel MIPI CSI-2 Interfaces: Differential pair impedance controlled at 90Ω ± 5%, with equal-length routing tolerances ≤ 0.1mm, supporting transmission speeds ≥ 4Gbps per channel (e.g., 12MP@60fps).
- EMI-Resistant Design: Image sensor areas utilize Faraday cage shielding combined with electromagnetic wave-absorbing materials (TDK EMR series) to suppress high-frequency noise.
- Real-Time Image Processing Architecture
- Heterogeneous Computing Layout: Triangular arrangement of CPU+GPU+VPU chipsets with serpentine copper heat pipes embedded in the PCB (thermal conductivity ≥ 400W/mK), maintaining a temperature difference < 5℃.
- Low-Latency Memory Routing: LPDDR4x trace lengths matched ≤ 50mil, with no reference layer splits to reduce timing jitter to ±10ps.
II. Key Manufacturing Processes and Material Innovations
| Technical Direction |
Implementation Solution |
| Ultra-Thin HDI Stacking |
14-layer Every Layer Interconnect (ELIC) with 50μm laser blind vias, line width/spacing of 40/40μm, increasing routing density by 60%. |
| Optically Compatible Surface Finishes |
Matte black solder mask in camera areas (reflectivity < 5%), with hard gold plating (0.3μm thickness) on edge connectors. |
| Hybrid Substrate Structures |
Rogers RO4835™ (Df=0.003) core layer for high-speed signals, with FR-4 outer layers for cost control. |
| Thermal Deformation Control |
High Tg material (Tg ≥ 180℃) + steel reinforcement layers, achieving warpage ≤ 0.7% (IPC-6012 standard). |
III. Enhanced Industrial Environment Adaptability
- Mechanical Stress Protection
- BGA Underfill Adhesive: Nano-silica-modified epoxy resin (CTE 28ppm/℃), withstanding vibrations > 15Grms.
- Connector Shock-Resistant Design: FPC interfaces use dual-lock board-end sockets with a mating life > 20,000 cycles (compliant with IEC 61076 standard).
- Extreme Environment Tolerance
- Conformal Coating Composite Process: Plasma cleaning followed by Parylene HT® spray coating (temperature resistance > 350℃), passing 168h salt spray tests.
- Wide-Temperature Component Selection: Image processors选用 Xilinx Zynq UltraScale+ (-40℃ to 125℃), compliant with AEC-Q100 certification.
IV. Technologies for Realizing Intelligent Vision Functions
- Hardware Acceleration Architecture
- FPGA-Integrated ISP Pipeline: Dual-pixel autofocus (DPAF) processing latency < 2ms, with a 40% reduction in power consumption.
- AI Coprocessor: NPU module deployed near the image sensor, achieving ResNet-18 inference energy consumption of 0.5W@4TOPS.
- Multi-Sensor Synchronization
- Global Shutter Synchronization Circuit: Dedicated clock tree driver (jitter < 200ps), supporting 8-channel camera frame synchronization errors ≤ 1μs.
V. Advanced Testing and Verification Systems
| Test Category |
Key Technologies |
| Signal Integrity Verification |
Eye diagram testing (28Gbps SerDes), TDR impedance analysis (resolution 0.1Ω). |
| Optical Performance Calibration |
Geometric distortion correction (< 0.1%), dark current noise testing (-40℃ low-temperature dark field). |
| Industrial Protocol Compatibility |
GigE Vision V2.0 + GenICam protocol stack testing, PoE+ power supply (IEEE 802.3bt). |
| Failure Analysis |
Infrared thermal imaging to locate hotspots, 3D X-CT scanning to detect solder voids (resolution 5μm). |
VI. Cutting-Edge Technology Integration Directions
- Glass Substrate Applications: Intel-style Embedded Multi-Die Interconnect Bridge (EMIB), increasing CPU-to-VPU interconnect bandwidth to 1TB/s.
- Photonic Integration: Silicon photonics engines replacing SerDes copper wires, reducing transmission power consumption to 0.3pJ/bit (suitable for 8K video streams).
- Self-Healing Coatings: Microencapsulated repair agents (diameter 10μm) that automatically fill cracks upon scratching, extending lifespan by 3 times.
Conclusion
The PCBA of vision-integrated controllers serves as the "eyes of the machine" in smart factories, requiring synergistic breakthroughs in three key dimensions: micron-level routing precision, nanosecond-level timing control, and intelligent image processing. By achieving terabit-level image data transmission through ELIC every layer interconnect, eliminating optical interference with matte black solder masks, and balancing processing performance with power consumption through heterogeneous computing layouts, it meets the ISO 13849 PL d functional safety requirements and 15-year industrial field lifespan. With the maturation of 3D stacked packaging and photonic chip technologies, the next generation of PCBAs will realize "sensing-computing integrated" vision SoCs, propelling industrial inspection into the era of microsecond-level real-time response.
