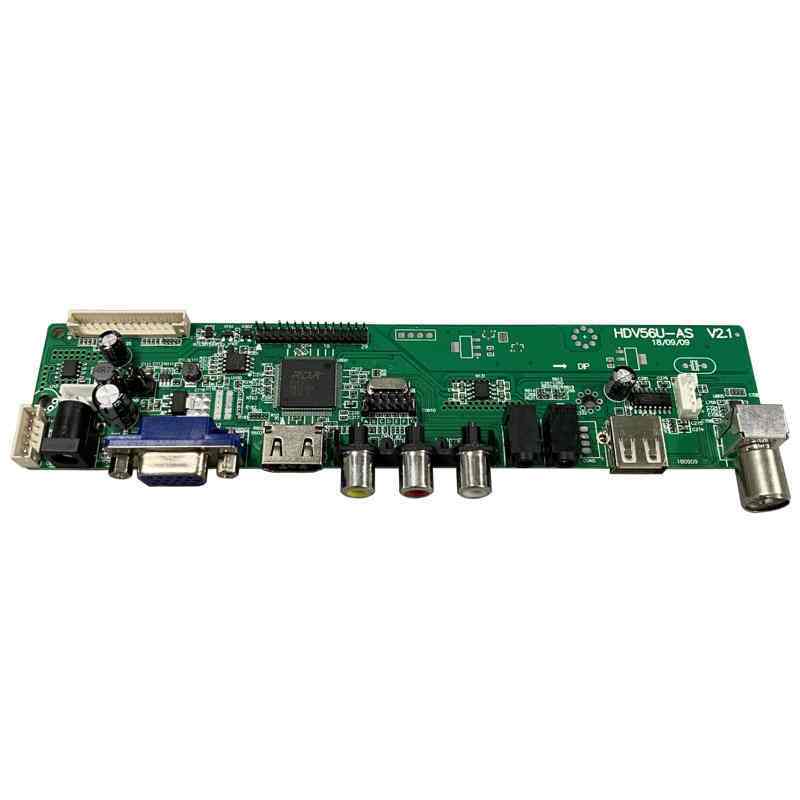

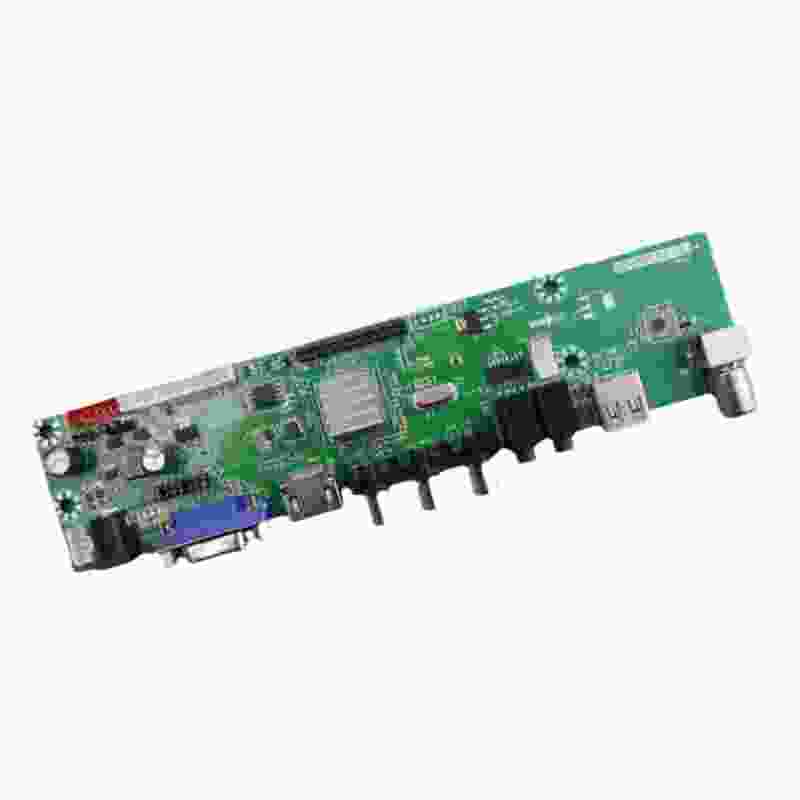

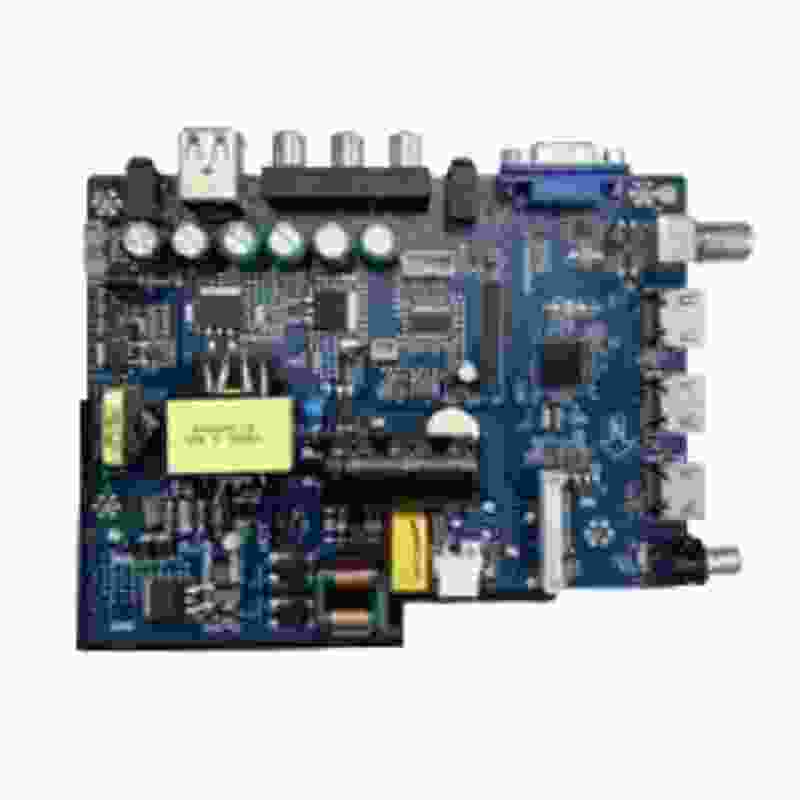

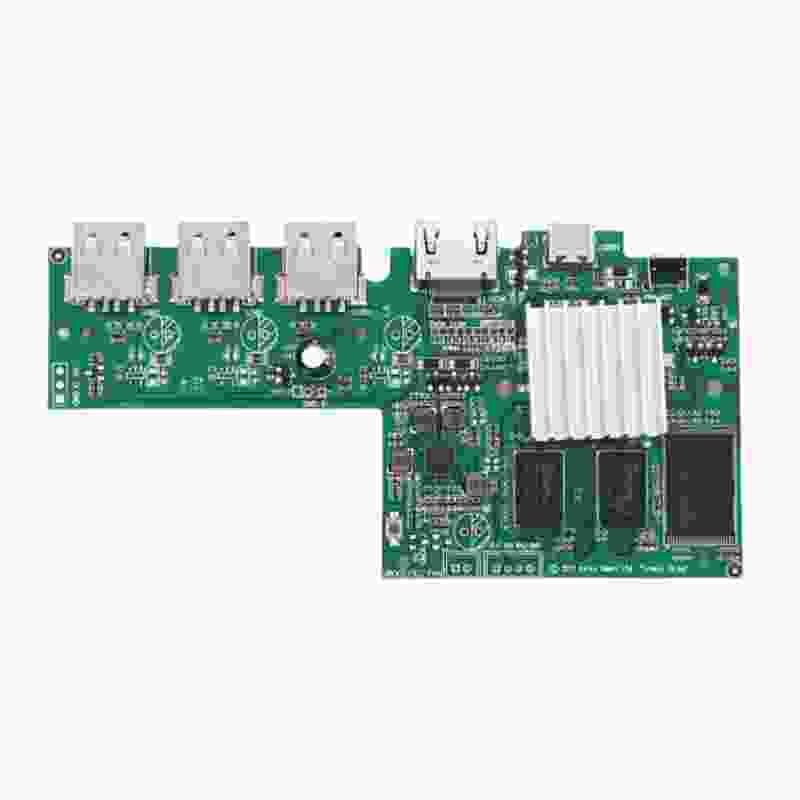

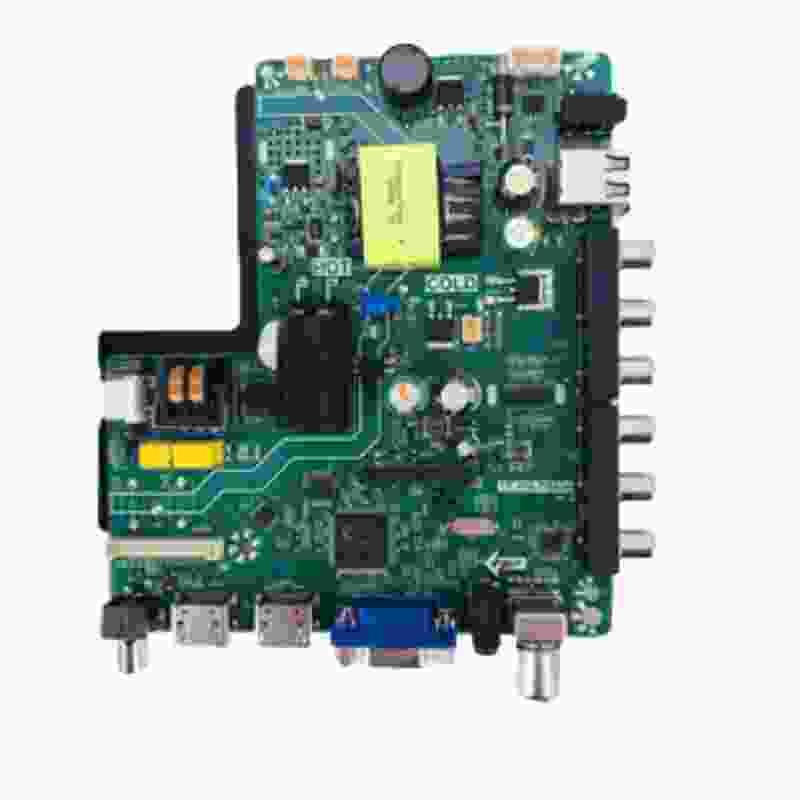

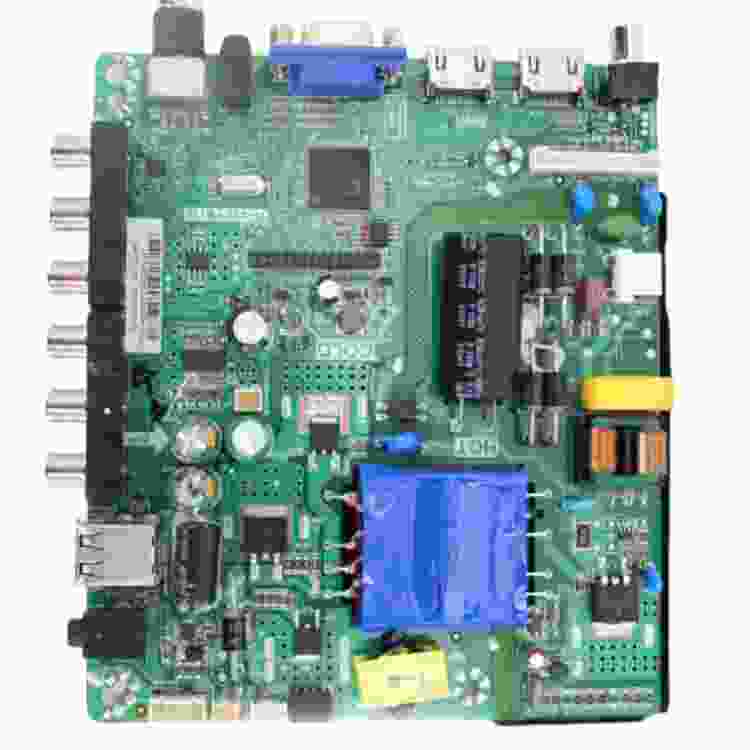

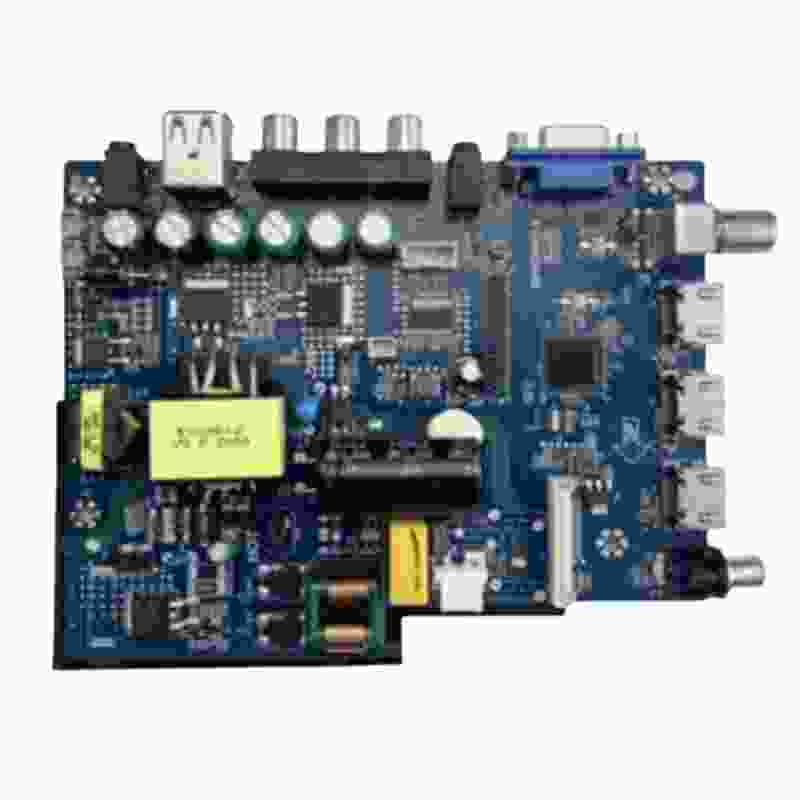

TV/display PCB assembly services

Detailed Explanation of TV/Display PCB Assembly Technology

1. Core Components and Technical Specifications
   Display Processing Units

• Mainstream Solutions: MediaTek Pentonic series (8K@120Hz), Novatek NT72671 (4K@144Hz)
• Integrated MEMC chips: Support dynamic compensation (up to 288Hz frame interpolation)
  Interface Modules
• HDMI 2.1 (48Gbps bandwidth) accounts for 67% of the market (2023 data)
• DisplayPort 2.0 (77.4Gbps) penetration in professional displays increases by 35% annually

2. Advanced PCB Manufacturing Processes
   Multilayer Board Architecture

• 8-12 layer HDI boards (trace width/spacing ≤50μm)
• Low-Dk/Df materials (e.g., Panasonic MEGTRON6) used to reduce signal loss
  Precision Assembly Technologies
• 01005 component placement (accuracy ±25μm)
• Selective soldering (nitrogen protection) with a defect rate <50 PPM

3. Key Performance Testing Items
   | Test Item | Standard Parameters | Instrumentation |
   | Signal Integrity | Eye diagram height ≥0.8UI | Keysight Infiniium Oscilloscope |
   | Electromagnetic Compatibility | Radiation <30dBμV/m @3m | Anechoic Chamber Testing System |
   | Thermal Stability | Operation at 85℃/85%RH for 1000hrs | Constant Temperature & Humidity Chamber |
4. Industry Technology Trends

• MiniLED driver solutions: Single boards integrate up to 2304-zone local dimming circuits
• Eco-friendly processes: Lead-free soldering adoption rises to 82% (2024 estimate)
• AI-powered quality inspection: Deep learning-based visual inspection (defect recognition rate 99.2%)
