Application Scenarios of STM32L162RET6TR/STM32L162RET6 Ultra-Low-Power MCUs
Powered by an ARM Cortex-M3 core (32MHz max), operating at 1.65V-3.6V with ultra-low power consumption (195μA/MHz in run mode, 290nA in standby mode), and equipped with 80KB RAM and 512KB Flash, these MCUs feature USB, CAN, SPI, and other interfaces. Ideal for battery-powered embedded systems, they excel in the following applications:
1. Portable Medical Devices
Examples: Portable ECG monitors, glucose meters, electronic thermometers
- Key Requirements: Long battery life, low-power data acquisition, wireless transmission
- Advantages:
- 12-bit ADC and 2 operational amplifiers enable high-precision ECG signal acquisition.
- Low-power modes: Standby mode (290nA) preserves critical data; run mode (195μA/MHz) processes algorithms for extended battery life.
- SPI/I2C interfaces connect to Bluetooth modules for wireless data transmission.
- Typical Configuration:
- Stop mode (560nA) with RTC for 24-hour monitoring, waking periodically for data collection.
- 80KB RAM stores real-time ECG data; 512KB Flash retains historical records.
2. Industrial IoT Sensor Nodes
Examples: Environmental monitoring terminals, equipment condition sensors, smart meters
- Key Requirements: Remote data acquisition, low-power communication, robustness
- Advantages:
- Multi-interface support: USB/CAN/SPI connect temperature, humidity, pressure, and vibration sensors; I2C drives LCD displays.
- Ultra-low power: Stop mode + RTC (1.4μA) enables monthly data reporting, with CR2032 battery life exceeding 5 years.
- Wide temperature range (-40°C~105°C) ensures reliability in harsh industrial environments.
- Typical Configuration:
- DMA controller accelerates sensor data transfer, reducing CPU load.
- AES hardware acceleration encrypts communication data for industrial cybersecurity.
3. Smart Home Devices
Examples: Smart door locks, wireless thermostats, smoke detectors
- Key Requirements: Low-power standby, rapid response, multi-protocol compatibility
- Advantages:
- Low-power wake-up: 3 wake-up pins support button, infrared, or wireless signal triggering with an 8μs response time.
- Multi-communication interfaces: USART for Wi-Fi, SPI for Zigbee, enabling multi-protocol networking.
- Capacitive touch interface with 34 channels for fingerprint recognition or button detection in smart locks.
- Typical Configuration:
- Low-power Run mode (11μA) handles simple tasks (e.g., temperature display) without full wake-up.
- 16KB EEPROM stores user configurations (e.g., door lock passwords) without power loss.
4. Consumer Electronics Accessories
Examples: Smart wristbands, wireless earbud charging cases, e-readers
- Key Requirements: Ultra-compact size, ultra-low power, high integration
- Advantages:
- LQFP64 package (10x10mm) saves PCB space for compact designs.
- LCD driver with 8x40-segment controller directly drives e-ink or segment displays.
- Ultra-low I/O leakage (10nA) minimizes standby power consumption.
- Typical Configuration:
- Backup SRAM (4KB) retains screen data for quick resume.
- Internal 16MHz RC oscillator (±1% accuracy) replaces external crystals, reducing costs.
5. Agriculture & Environmental Monitoring
Examples: Soil moisture sensors, weather stations, livestock trackers
- Key Requirements: Long-term field deployment, solar power, local data storage
- Advantages:
- Large storage: 512KB Flash stores historical data, reducing upload frequency.
- Low-power timed sampling: Internal low-speed oscillator (65kHz-4.2MHz) enables minute-level data collection.
- Wide temperature range (-40°C~105°C) withstands extreme climates.
- Typical Configuration:
- SPI interface connects to SD cards for GB-level storage expansion.
- Independent watchdog prevents system crashes, ensuring long-term stability.
-
Core Advantages of Choosing Us as Your Supplier for STM32L162RET6TR/STM32L162RET6 Inventory Chips
Key strengths lie in genuine product guarantees, deep optimization of ultra-low-power technology, full lifecycle technical support, cost and ecosystem advantages, and industry-specific customized solutions. Details are as follows:
Genuine Product Guarantees with Instant Shipment
- 100% Official Channels: Chips are procured directly from STMicroelectronics (ST)-authorized distributors, eliminating counterfeit or refurbished components and ensuring product stability and long-term lifecycle.

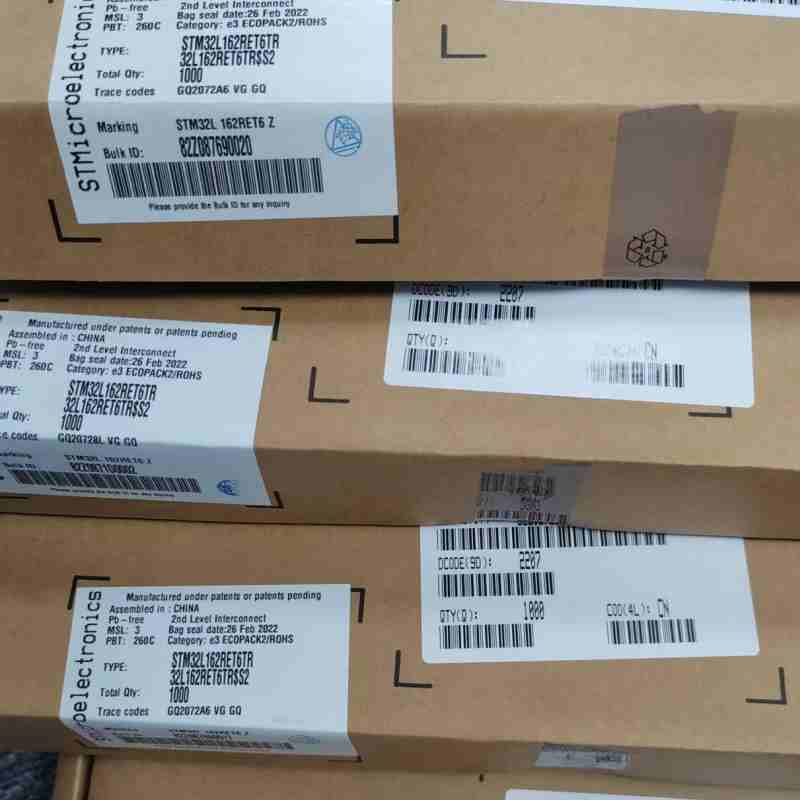

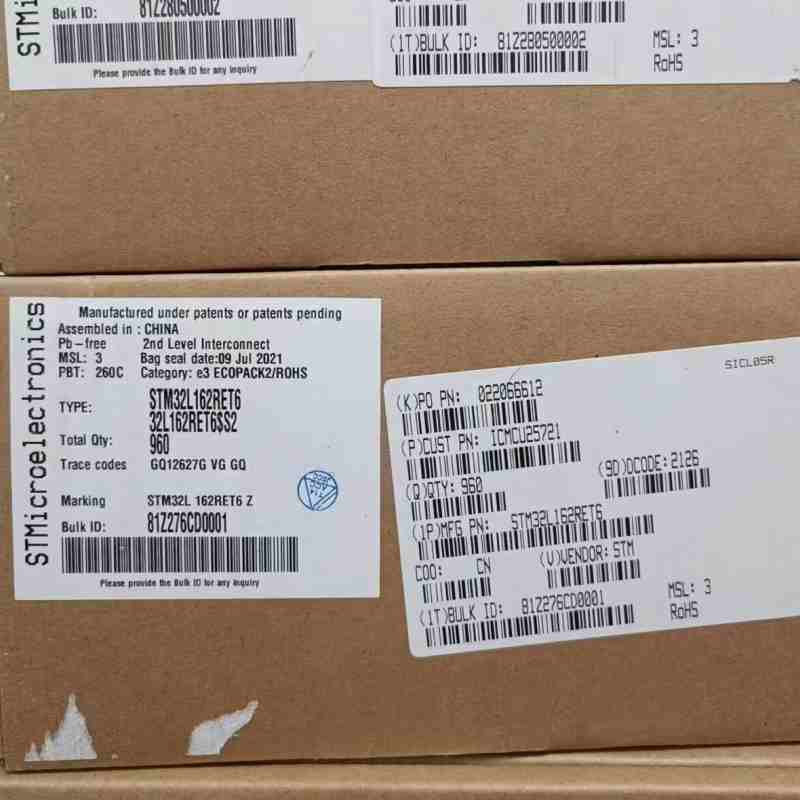

- Massive Inventory: Stocked in multiple domestic warehouses (Shenzhen/Shanghai/Suzhou), with 24-hour shipping to prevent project delays caused by shortages.
- Batch Traceability: Each chip is assigned a unique traceability code, enabling verification of original quality reports to meet stringent requirements in medical, industrial, and other high-reliability sectors.
