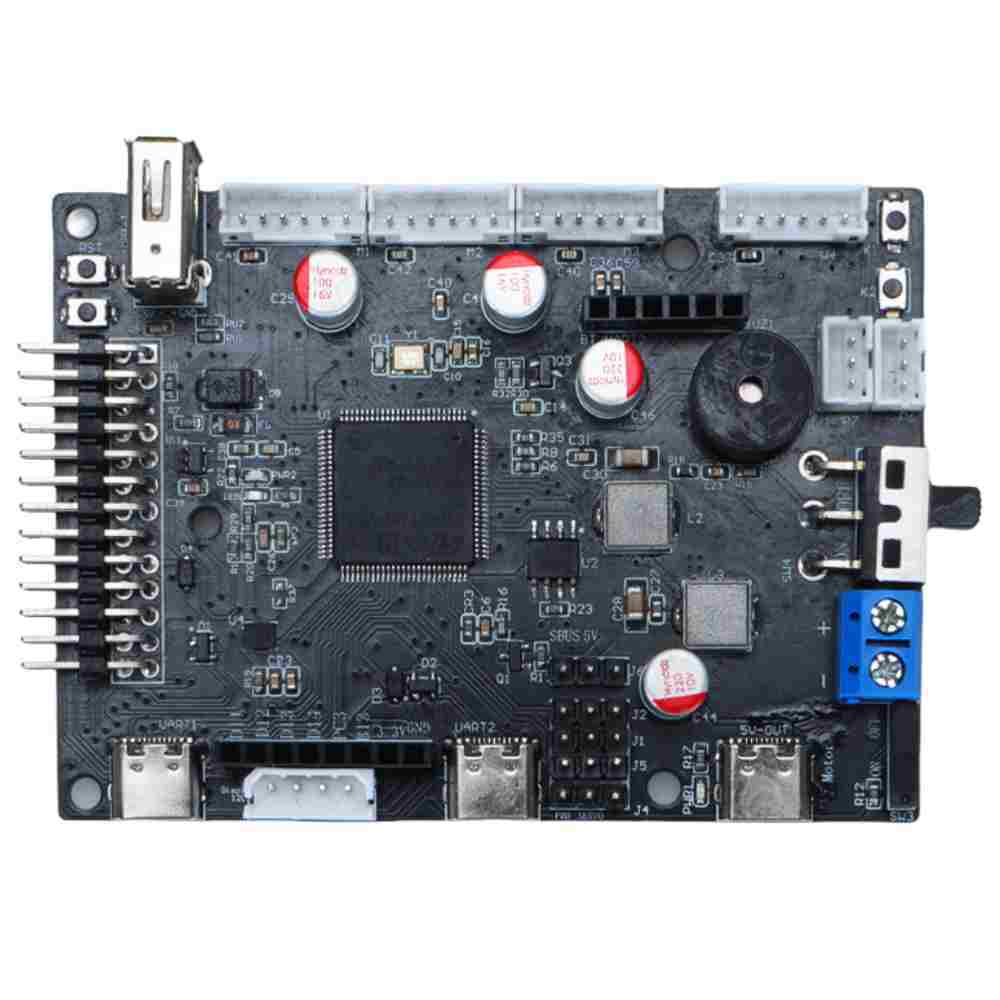

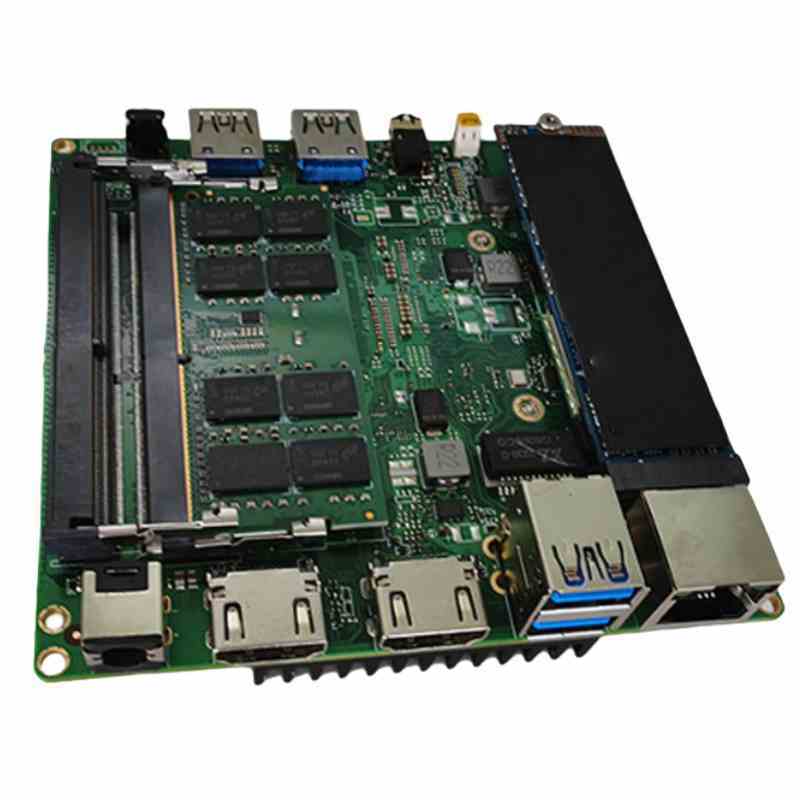

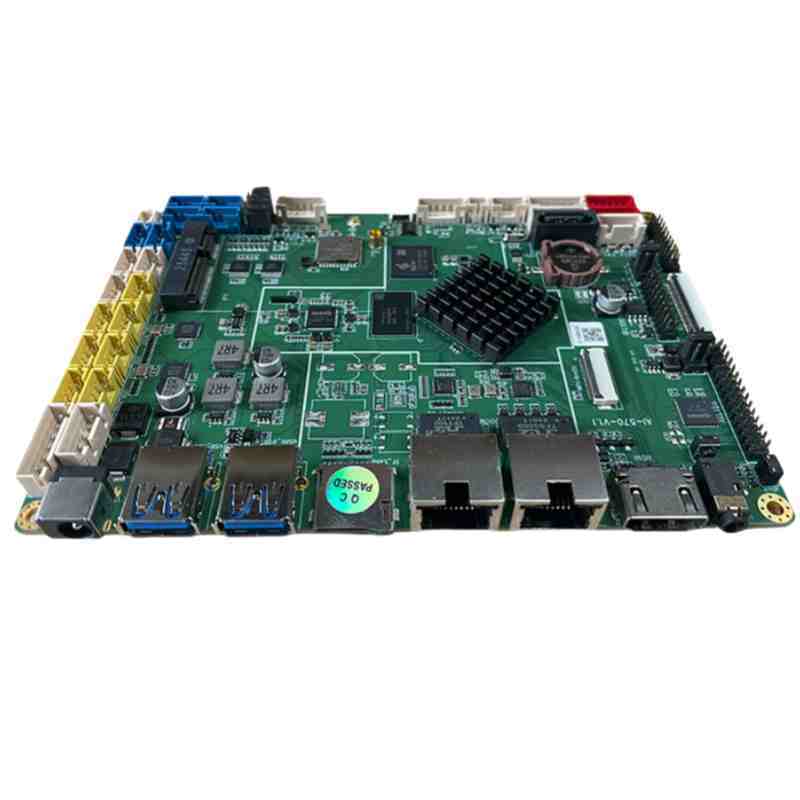

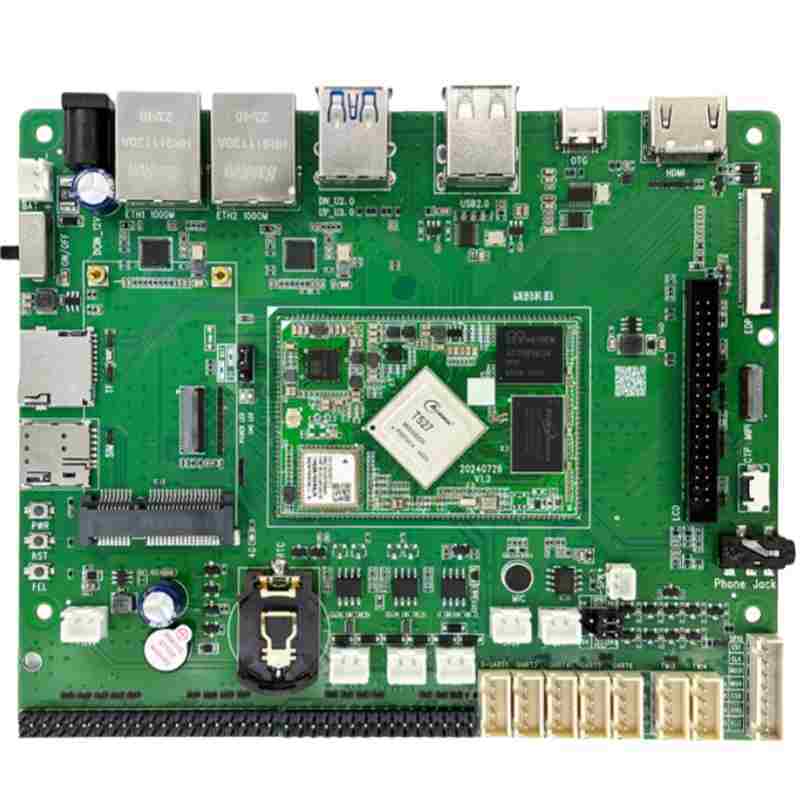

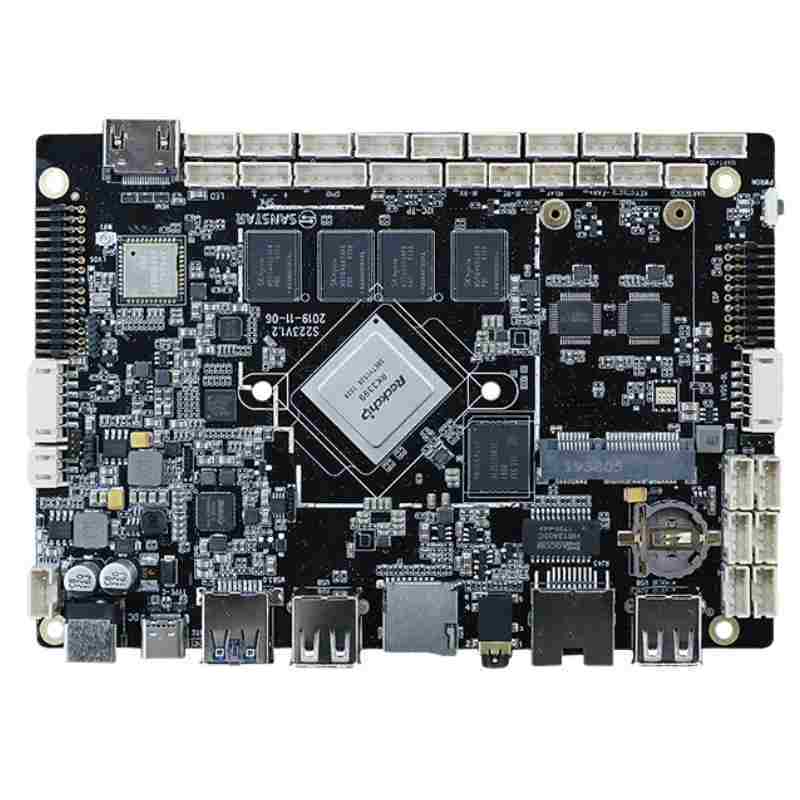

Smart Traffic Edge PCB Assembly: Ultra-Low Latency, High-Speed Infrastructure for Intelligent Transportation
Our 8-layer HDI PCB assemblies are engineered for smart traffic systems requiring 5G+V2X (Vehicle-to-Everything) communication, AI-powered traffic signal optimization, and real-time incident detection. The 0.2mm pitch BGA routing and laser-drilled microvias (<40μm) enable 8,000+ I/O connections in a compact 180mm x 150mm form factor, reducing signal propagation delay by 35% versus standard 6-layer boards.
5G & V2X Performance
- Sub-6GHz/mmWave Support: Phase-array antenna integration with beamforming achieves 2.4Gbps throughput at <10ms latency for C-V2X (3GPP Release 16).
- Time-Sensitive Networking (TSN): IEEE 802.1Qbv compliance ensures <1μs jitter for critical traffic control messages.
- Multi-Access Edge Computing (MEC): NVIDIA Jetson Orin NX (256 TOPS AI) enables 98% accuracy in pedestrian/vehicle detection at 120fps.
Environmental & Reliability
- Extreme Temperature Operation: -40°C to +85°C validated via HALT testing (1000 thermal cycles, -55°C to +125°C shock).
- IP67 Waterproofing: Parylene-C conformal coating resists salt fog (ASTM B117) and humidity (85% RH, 85°C) for 15+ years.
- Seismic Resistance: Underfill epoxy for BGAs and metal-stiffened connectors withstand 50g peak vibration (IEC 60068-2-64).
Manufacturing & Compliance
- 5-Day Rapid Prototyping: From DFM review to 10-unit sample build, including X-Ray/AOI inspection and functional testing (5G link validation, AI model inference).
- Certifications: ISO 13485 (Automotive), TS 16949 (IATF), FCC Part 90, CE, RoHS.
Ideal For:
- Smart traffic lights with AI-based adaptive timing
- 5G-enabled roadside units (RSUs) for V2X
- Autonomous vehicle infrastructure (HD map updates, collision avoidance)
Contact: info@fr4pcb.tech | Use code TRAFFIC2025 for 20% off first order.
