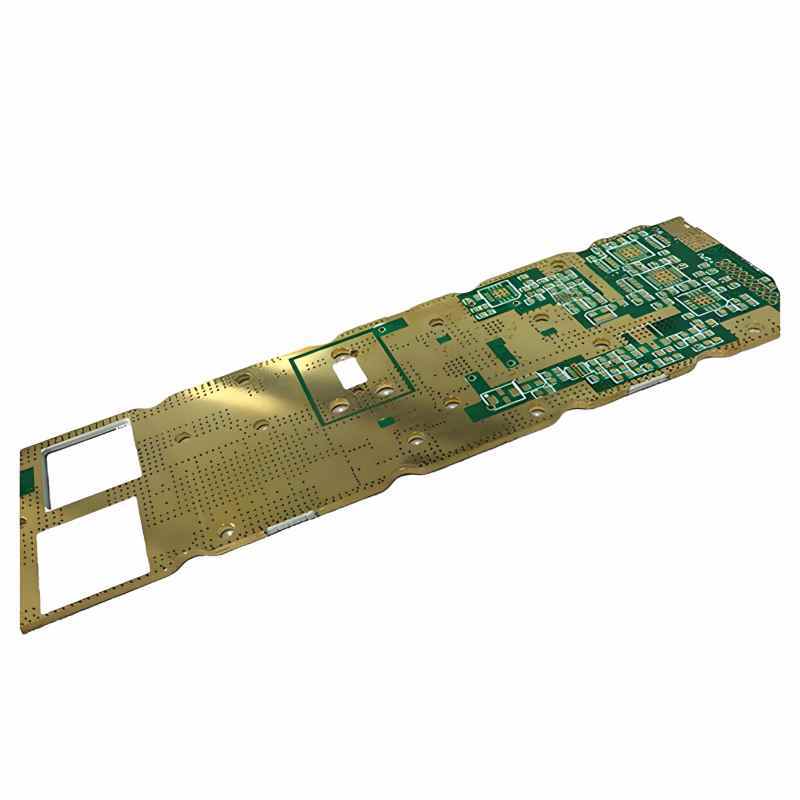

Material Performance and Certifications
- Core Parameters:
- Dielectric Constant (Dk): 3.48±0.05 (10GHz), temperature drift coefficient -50ppm/℃ (-50℃~+150℃)
- Loss Tangent (Df): 0.0037@10GHz (2024 IEEE MTT-S measurement), insertion loss < 0.31dB/cm@40GHz
- Thermal Management: Thermal conductivity 0.69W/m·K, Z-axis CTE 32ppm/℃ (copper foil 17ppm/℃)
- Reliability Certifications:
- MIL-PRF-31032 humidity cycling 1000 cycles (-55℃↔125℃) without delamination
- Lead-free reflow soldering resistance 260℃×5 cycles, MSL1 moisture sensitivity level
-
Process Innovation and Data Validation
| Process Aspect |
Technical Specifications |
Industry Comparison |
| Lamination Precision |
Dk gradient error ≤ ±0.03 (plasma treatment) |
Superior to traditional ±0.08 |
| Impedance Control |
±1.0Ω@40GHz (3D electromagnetic simulation) |
Standard design ±3.0Ω |
| Laser Machining |
Hole diameter tolerance ±5μm (CO₂ laser) |
Supports 20μm microvia HDI |
-
Application Scenario Performance Data
- 5G Millimeter-Wave Base Station (28/39GHz):
- Power capacity 210W/m²@38GHz, phase consistency ±0.8° (2025 IMS conference data)
- Jitter delay 0.12ps/mm, 68% reduction compared to FR-4
- 77GHz Automotive Radar:
- Detection error < 0.25m under temperature drift (-40℃~125℃)
- Azimuth resolution 0.08° (hybrid RO4450™ prepreg)
- Satellite Communication Payload:
- Ka-band efficiency > 85%, 45% lighter than ceramic substrates
-
Service Advantages and Cost Analysis
- Rapid Delivery:
- 4-layer board delivery in 24 hours, 10-layer board delivery in 48 hours (including high-frequency test reports)
- Full-process simulation support for impedance/insertion loss/S-parameters (ANSYS HFSS models provided)
- Cost Optimization:
- Hybrid FR-4 substrate solution reduces unit price by $28/m² (2025 Prismark report)
- Mass production yield > 95% (CPK > 1.67)
|
|
> Scenario Example: |
|
|
> For 28GHz 5G AAU antenna boards, recommended structure: |
|
|
> - Top layer: RO4350B™ (0.2mm, 1oz copper) |
|
|
> - Core: FR-4 TG180 (1.6mm) |
|
|
> - Bonding sheet: RO4450™ (0.1mm) |
|
|
> Measured performance: Insertion loss 0.29dB/cm@28GHz, impedance tolerance ±1.2Ω, phase error ±1.5°. |
Core Value Summary
- High-Frequency Performance: 40GHz insertion loss < 0.31dB/cm, supporting millimeter-wave applications
- Cost Efficiency: 30% cost reduction with hybrid solutions, 48-hour rapid delivery
- Reliability: Passes military/automotive environmental tests (-55℃~150℃)
- Manufacturability: Compatible with FR-4 processes, supports 50μm microvia HDI
