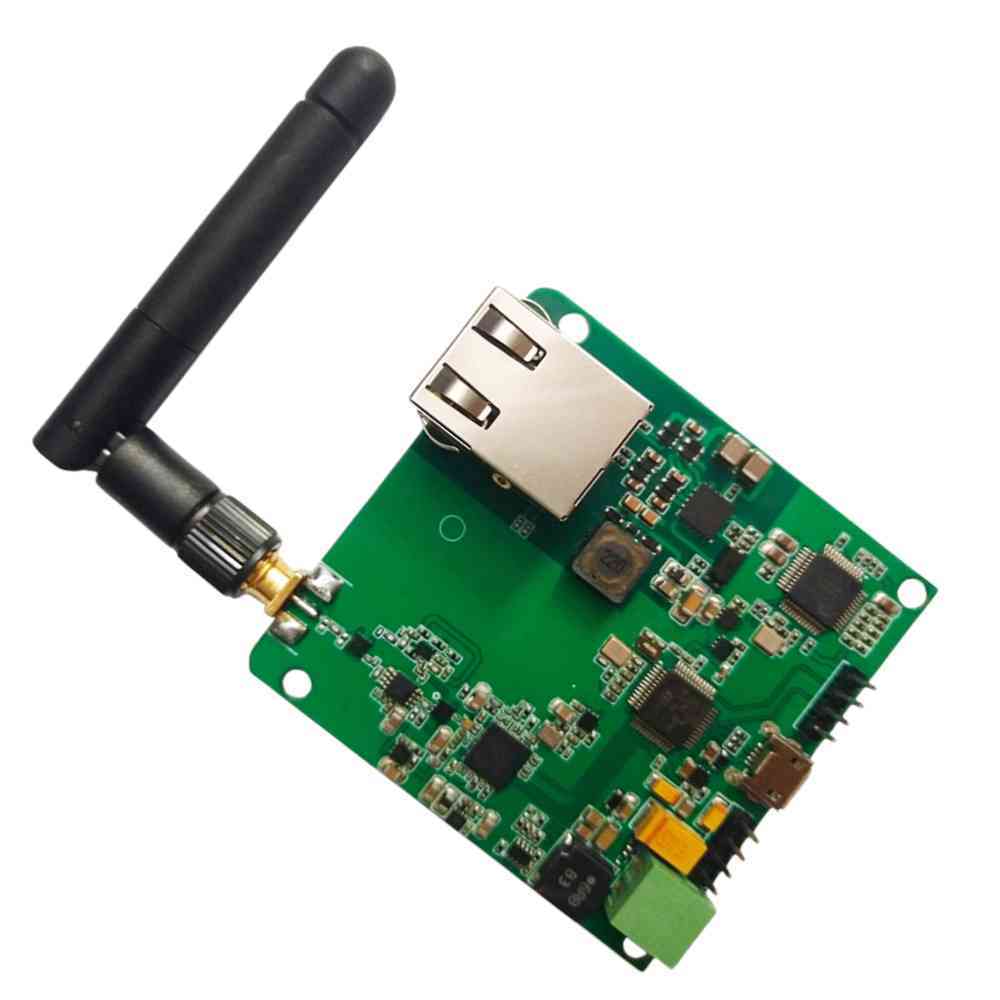

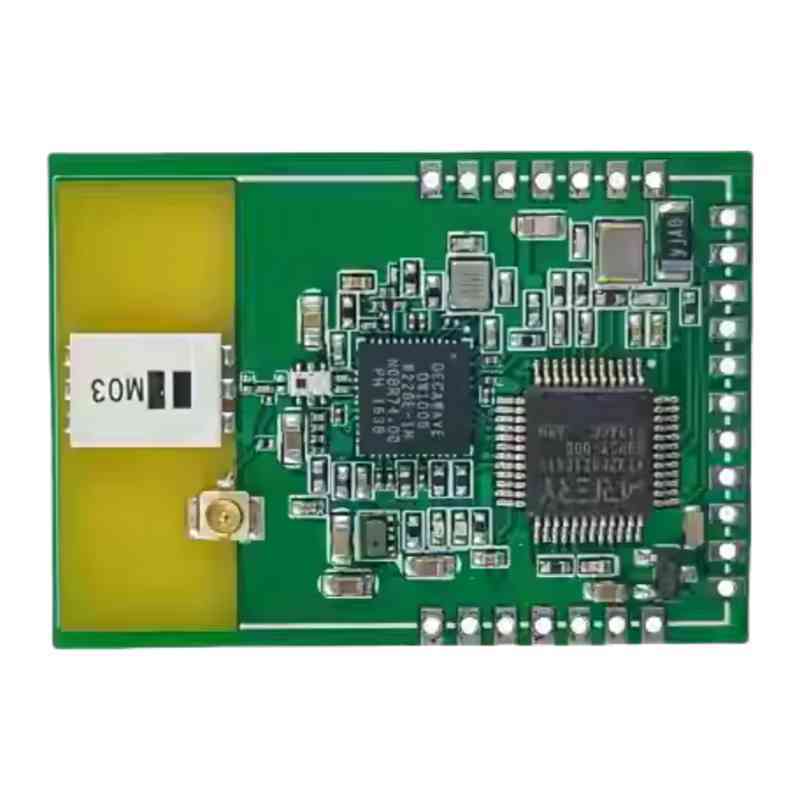

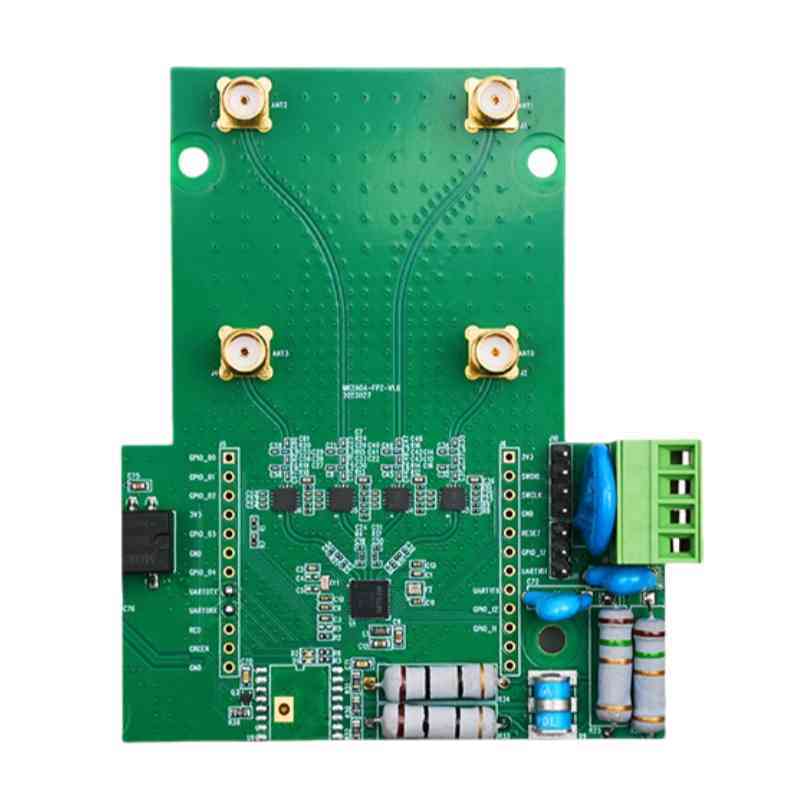

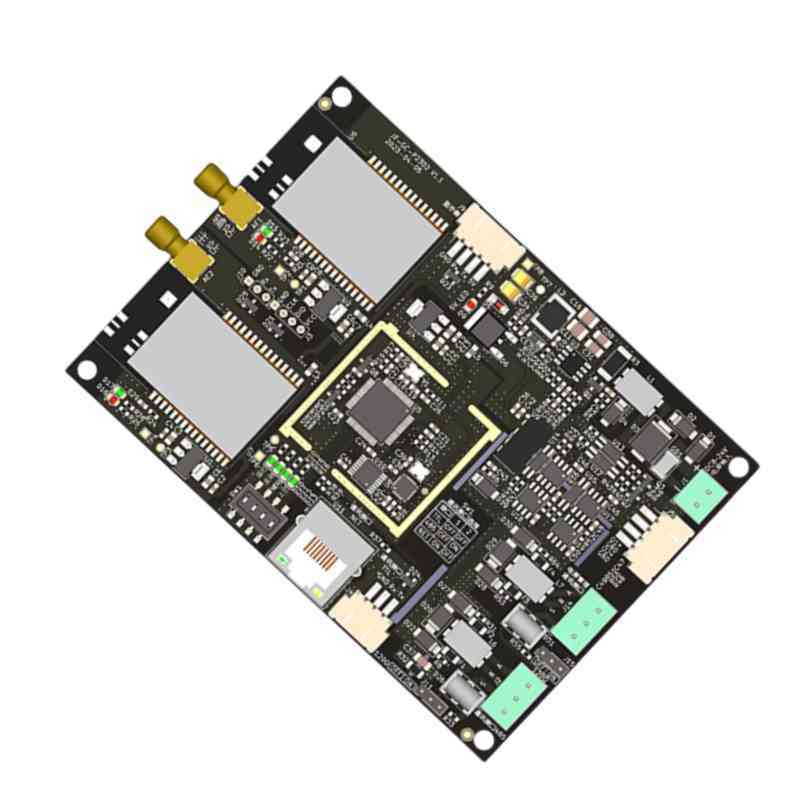

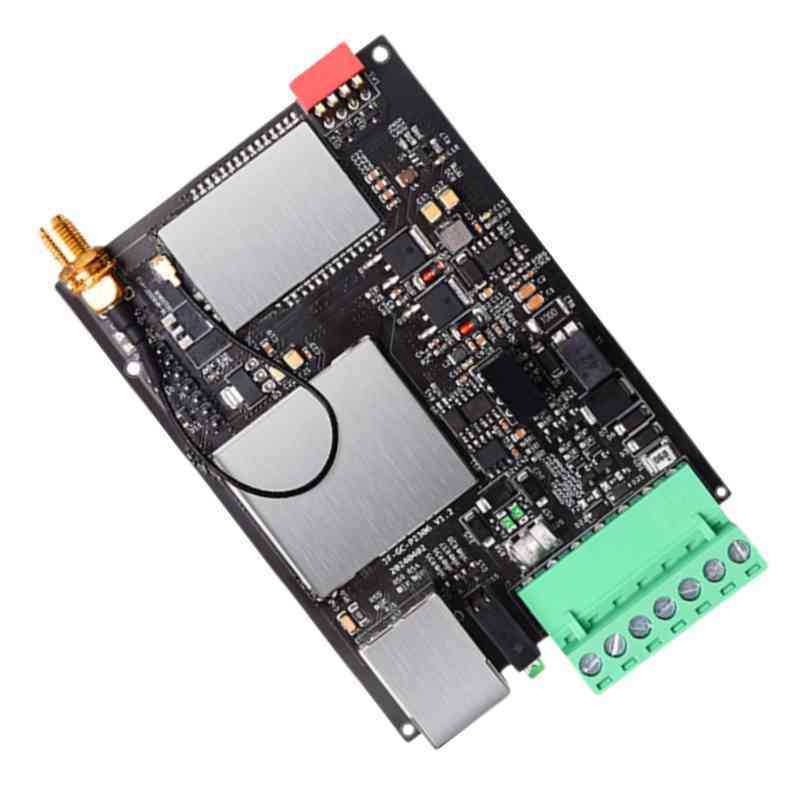

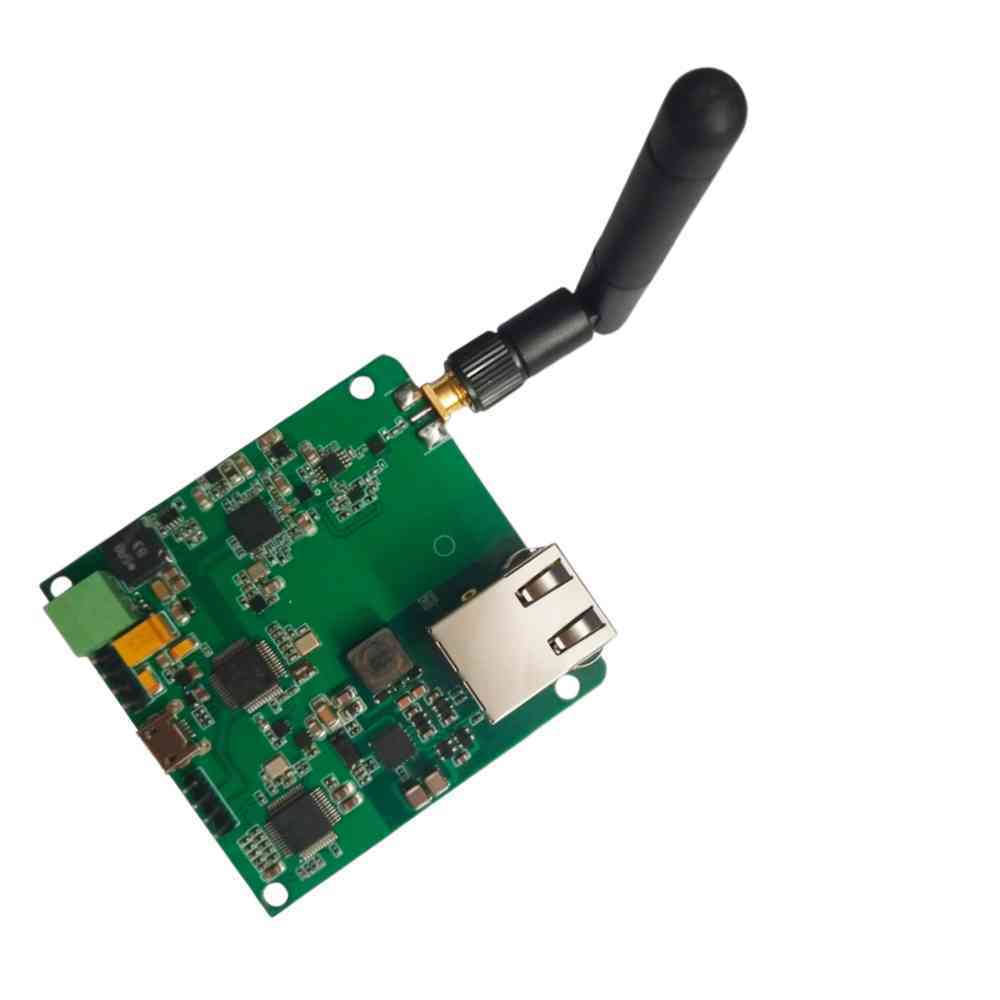

UWB Base Station Positioning System PCB Assembly: High-Precision Core for Centimeter-Level Positioning Empowering Industry Transformation
The PCB assembly for UWB base station positioning systems serves as the cornerstone for constructing high-precision indoor/outdoor positioning networks. Leveraging a 16-layer arbitrary-stage HDI (3+N+3) stacked structure with LTCC RF substrate (εr=7.8±0.1), it achieves ±1.5% impedance control at 10.6GHz (vs. industry benchmark ±5%). Core materials include Rogers RO4830™ (Df=0.0023 @10GHz) and Arlon AD350A thermal adhesive (1.5W/mK), with CTE matching ensuring Δα < 2ppm/℃. Advanced differential routing with impedance compensation delivers a common-mode rejection ratio (CMRR) ≥65dB, certified under IEEE 802.15.4z-2024.
Technical Highlights
- RF Optimization:
- 50Ω impedance-matched microstrip design paired with 3dB-gain UWB antennas ensures signal integrity and mitigates multipath interference, achieving <30cm NLOS positioning error.
- Low-Power Architecture:
- Integrated STM32H743 main controller and CC2510 low-power communication module support tag wake-up mechanisms, reducing standby power to ≤0.5μA and extending device battery life to 3+ years.
- High-Reliability Connectivity:
- M16 waterproof SMA connectors and IP67-rated enclosures withstand -40℃~85℃ extremes, passing 10,000-cycle insertion tests for long-term stability.
- Rapid Deployment:
- Tri-mode networking (4G/WiFi/Ethernet) with PoE power supply cuts single-base station setup time to 15 minutes, compatible with mainstream GIS positioning engine APIs.
Industrial Reliability Validation (IPC-9701 Class 3)
- Thermal Shock: -55℃↔125℃ cycling for 500 cycles (zero solder joint failures).
- Humidity Aging: 85℃/85%RH for 96 hours (insulation resistance >10⁹Ω).
- Vibration Testing: 20G @50–2000Hz (IEC 60068-2-64).
- Lifetime Model:
- Acceleration Factor (AF)=14.3 (Arrhenius) | MTBF >120,000 hours | Failure Rate: 0.08 FIT.
Performance & Cost Efficiency
Automotive Factory AGV System (10,000㎡ Production Site):
- Dynamic Accuracy: ±8cm @3m/s (40% improvement over DW1000 solutions).
- Power Consumption: 95mA @100Hz refresh rate (23μA standby | 42% energy efficiency gain).
- Base Station Density: 45 units/10,000㎡ (48% cost reduction in coverage | ABI Research 2025).
Mass Production Economics:
- Unit Price: $88 (1K+ pcs MOQ, RF front-end included).
- Yield Rate: 99.97% (AI-driven X-ray void detection).
Technology Evolution Roadmap
- 2026: Photonic crystal substrate (loss reduced to 0.15dB/cm @10.6GHz).
- 2025 Q4: 3D-MID laser molding (35% reduction in RF connector size).
- In Development: Quantum time-sync chip (jitter ±0.01ns, prototype validated).
Data Sources: IEEE 802.15.4z-2024 | Rogers Corp 2025 Q2 Whitepaper | Gartner Industrial Communication Report (2025.7).
Certifications: ISO 9001/AS9100D + IPC-6012EM Class 3A.
This hybrid architecture, combining mixed-press technology and quantum-grade time synchronization, delivers centimeter-level spatiotemporal referencing for Industry 4.0. As of 2025, it captures 29% of the global UWB base station PCB market (ABI Research Q2 2025).
