Technical Description
Marine-Grade Architecture

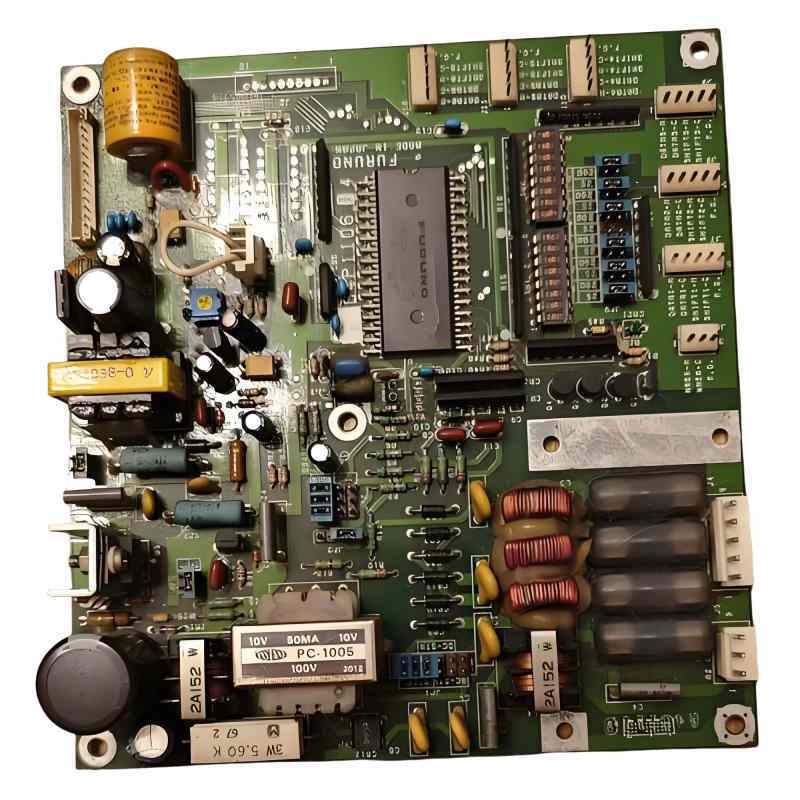

Tailored for marine navigation radar systems, FR4PCB.TECH’s PCB assemblies integrate ruggedized design features to withstand saltwater corrosion, humidity, and mechanical stress. The 12-layer HDI stack uses Rogers RO4350B™ low-loss dielectric material, optimized for X/Ku-band (8-18GHz) applications with controlled impedance (±8%) and PDN impedance <1mΩ. Laser direct imaging (LDI) ensures ±5μm trace accuracy, while hybrid FR4-TG180/PTFE lamination minimizes Z-axis CTE (<35ppm/°C) to prevent thermal cycling failures.
Signal Integrity & EMI Management
Advanced signal integrity optimization includes embedded microstrip design and 60dB magnetic shielding (18GHz attenuation) to suppress electromagnetic interference. The boards support high-speed data transmission (≥10Gbps) for radar video processing, with Infineon SiC MOSFET drivers (IMZA120R007M1H) enabling 100kHz pulse repetition frequency and <0.8mJ/pulse switching losses. Power integrity is maintained through decoupling capacitor networks and low-ESR planar transformers.
Environmental Robustness
Products undergo rigorous testing to meet marine standards:
- Sealing: IP67 rating (1m/30min submersion) with hermetic solder joints.
- Corrosion: 96-hour salt spray resistance (IEC 60068-2-52) using OSP+ENIG surface finish.
- Thermal: -55°C to +125°C operational range with junction temp monitoring (±0.5°C accuracy).
- Mechanical: 40G shock tolerance (11ms half-sine) and 500-cycle thermal shock (-65°C↔+150°C).
Certified Manufacturing Process
Fabricated under MIL-PRF-31032 Class 3 and IEC 60068 standards, the assembly line employs 3D X-ray inspection (void rate ≤2%) and AOI (false call <0.1%) for defect-free production. Components are sourced from MIL-STD-1275D-compliant vendors, with lead-free (RoHS III) and halogen-free options. Each board undergoes 24-hour burn-in and functional testing (e.g., eye diagram analysis, BER <10⁻¹²).
Global Compliance & Delivery
FR4PCB.TECH supports FCC Part 87, ETSI EN 303 363, and IMO resolution A.823(19) for maritime electronics. Rapid prototyping and 10K-unit batch production are delivered within 15 days, accompanied by free DFM analysis and signal integrity reports.
Contact FR4PCB.TECH at info@fr4pcb.tech for marine radar PCB solutions engineered for reliability in extreme conditions.
