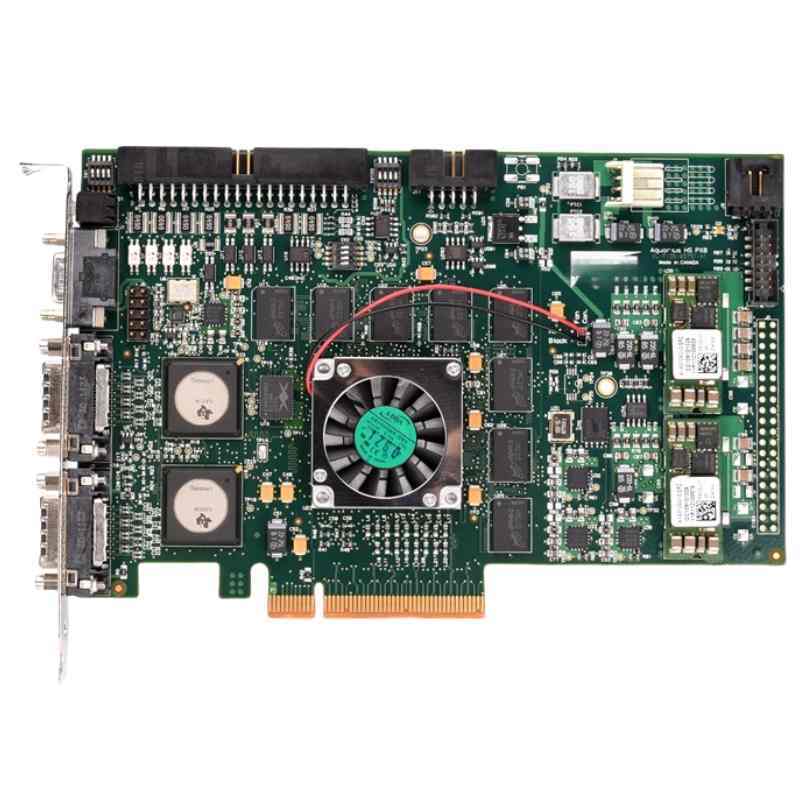

I. Core Design Challenges and Solutions
1. High-frequency Signal Integrity Optimization
- Material Innovation: Utilize ultra-low-loss substrates (Dk = 3.5 ± 0.05, Df ≤ 0.002), such as Rogers RO4835™, to ensure phase consistency of GHz-level TSN clock signals.
- Stack-up Architecture: Implement an 8-layer or above hybrid dielectric structure (FR-4 + high-frequency PP) to separate digital/analog power planes, reducing crosstalk by 30%.
- Impedance Control: Maintain a tolerance of ±5% for differential pairs at 90Ω (e.g., for USB3.0/PCIe), and use back-drilling technology to eliminate Stub effects (residual length < 10mil).
2. Hardware Implementation of Time-Sensitive Networking (TSN)
- Clock Synchronization Circuit:
- Route the 1588v2 PTP clock tree with a length matching tolerance of ≤5ps, and use a dedicated low-temperature-drift OCXO (±10ppb accuracy).
- Implement an isolated IEEE 802.1AS-rev clock distribution network with jitter suppression < 1ns.
- Traffic Shaping Hardware Acceleration:
- Integrate a time-aware shaper (TAS) in the FPGA to achieve microsecond-level frame preemption (802.1Qbu) through hardware queues.
II. Breakthroughs in Key Manufacturing Processes
| Process |
Technical Solution |
| High-Density Interconnect (HDI) |
Laser blind vias + via filling and plating (hole diameter 60μm), Every Layer Interconnect (ELIC) to increase routing density by 40% |
| Thermal Management |
Locally embed metal substrates (IMS) (aluminum substrate thermal conductivity ≥ 5W/mK), and use copper pillar arrays at the bottom of chips for heat dissipation |
| Conformal Coating Reinforcement |
Spray Parylene coating (thickness 15μm) after plasma cleaning, passing a 96h salt spray test |
| Soldering Reliability |
Use lead-free SnAgCu (SAC305) solder + nitrogen reflow soldering (oxygen content < 50ppm), with a BGA void rate ≤ 7% |
III. Industrial-grade Reliability Assurance System
1. Environmental Stress Design
- Wide-temperature Components (-40℃~125℃): Select the Xilinx Zynq UltraScale+ MPSoC for the main control, compliant with the AEC-Q100 standard.
- Vibration Protection:
- Design board-level reinforcing ribs and use underfill adhesive (CTE matching coefficient < 25ppm/℃) for critical BGA solder joints.
- Pass the IEC 60068-2-64 random vibration test (20Grms, 50~2000Hz).
2. Electromagnetic Compatibility (EMC) Countermeasures
- Four-layer Shielding Architecture:
- Surface layer: Use electromagnetic absorbing materials (Eccosorb®) to suppress common-mode radiation.
- Inner layers: Use segmented ground isolation slots to separate sensitive circuits.
- Interfaces: Use common-mode chokes + TVS arrays (ESD protection 30kV).
- Compliant with EN 55032 Class A/CISPR 32 standards for industrial environments.
IV. Protocol Conformance Testing and Verification
- OPC UA Stack Hardware Offloading:
- Use a dedicated encryption acceleration core (AES-256/SHA-2) to process secure channels, reducing CPU load by 50%.
- TSN Performance Verification:
- End-to-end latency testing (Ixia tester): TSN stream priority scheduling latency ≤ 50μs (@100Mbps load).
- Seamless redundancy verification: HSR/PRP ring network switching time < 10ms (IEC 62439-3).
- Interoperability Certification:
- Pass the OPC Foundation CTS 1.04 and Avnu TSN conformance tests.
V. Integration Directions of Cutting-edge Technologies
- Embedded Passive Components: Integrate thin-film resistors/capacitors (with a precision of ±0.1%) within the PCB inner layers, reducing surface-mount devices by 40%.
- Heterogeneous Integration: Use silicon interposers to achieve multi-chip modules (MCMs), shortening high-speed signal paths by 30%.
- AI-driven Predictive Maintenance: Embed temperature/current sensors and upload edge computing results through the OPC UA Pub/Sub protocol.
Conclusion
The PCBA of OPC UA over TSN communication modules serves as the "synapses" of the Industrial Internet of Things (IIoT). Its manufacturing requires breakthroughs in three key dimensions: high-frequency materials, nanoscale interconnects, and protocol hardware implementation. By adopting a hybrid stack-up architecture to ensure signal integrity, ELIC processes to achieve ultra-high-density routing, and Parylene coatings to resist chemical corrosion, it ultimately meets the stringent requirements of Industry 4.0 for deterministic communication (≤1μs jitter), a 20-year lifespan, and functional safety (SIL3). With the increasing integration of TSN chips and the implementation of the new OPC UA FX standard, future PCBAs will evolve towards a "three-in-one" architecture that integrates control, communication, and computation on a single board.
