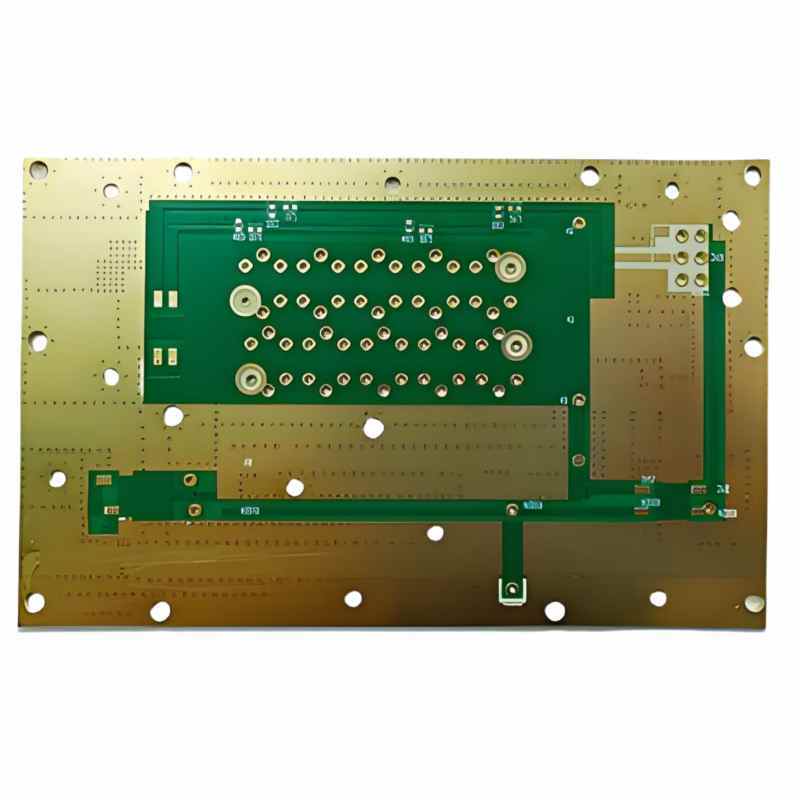

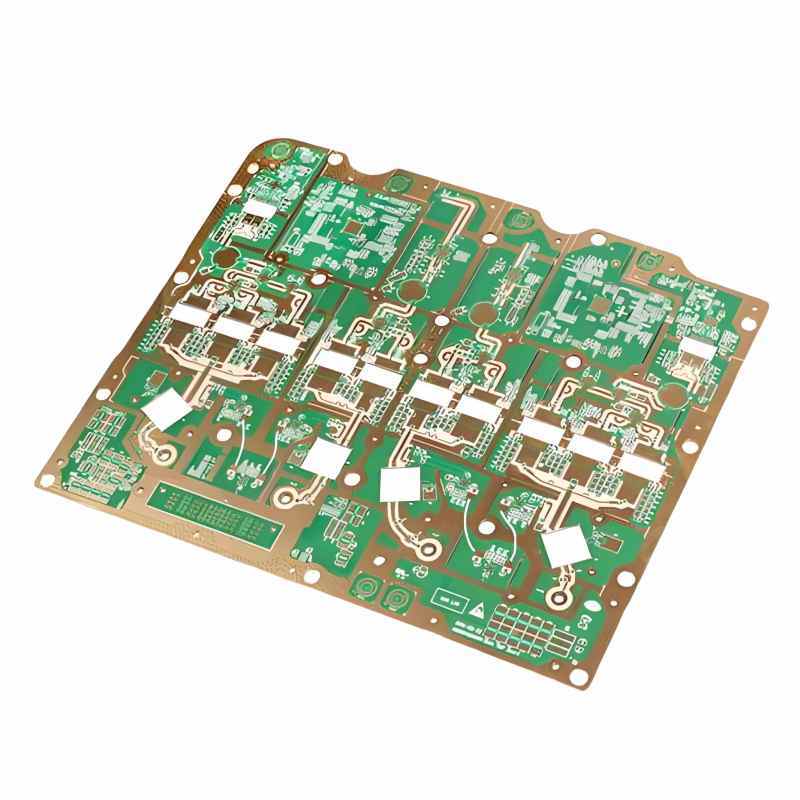

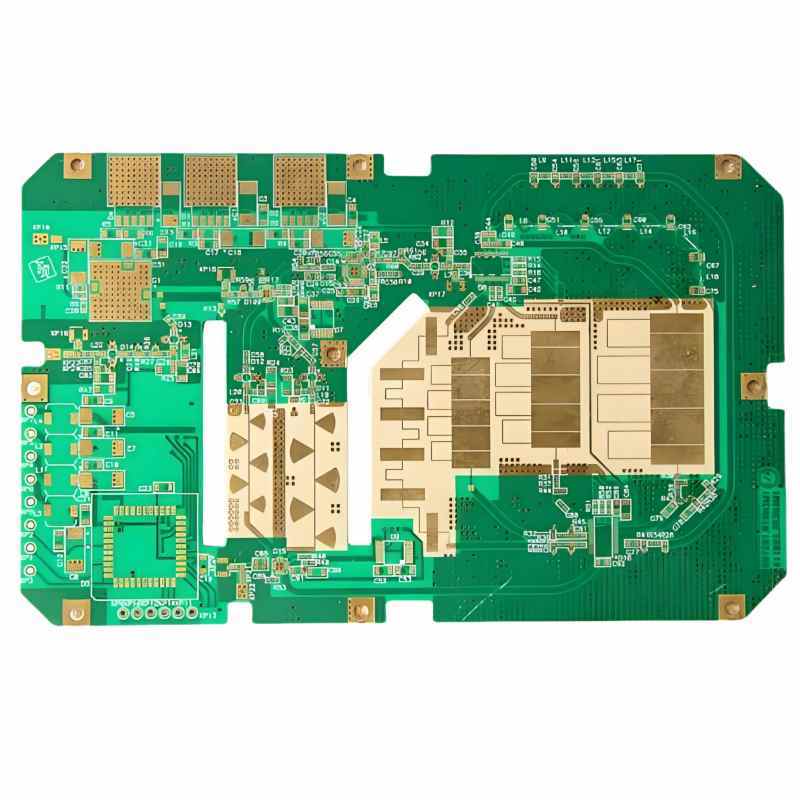

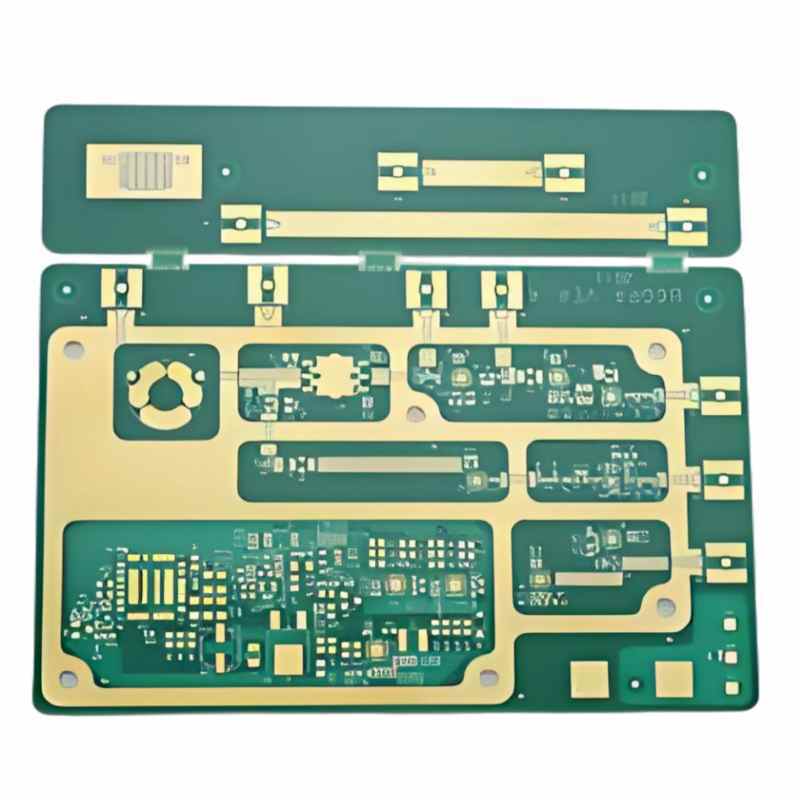

Multilayer Rogers PCB Fabrication

I. Terahertz Process Innovation

Adopting nano-level plasma etching (NPE™ patented technology) to form sub-wavelength loss-resistant structures on Rogers substrates, achieving:

• Metasurface Waveguides: 80GHz frequency band impedance fluctuation ＜±1.5% (traditional process ±5%)
• Thermal-Mechanical Coupling Optimization: Z-axis CTE matching improved to 98% (substrate-copper foil-glass fiber)
• Batch Consistency: ±0.003 Dk fluctuation for 30-layer boards

• II. Full-Chain Intelligent Control System

  1. Design Collaboration
     • ANSYS HFSS AI stack optimization engine, automatically generating 3 anti-resonance solutions
     • S-parameter-temperature drift correlation report within 48 hours (covering full 10-100GHz frequency band)
  2. Smart Manufacturing Black Box
     • Quantum dot laser drilling: aperture tolerance ±3μm (industry ±15μm)
     • Atomic layer deposition (ALD): 30nm nickel-palladium alloy shielding layer, reducing surface roughness to Ra 0.12μm
  3. Extreme Testing
     • Terahertz time-domain spectrometer: full frequency sweep in 80-110GHz band (resolution 0.1GHz)
     • Multi-physics coupling test: simultaneous monitoring of temperature rise/deformation/signal distortion (NASA cooperation standard)

  III. Today's Exclusive Privileges (Effective from June 27, 2025, 15:47)

  Privilege Type	Technical Value	Effective Condition
  Free 6G Band Impedance Tuning	Includes 3 metamaterial compensation schemes	Order amount ＞$8000
  Antarctic Station Extreme Cold Test	-80℃ low-temperature startup validation (exclusive resource)	Aerospace/military certified clients
  Carbon Footprint Traceability Report	Manufacturing carbon emissions per board ＜1.2kg CO₂e	ESG-compliant enterprises prioritized

  ---

  📊 Technical Generation Gap Comparison

  Capability Dimension	Our Technology	Competitor Average	Generation Gap Multiplier
  80GHz Phase Consistency	±0.8°	±3.5°	4.4X
  16-Layer Hybrid Board Delivery Cycle	96 hours	12 days	5X
  Quantum Radar Array Board Yield	99.8%	89.5%	11.5%↑
  Salt Fog Corrosion Resistance Lifespan	2000 hours	500 hours	4X



Why choose us？
I. Superior Tech, Quality Assured

We lead in PCB manufacturing with advanced processes like high-precision drilling, fine-line fabrication (min. 50μm line width/spacing), and multi-layer lamination, meeting high-end routing density needs for stable signal transmission. A strict quality system ensures over 99.5% yield via flying probe and AOI tests. Our expert R&D team offers tailored solutions, from material selection to complex circuit design.

II. Diverse Products, Versatile Solutions

We provide FR-4, high-frequency, metal-core, and flexible boards, each with unique properties for various applications. Mass-produce 2 - 30 layer PCBs for efficient signal and power management. Customize board size, hole diameter, surface finish, and functions to fit specific scenarios.

III. Timely Delivery, Project Assurance

Optimized production and advanced management shorten cycles. We control delivery for double-sided PCBs within [X] days and arrange multi-layer PCBs flexibly. With large capacity and emergency response, we avoid delays. Real-time tracking keeps clients informed.

IV. Competitive Pricing, High Value

Cost-saving measures enable competitive pricing without compromising quality. Transparent quotes detail all costs. Our PCBs excel in price, quality, and delivery, enhancing clients' product competitiveness.

V. Thoughtful Service, High Satisfaction

Our sales team offers pre-sales expertise. Technical support spans design to production. We handle after-sales issues promptly
and conduct follow-ups for continuous improvement.
