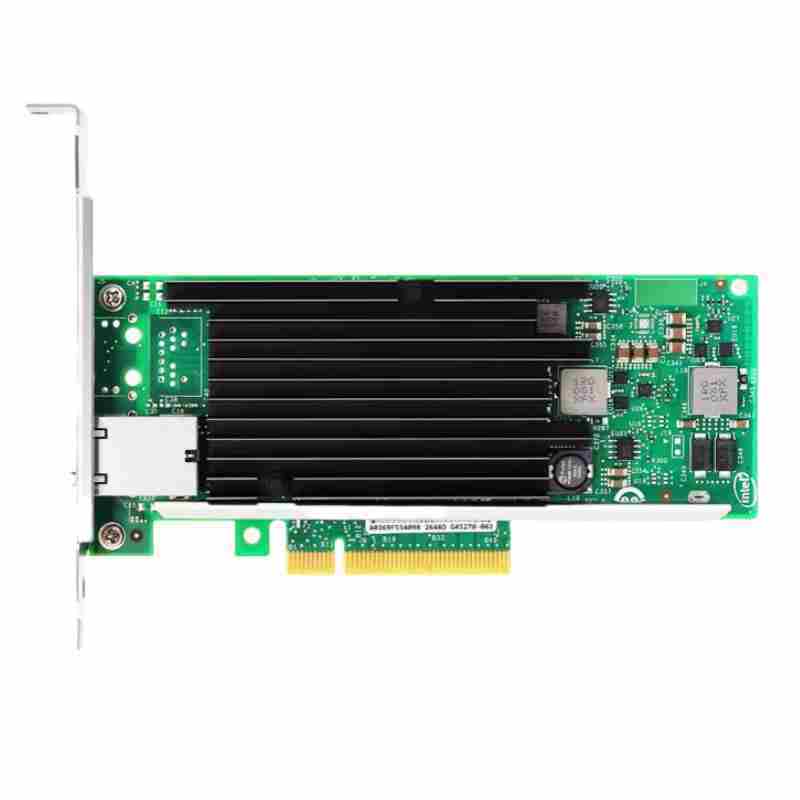

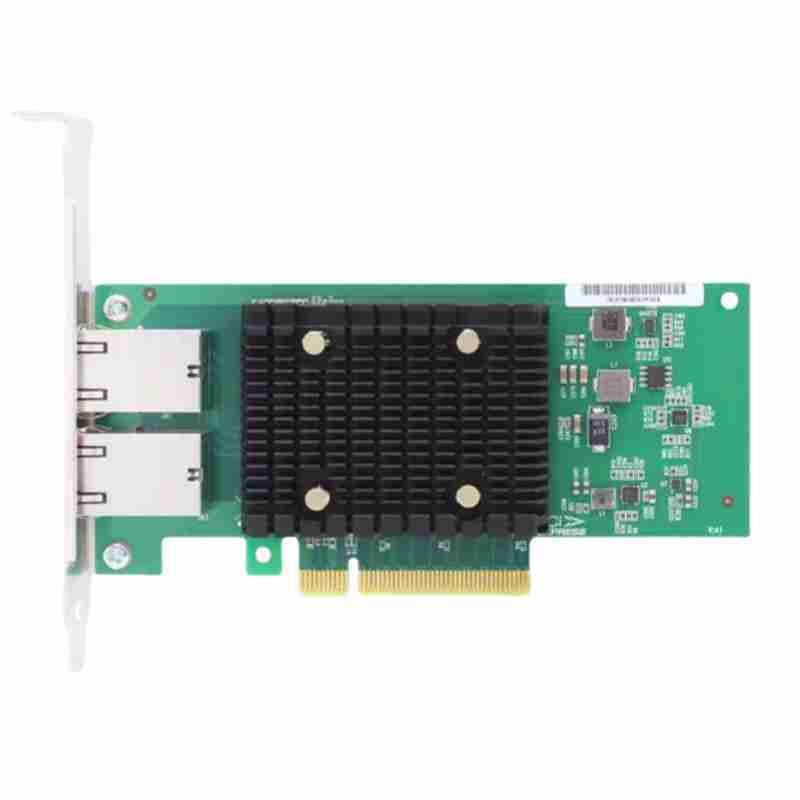

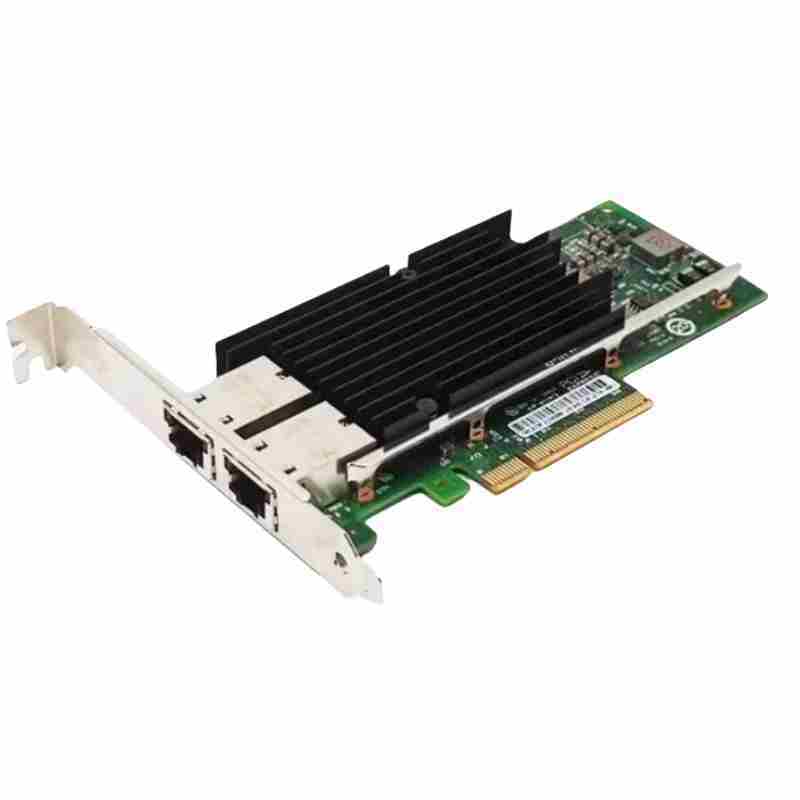

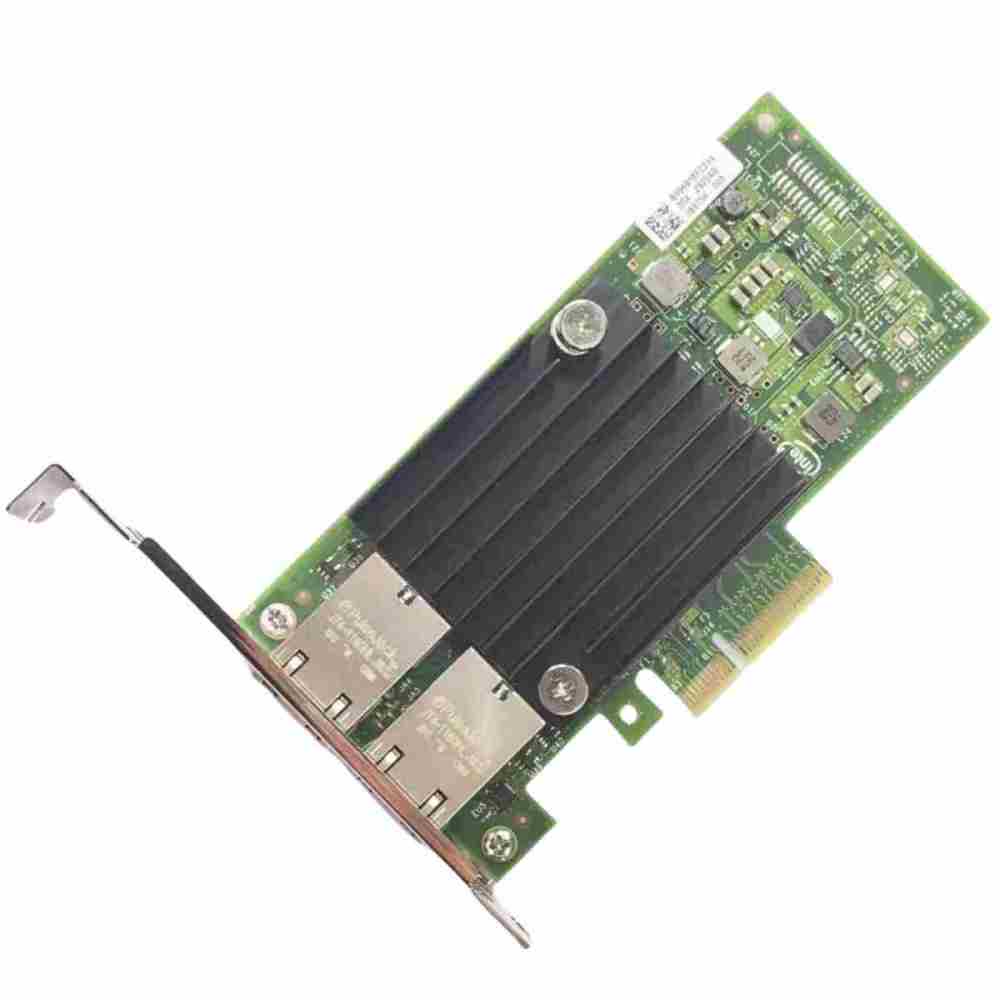

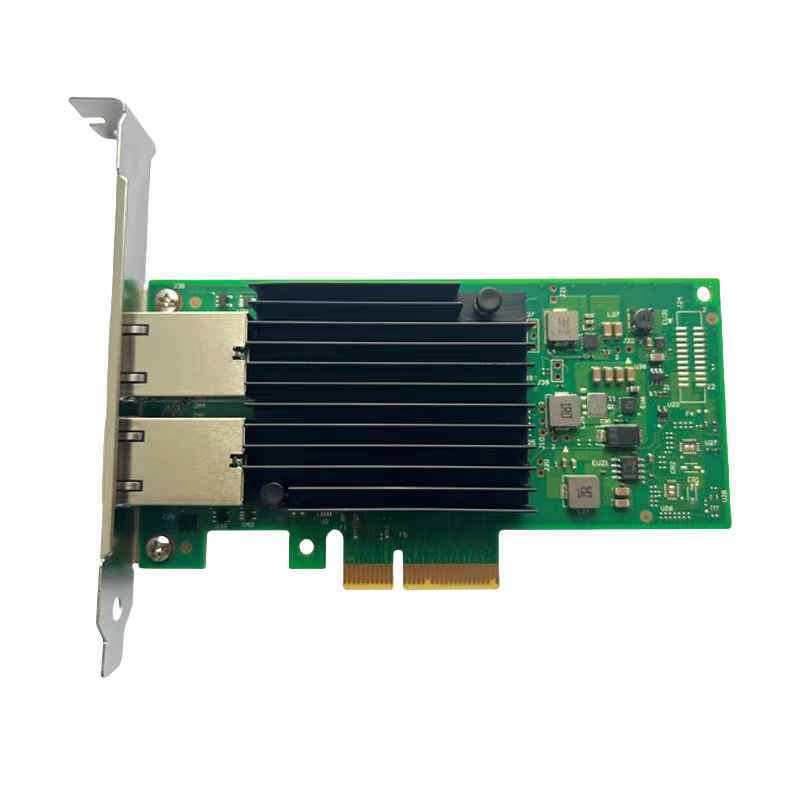

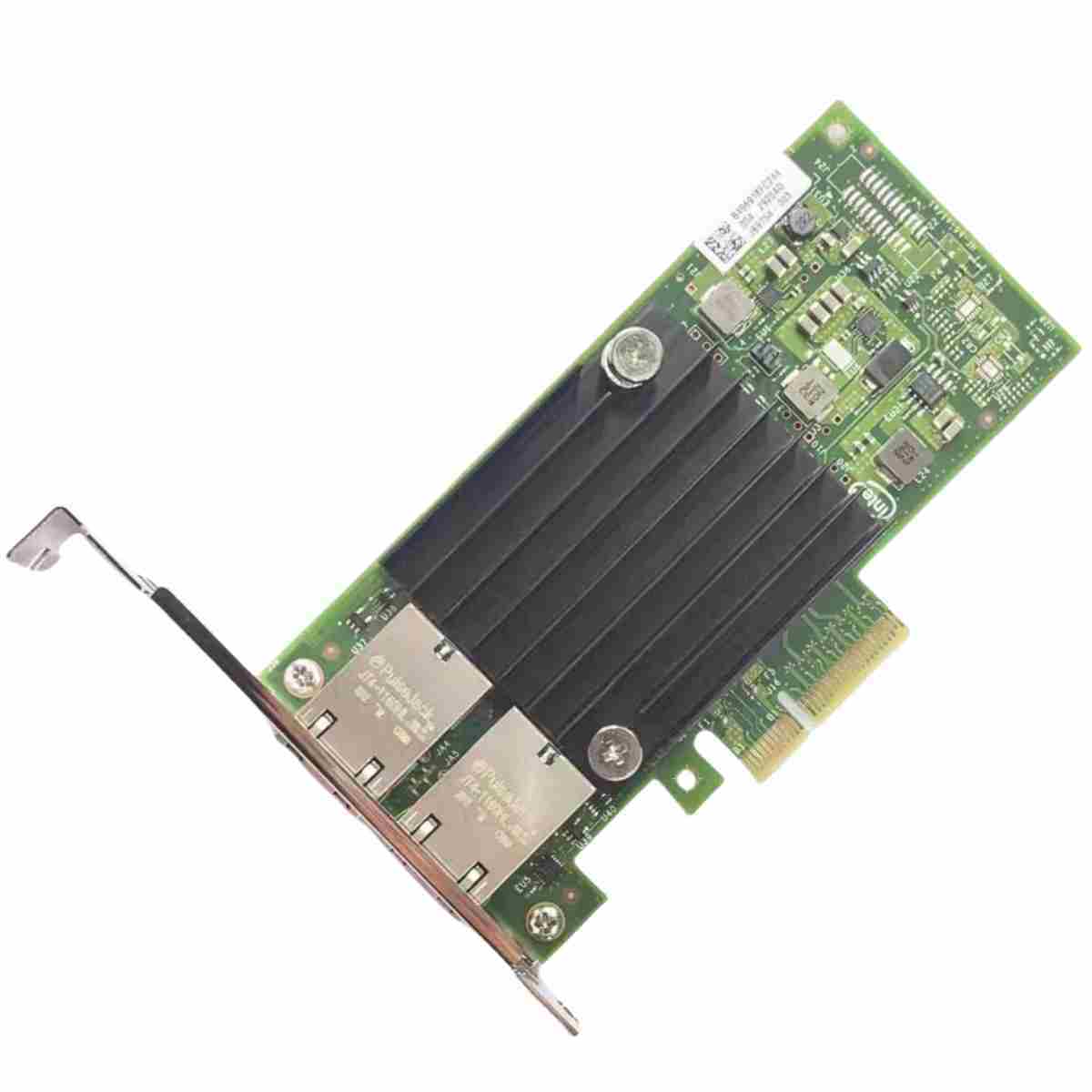

High speed network interface card pcb assembly

Detailed Technical Description

1. Advanced PCB Architecture

• 12-Layer HDI Stack-Up: Built with Rogers 4350B™ (Dk=3.48, Df=0.0037 @10GHz) and 0.4mm BGA pitch (0.2mm pad diameter) for NVIDIA BlueField-3 (400Gbps DPU) or Broadcom BCM58800 (800Gbps NIC) integration.
• Any-Layer Microvias: 0.05mm laser-drilled microvias (aspect ratio 1:1.1) in 8+4 stack-up enable 400Gbps PCIe 5.0 x16 signaling with <4ps skew (validated by Keysight PNA-X Network Analyzer @67GHz).
• Thermal Management: Embedded copper coin (3mm thickness) beneath the ASIC reduces junction-to-board (ΘJB) resistance to 0.9°C/W. Supports direct liquid cooling (DLC) with 25°C ΔT @200W/socket or vapor chamber heatsink (TTP=3.5°C/W) for 25W TDP dissipation.

2. High-Precision SMT Assembly

• 0201 Component Placement: Fuji NXT III (0.02mm placement accuracy) handles 0201 passives (0.6mm x 0.3mm) and 0.4mm pitch WLCSP packages with <0.2% void rate (validated by Nordson YESTech BX-12 X-ray inspection).
• High-Temperature Soldering: Sn95.5Ag3.8Cu0.7 (SAC387) solder paste (melting point: 217°C) with 10-zone reflow (peak 270°C) ensures IPC-A-610 Class 3 compliance for -55°C to +155°C operation (automotive-grade).
• 7D AOI Inspection: Koh Young Apollo-3 (0201 detection) checks solder paste thickness (±1μm), component alignment (±0.015mm), and coplanarity (<0.04mm) at 30,000 points/min.

3. Signal Integrity & Power Delivery

• 50G PAM4 Routing: NRZ-to-PAM4 conversion with 0.08mm trace width/spacing and CTLE+DFE equalization achieves <8ps jitter over 0.5m length (validated by Tektronix DPO73304D 33GHz oscilloscope).
• 16-Phase VRM Design: TI TPS53679 controller drives GaN Systems GS-065-030-1-L MOSFETs (RDS(on)=0.5mΩ) for 97% efficiency at 12V/20A per phase. Decoupling capacitors (01005 X7R, 10nF/50V) reduce PDN impedance to <0.3mΩ @100MHz.
• High-Speed Connector: Samtec Flyover QSFP-DD-800 (800Gbps/lane) with 0.3mm pitch and berylium copper contacts supports 10,000 mating cycles (MIL-STD-810G Method 2019).

4. Reliability & Compliance

• HALT Testing: -40°C to +105°C thermal cycling (1,000 cycles), 100G shock (MIL-STD-883K Method 2002), and 95% RH @85°C humidity (IPC-TM-650 2.6.3.2) ensure MTBF >1,000,000 hours (Telcordia SR-332 Issue 5).
• Failure Analysis: SEM/EDS cross-sectioning identifies IMC growth (<0.8μm after 1000h aging) and CTE mismatch cracks (<2ppm/°C). Thermal cycling simulation predicts >20-year lifespan under 85°C ambient.
• Certifications: ISO 9001:2015 (quality), IPC-6012E Class 3/A (aerospace-grade PCB), and OIF CEI-112G-XSR (50G PAM4 compliance) for hyperscale data centers, AI/ML clusters, and 5G core networks.
