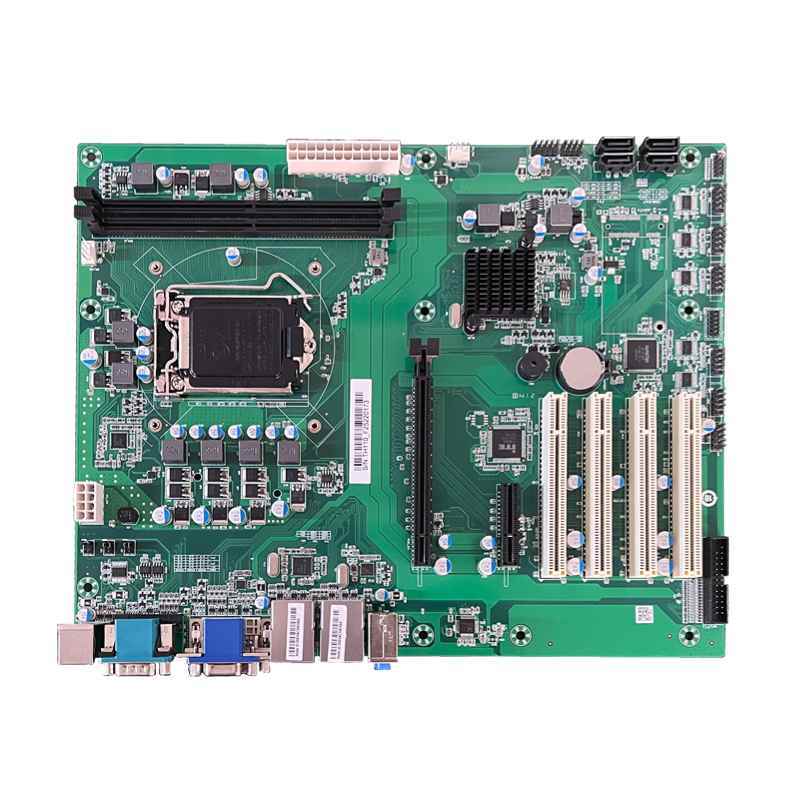

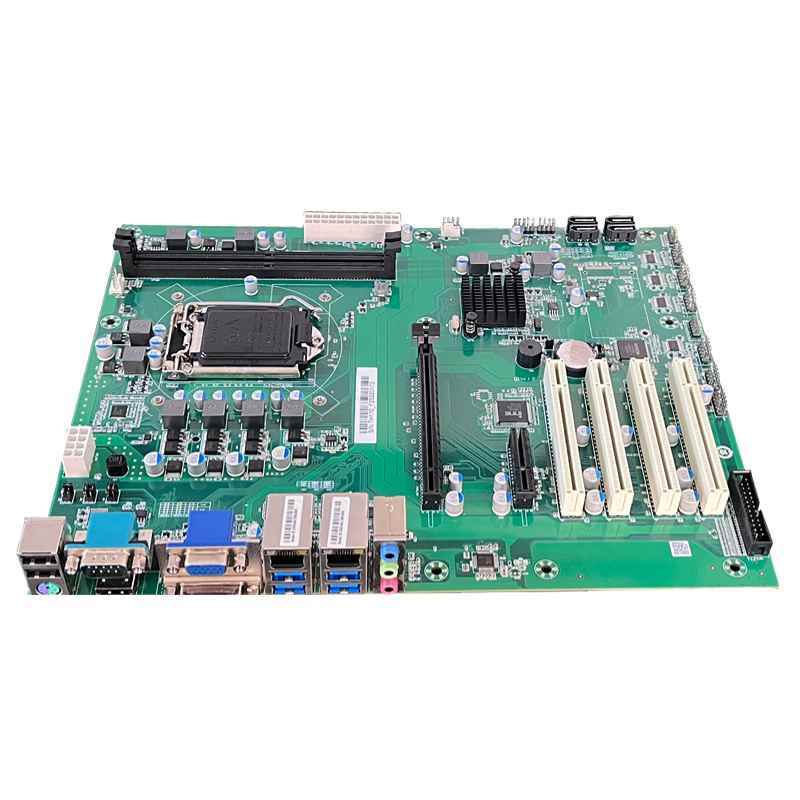

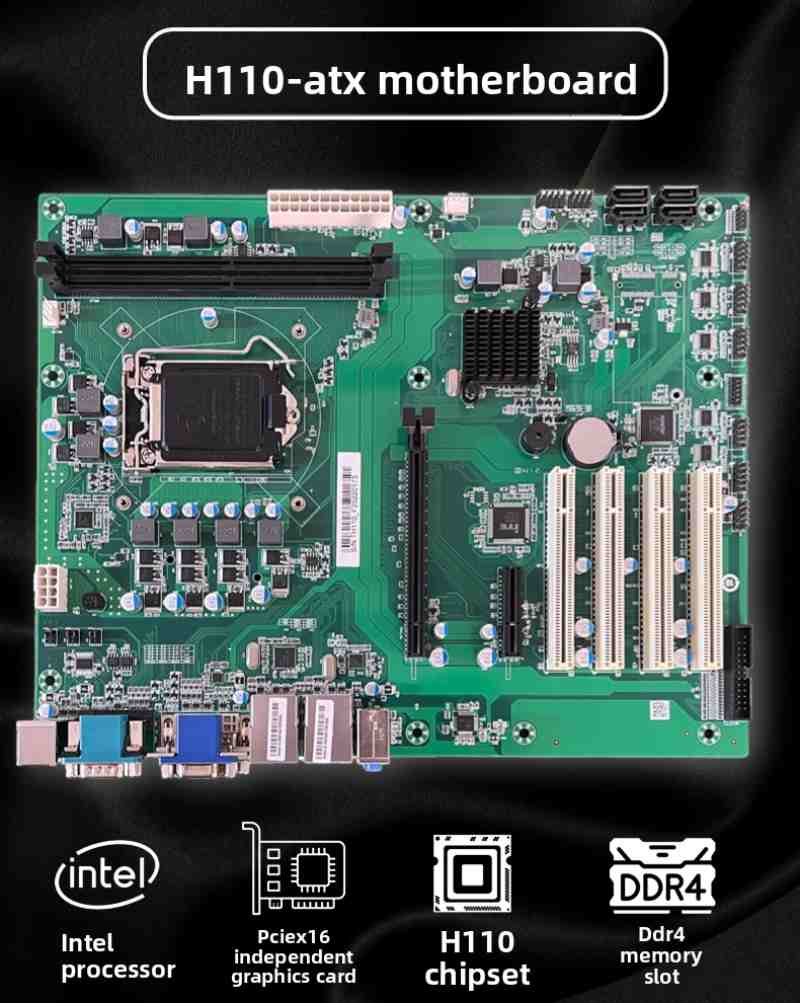

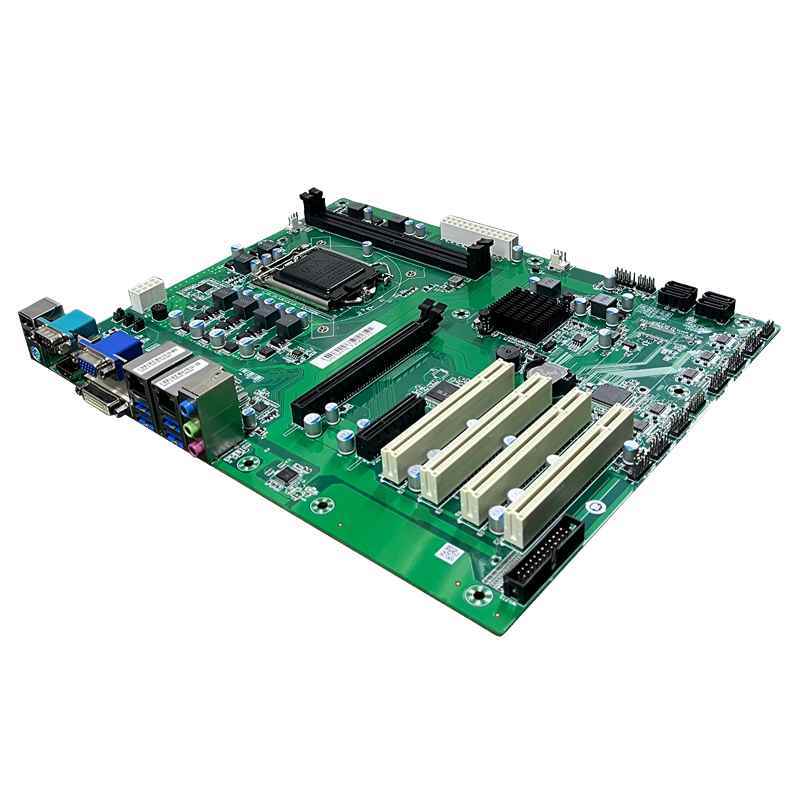

H110 ATX Motherboard: Supporting 6th/7th/8th/9th Gen CPUs, 4 PCI Slots, Wall-Mounted/4U Industrial Computer Motherboard
| Parameter |
Details |
| CPU |
Supports Intel LGA1151 Gen6/7/i3/i5/i7 CPU |
| Supports Pentium/Celeron CPU |
| Memory |
2×288PIN DDR4 UDIMM memory slots, single slot 16GB, max support 32GB |

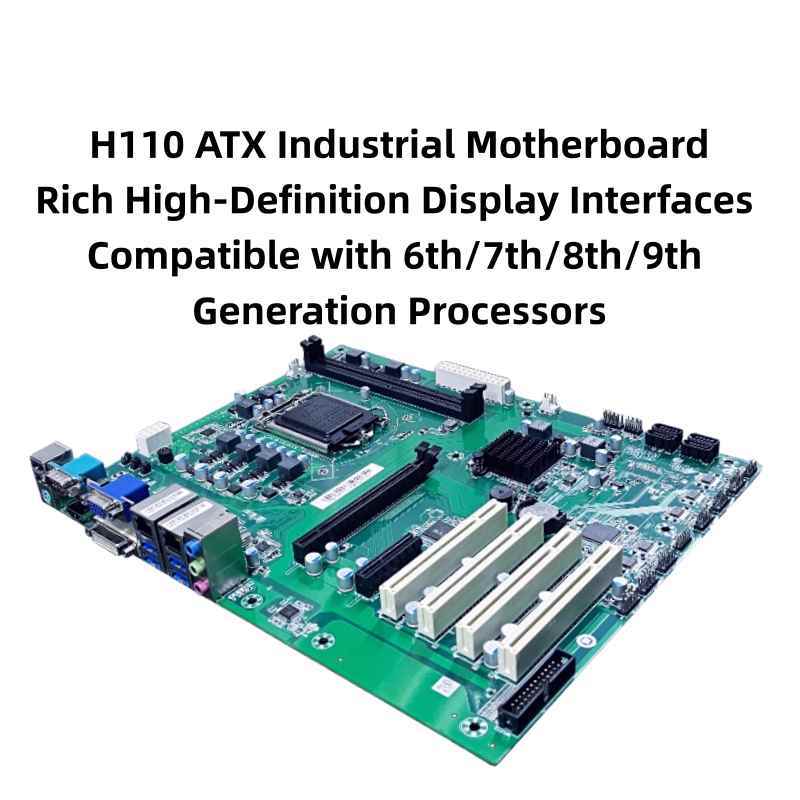

| Display Interface |
1×DP |
| 1×VGA (max resolution 1920X1200@60Hz) |
| 1×HDMI |
| Supports independent dual display output |
| Audio |
Adopts HDA standard, supports rear panel |
| Mic-in |
| Line-in |
| Line-out |
| Network |
2×10/100/1000Mbps network interfaces |
| Storage |
4×SATA interfaces (support SATA3.0 standard) |

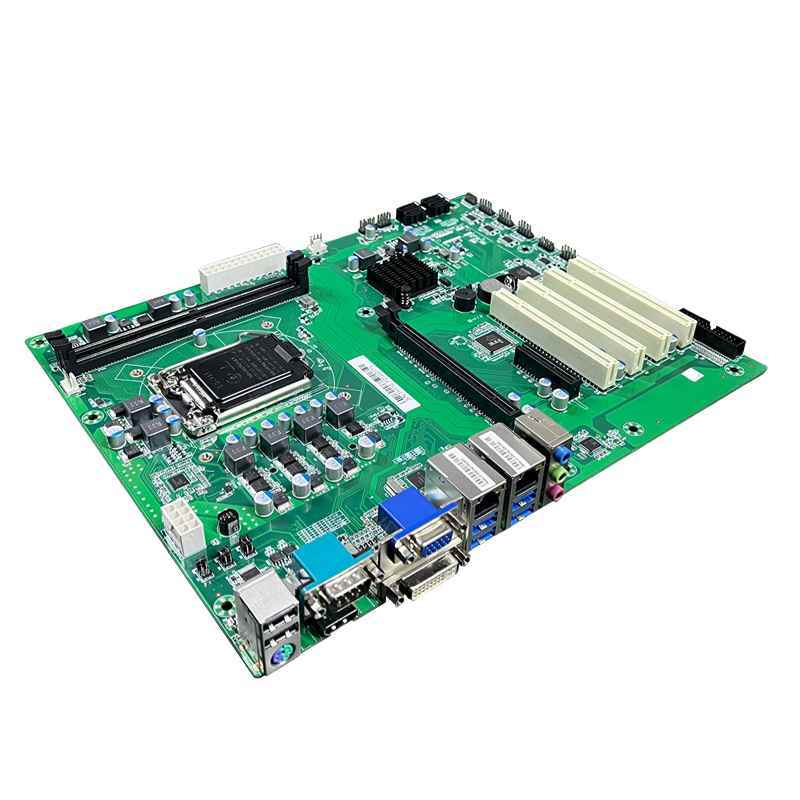

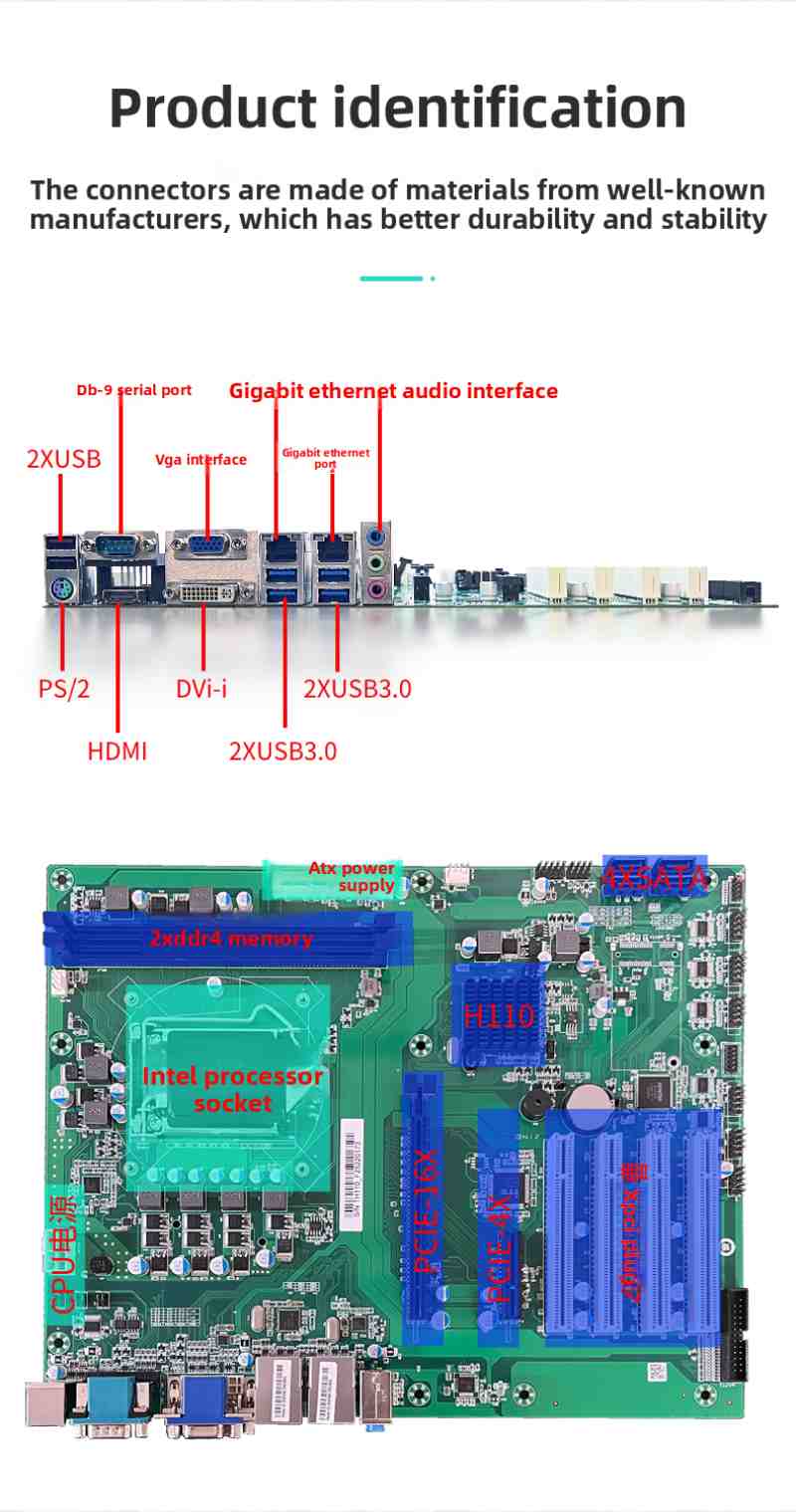

| 1×MSATA hard disk interface |
| I/O Interfaces |
6×COM, expandable to 10 RS232 ports, among which COM1 supports RS-232/RS422/RS485 mode selection |

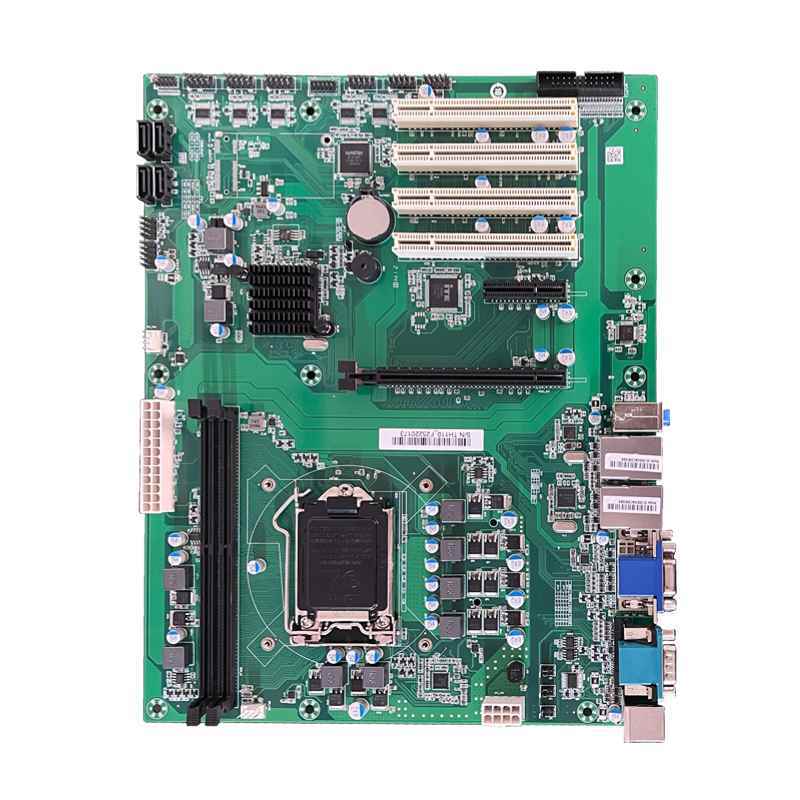

| 6×USB2.0 interfaces |
| 4×USB3.0 interfaces |
| 1×PS/2 keyboard/mouse interface |
| 1×8-way digital I/O interface |
| 1×LPT interface (optional) |
| Expansion Slots |
1×PCIe x16 slot, supports PCIe3.0 specification |
| 1×PCIe x4 slot, supports PCIe2.0 specification |
| 4×32-bit PCI slots, supports PCI Rev2.3 standard |
| Working Environment |
0°C ~ 60°C, 5% ~ 95% (non-condensing) |
| Storage Environment |
-20°C ~ 80°C, 5% ~ 95% (non-condensing) |
| Watchdog |
255-level programmable seconds/minute, supports timeout interrupt or system reset |
| Power Supply |
Adopts ATX power supply, supports S0, S4, S5 |
| Dimensions |

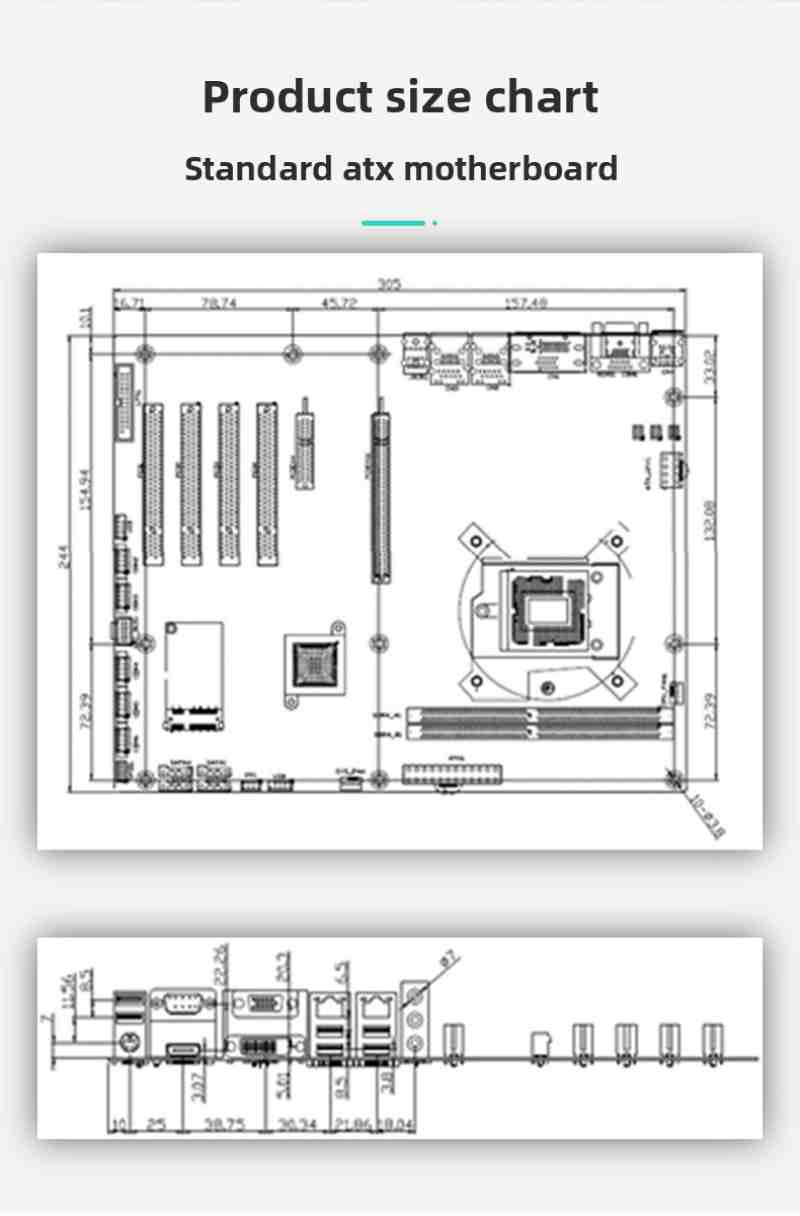

305mmX244mm |
| Electrostatic Level |
Level 3 |
Advantages and Features:
- Multi-Generation CPU Support: Compatible with 6th, 7th, 8th, and 9th generation Intel processors, offering flexibility and future-proofing for industrial computing needs.
- Rich Expansion Capabilities: Features 4 PCI slots, allowing for extensive hardware expansion and customization to meet diverse industrial application requirements.
- Industrial-Grade Design: Built for durability and reliability in harsh industrial environments, with wall-mounted or 4U rack-mountable options for easy installation and space-saving.
- Stable Performance: Ensures stable and efficient operation, even under heavy loads or in challenging conditions, crucial for continuous industrial processes.
- Wide Compatibility: Supports a variety of industrial peripherals and devices, facilitating seamless integration into existing systems.
Application Scenarios:
- Industrial Automation Control: Used in manufacturing execution systems (MES), programmable logic controller (PLC) integration, and robotics control, providing reliable computing power for precise automation.
- Data Acquisition and Monitoring: Ideal for real-time data acquisition, processing, and monitoring in industrial settings, such as power plants, water treatment facilities, and oil refineries.
- Machine Vision Systems: Supports high-speed image processing and analysis for quality control, defect detection, and assembly verification in production lines.
- Intelligent Transportation Systems: Applied in traffic management, vehicle monitoring, and toll collection systems, ensuring efficient and safe transportation operations.
- Energy Management: Utilized in energy monitoring, distribution, and control systems for smart grids and renewable energy installations, optimizing energy usage and reducing costs.
In summary, the H110 ATX motherboard is a versatile and robust solution for industrial computing, offering multi-generation CPU support, rich expansion capabilities, and industrial-grade design. It is suitable for a wide range of application scenarios, including industrial automation, data acquisition, machine vision, intelligent transportation, and energy management.
