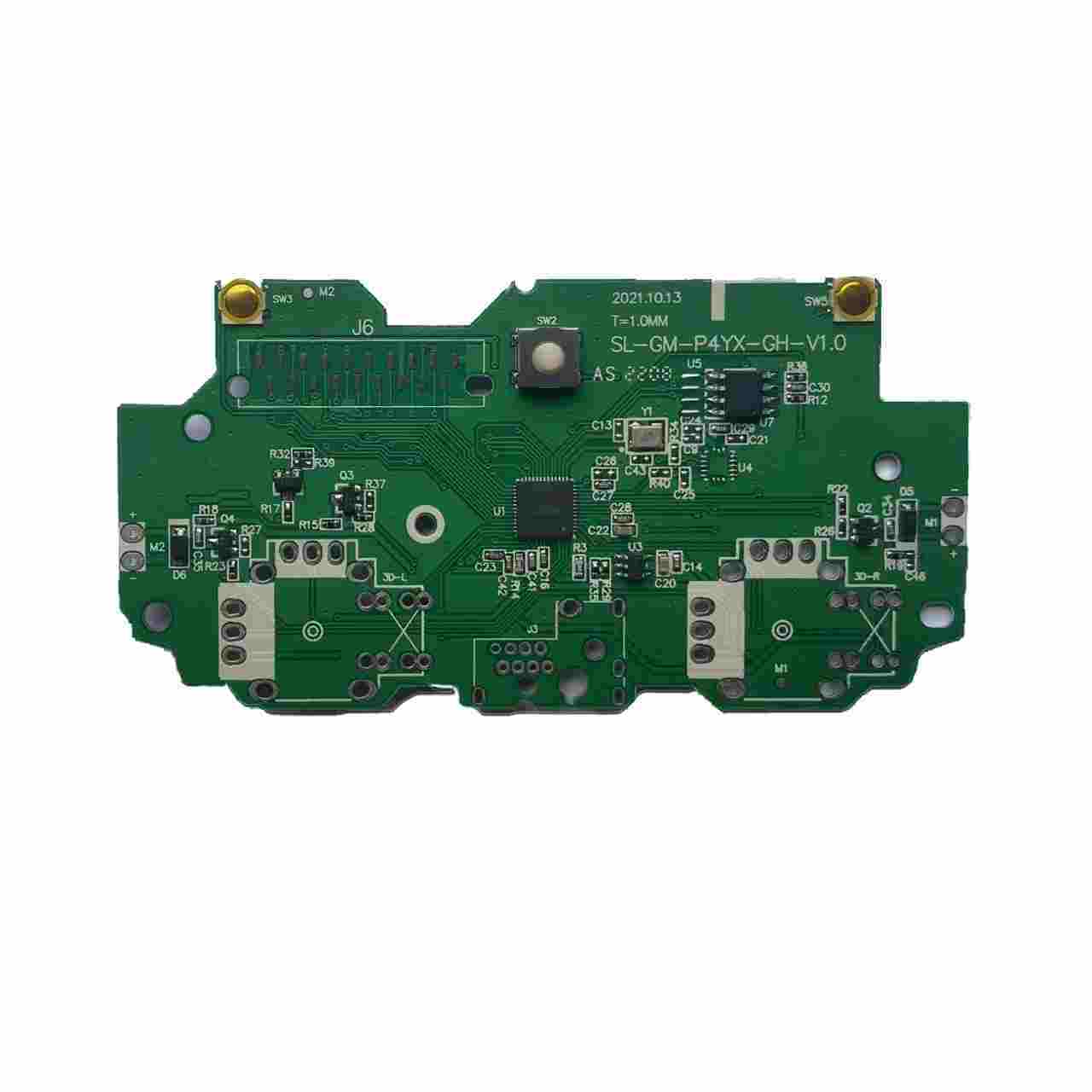

1. Introduction to Consumer Electronic Game Console PCBs
The printed circuit board (PCB) is the backbone of modern consumer electronic game consoles, integrating high-performance computing, graphics, and connectivity. Consoles like the PlayStation 5 (PS5), Xbox Series X|S, and Nintendo Switch rely on multi-layer, high-speed PCBs with advanced thermal and power management to deliver 4K gaming, ray tracing, and ultra-low latency.
2. Key Components in Game Console PCBs
- System-on-Chip (SoC) –
- PS5: Custom AMD Zen 2 (8-core) + RDNA 2 GPU (10.28 TFLOPS, 36 CUs).
- Xbox Series X: Similar AMD chip (12 TFLOPS, 52 CUs).
- Nintendo Switch: Nvidia Tegra X1 (ARM Cortex-A57 + Maxwell GPU).
- Memory (RAM & Storage) –
- PS5/Xbox Series X: 16GB GDDR6 (448GB/s bandwidth).
- Switch: 4GB LPDDR4 (25.6GB/s).
- Storage: NVMe SSD (PS5: 5.5GB/s), eMMC (Switch: 400MB/s).
- Power Delivery & Cooling –
- Voltage Regulator Modules (VRMs) for stable power.
- Vapor chamber cooling (PS5), large heatsinks (Xbox), passive cooling (Switch).
3. PCB Manufacturing & Assembly Process
- Multi-Layer PCB Fabrication (HDI Technology) –
- PS5/Xbox use 10-12 layer PCBs for signal integrity.
- High-Density Interconnect (HDI) for compact designs.
- Surface-Mount Technology (SMT) Assembly –
- Automated pick-and-place for 01005 components (0.4mm x 0.2mm).
- Reflow soldering for BGA (Ball Grid Array) chips (e.g., AMD SoC).
- Thermal & EMI Management –
- Copper heat spreaders, thermal pads, liquid metal (PS5 APU).
- EMI shielding to reduce interference with wireless modules.
4. Technical Challenges in Console PCB Design
- Signal Integrity – HDMI 2.1 (48Gbps), PCIe 4.0 (16GT/s) require impedance-controlled routing.
- Thermal Dissipation – PS5 APU reaches ~200W TDP, requiring advanced cooling.
- Miniaturization – Switch uses flexible PCBs for portability.
5. Future Trends in Game Console PCB Tech
- 3D-Stacked SoCs (AMD 3D V-Cache, TSMC’s CoWoS).
- GDDR7 Memory (36Gbps, 2025+) for higher bandwidth.
- Advanced Cooling (Liquid cooling, graphene heat spreaders).
