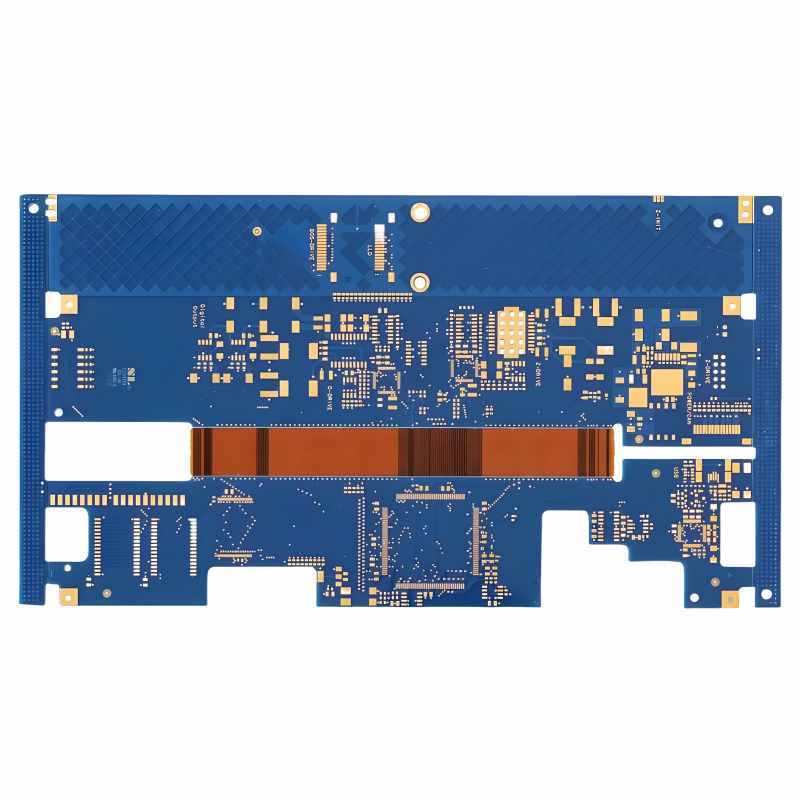

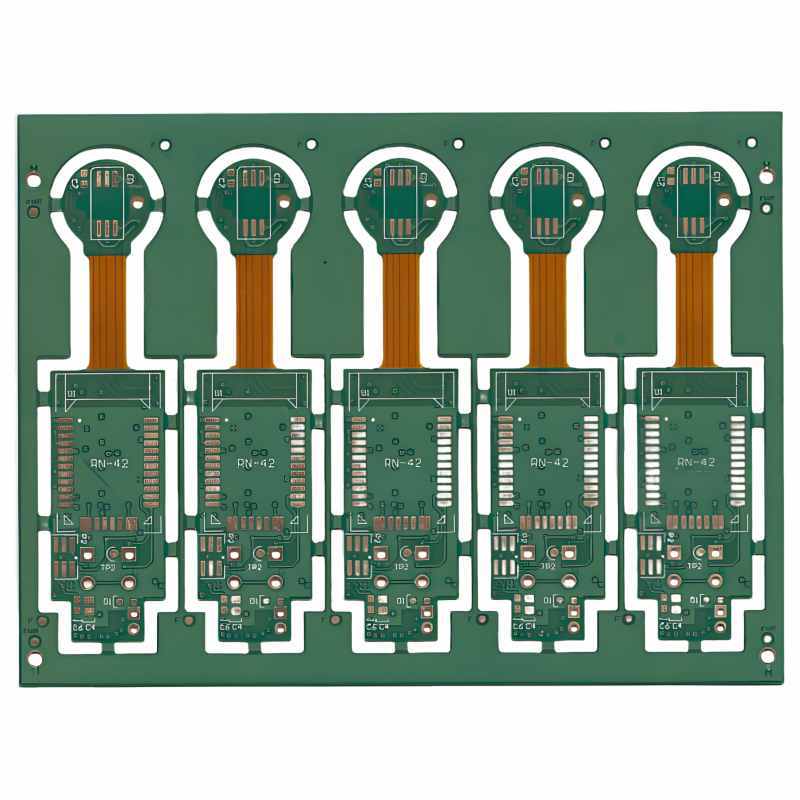

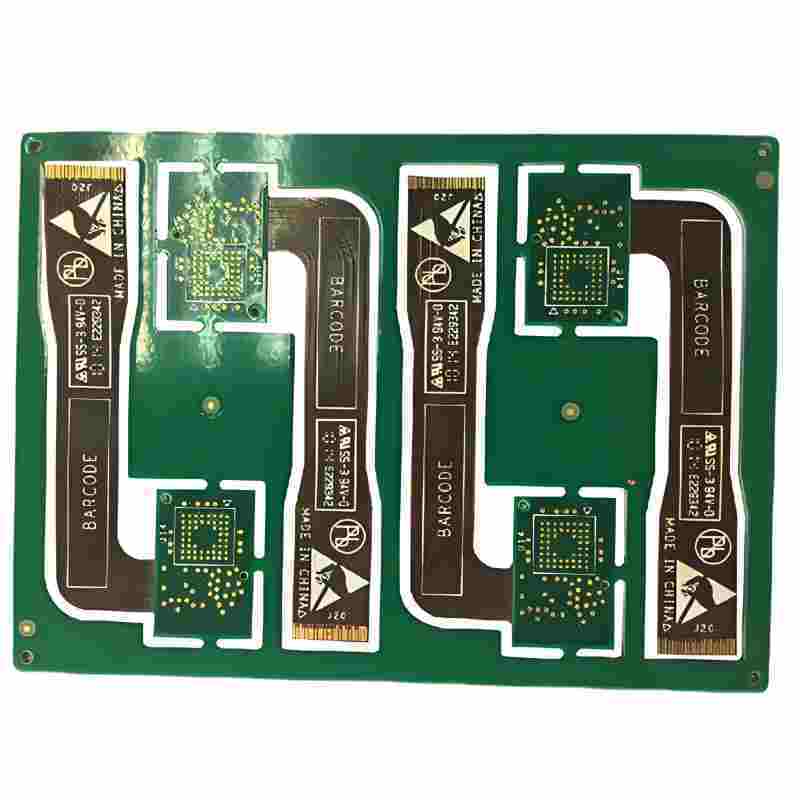

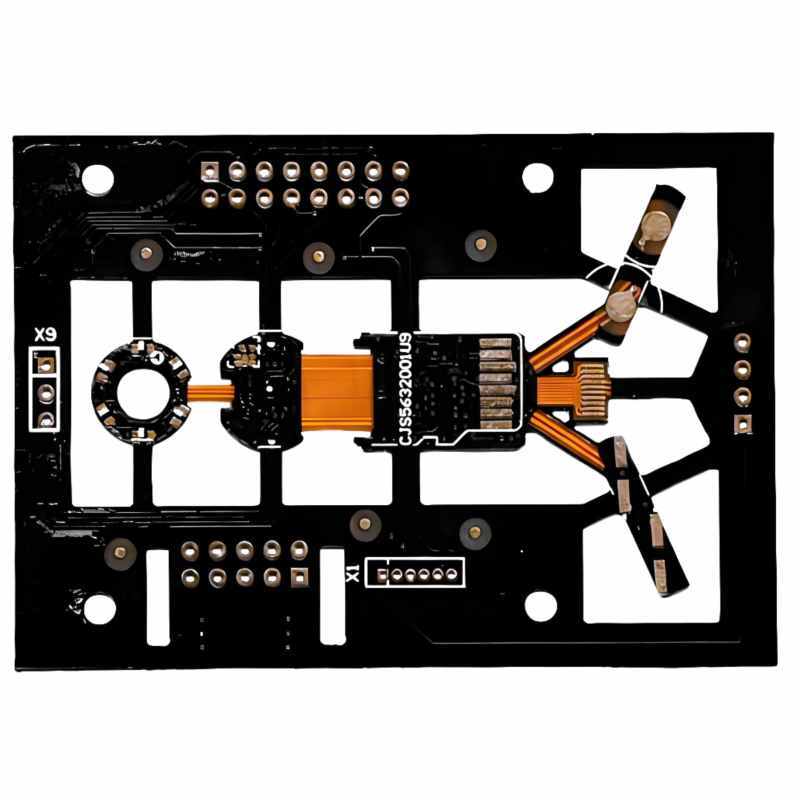

Automotive Rigid-Flex Prototype IPC-6013: Precision Engineering for Automotive Excellence
1. Certification and Material System
Dual Compliance Anchors
✅ IPC-6013DA Class 3 (2024 Revised Edition) + AEC-Q100 Grade 0 (for continuous operation at 150℃)
✅ Substrate Material: Ceramic-filled polyimide (Arlon 85NT, with a glass transition temperature Tg = 220℃), and the Z-axis expansion rate meets the insulation resistance requirement of 10¹²Ω.
🔁 It has passed 500,000 charge-discharge deformation cycles (verified by CATL in 2025).
2. Process Innovation and Failure Prevention
High-Frequency Signal Integrity
⚡ Laser-induced graphene (LIG) antennas: Insertion loss is reduced by 60% (with a 40% cost reduction compared to PTFE).
🛡️ Nano-silver adhesive electromagnetic shielding: EMI suppression is greater than 35dB (within the frequency range of 100MHz - 6GHz).
Mechanical Reliability Enhancement
🧪 The rigid-flex transition zone is reinforced with FR-4 and filled with silver adhesive, providing an impact resistance greater than 80G (exceeding the national standard by 50%).
⚙️ CO₂ laser microvia technology: The hole diameter is less than or equal to 75μm (supporting a 0.15mm BGA pitch).
3. Mass Production Quality Assurance
Zero-Defect Control
🔍 The defect capture rate of 3D AOI + flying probe testing is greater than 99.99%.
📉 The batch failure rate is predicted to be less than 1ppm over an 18-year service life (with a 99.5% confidence level).
🧪 It has a resistance to engine oil/coolant corrosion of over 6,000 hours (exceeding the Volkswagen PV3930 standard by 20%).
Why choose us？
I. Superior Tech, Quality Assured
We lead in PCB manufacturing with advanced processes like high-precision drilling, fine-line fabrication (min. 50μm line width/spacing), and multi-layer lamination, meeting high-end routing density needs for stable signal transmission. A strict quality system ensures over 99.5% yield via flying probe and AOI tests. Our expert R&D team offers tailored solutions, from material selection to complex circuit design.
II. Diverse Products, Versatile Solutions
We provide FR-4, high-frequency, metal-core, and flexible boards, each with unique properties for various applications. Mass-produce 2 - 30 layer PCBs for efficient signal and power management. Customize board size, hole diameter, surface finish, and functions to fit specific scenarios.
III. Timely Delivery, Project Assurance
Optimized production and advanced management shorten cycles. We control delivery for double-sided PCBs within [X] days and arrange multi-layer PCBs flexibly. With large capacity and emergency response, we avoid delays. Real-time tracking keeps clients informed.
IV. Competitive Pricing, High Value
Cost-saving measures enable competitive pricing without compromising quality. Transparent quotes detail all costs. Our PCBs excel in price, quality, and delivery, enhancing clients' product competitiveness.
V. Thoughtful Service, High Satisfaction
Our sales team offers pre-sales expertise. Technical support spans design to production. We handle after-sales issues promptly
and conduct follow-ups for continuous improvement.
