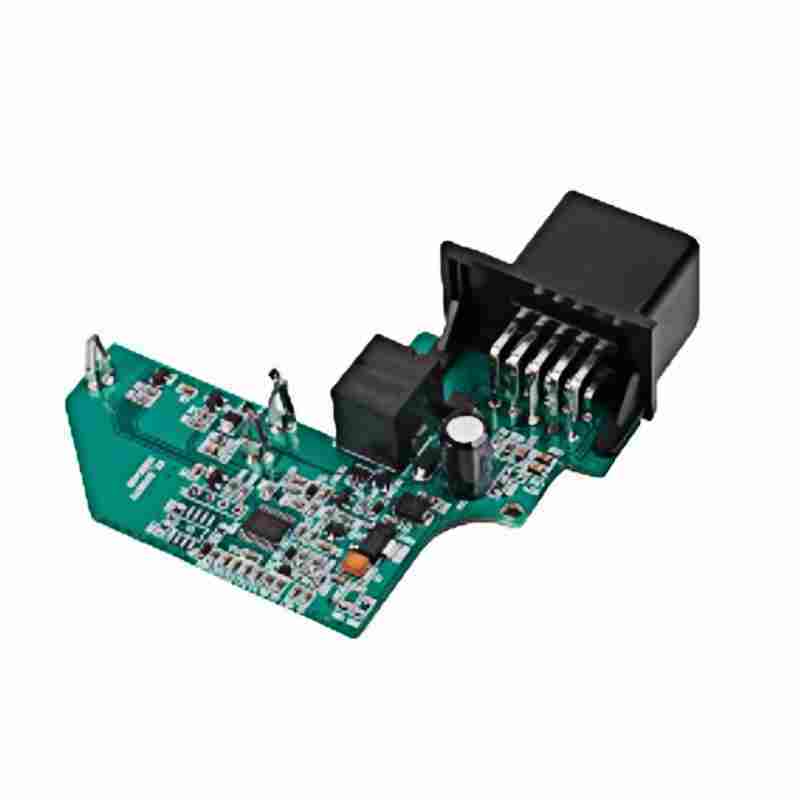

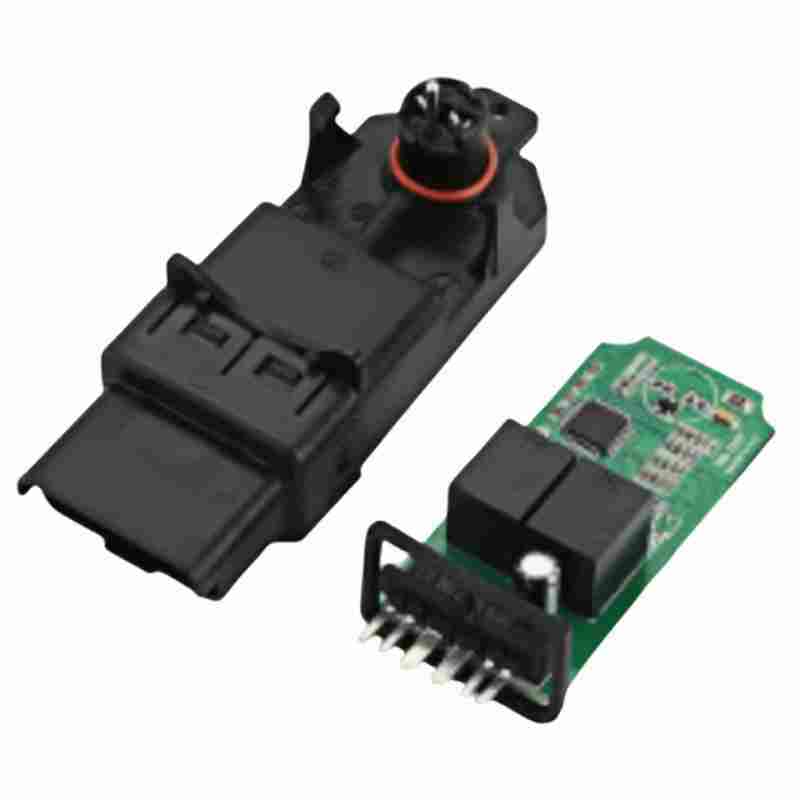

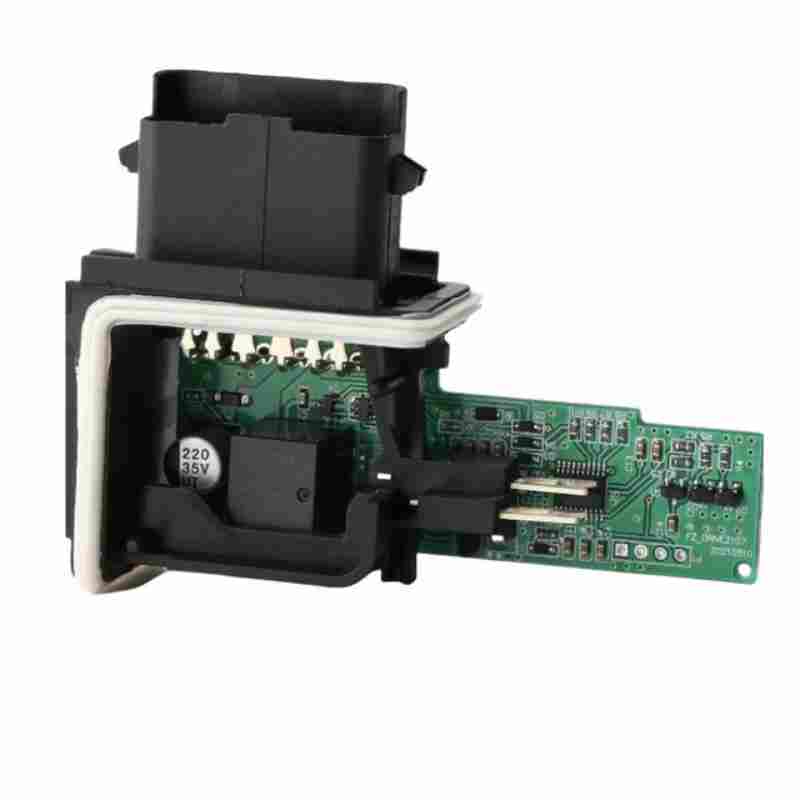

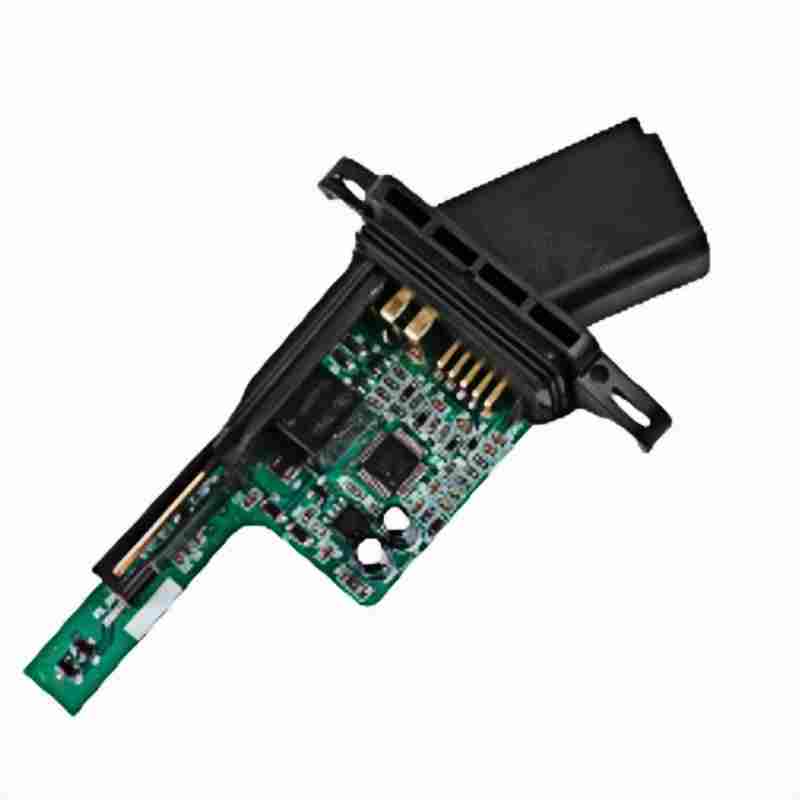

Anti-Pinch PCBA Production for Automotive | Safety System PCB Assembly

Technical Breakdown
1. Hardware Architecture

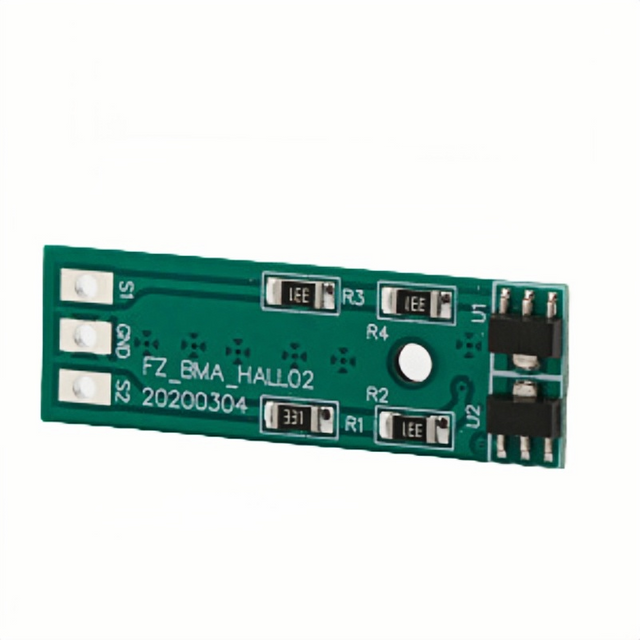

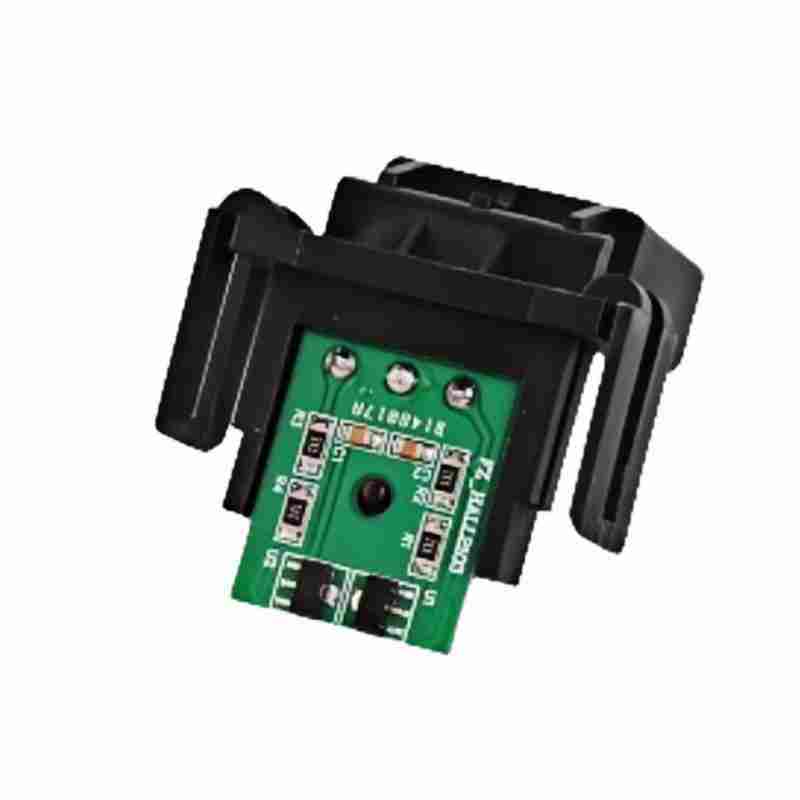

• Sensing Layer: 32-ch TMR magnetic array + redundant Hall sensors (±0.05mm error, AEC-Q100)
• MCU: NXP S32K344 Cortex-M7 lockstep core (99.2% DC, ISO 26262)
• Motor Control: GaN HEMT driver (<8ms reversal, SAE J1211)
• Communication: CAN FD + Ethernet backup (5Mbps, <0.1ms latency)

2. Safety Algorithms

• Multi-Level Detection: Current fluctuation (±0.5A), capacitive sensing (1mm resolution), YOLOv8 model (99.1% accuracy)
• Redundancy: Dual power isolation (UL 508), CRC memory (FIT<10)

3. PCB Process Standards

• Material: FR-4 Tg135+1oz (IPC-6012DA Class 3)
• Precision: 0.1mm/0.08mm trace (IATF 16949:2025)
• Coating: 25±2μm nano-conformal (MIL-I-46058C)

4. Environmental Validation

• Thermal: -40℃~150℃ (3000 cycles, IEC 60068-2-14)
• EMC: 200V/m immunity (ISO 11452-2)
• Mechanical: 50G shock (SAE J175, <1ppm solder failure)

Performance Comparison

Smart Safety System

• Cybersecurity: ISO 21434 compliance (AES-256, IDS)
• OTA: Delta firmware (<15KB/s, <10⁻⁶ failure)
• Diagnostics: Real-time 32-parameter monitoring (<50ms DTC)

Value-Added Services

• 48H Prototyping: EMC pre-test (radiation <30dBμV)
• Global Cert Pack: E-mark/CE/FCC/CCC + GSO desert cert
• Digital Twin: Ansys simulation (>98% coverage, -40% validation time)
