Analysis of the Precise One-Dimensional Personnel Positioning Technology Scheme for Mines and Tunnels

I. Scheme Overview

The personnel positioning system for mine roadways and tunnels relies on advanced UWB (Ultra-Wideband) positioning technology to achieve a positioning accuracy of up to 30 cm. Through means such as electronic fence management, this system enables real-time personnel positioning, strengthens the control over hazardous areas, and effectively prevents safety accidents. In emergency situations, it can swiftly respond to rescue efforts, building a solid defense line for personnel safety.

II. Detailed Description of the Positioning Scheme

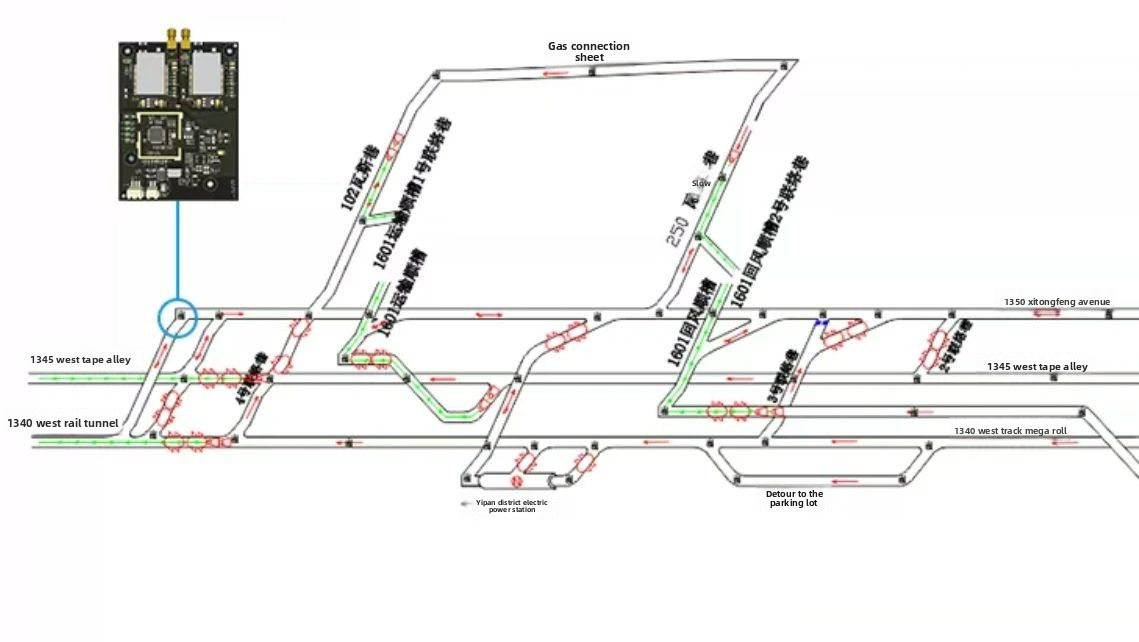

This scheme adopts high-precision UWB positioning equipment. A single base station board integrates two base station modules, and a single base station can accomplish one-dimensional positioning. This significantly reduces the number of base stations deployed, and the base stations can intercommunicate as soon as they are powered on. It offers a variety of interface options such as TTL/485/Rj45, allowing for easy integration with various back-end systems. It boasts notable advantages including simple deployment, system stability, and controllable costs.

III. Core Advantages of the Scheme

(A) Real-Time Positioning and Tracking

• Real-time tracking of personnel positions to dynamically grasp their movements.
• Support for querying the specific locations of personnel based on card numbers, names, etc.
•

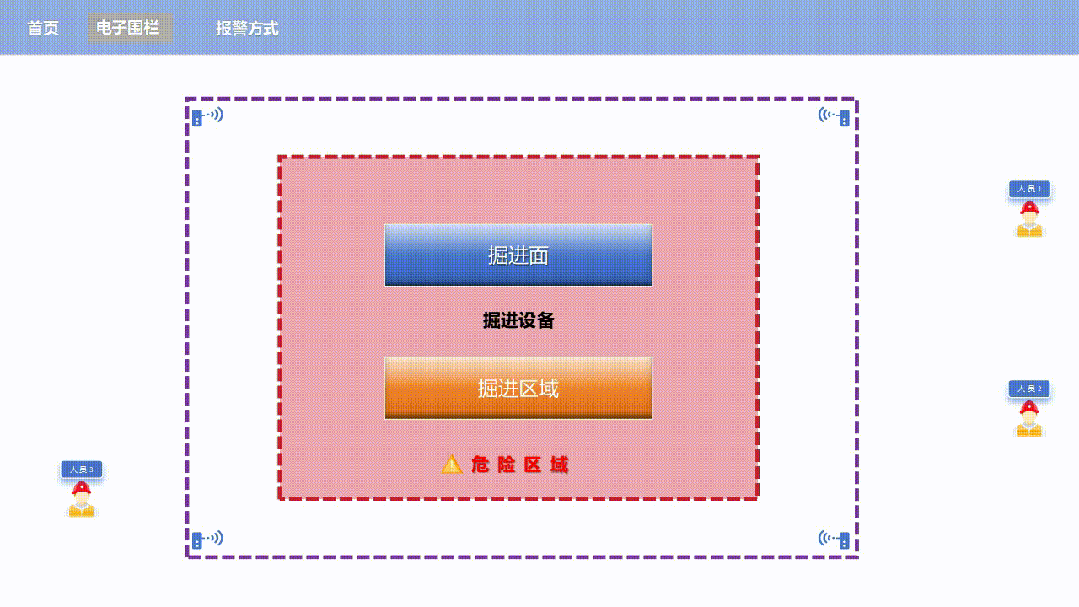

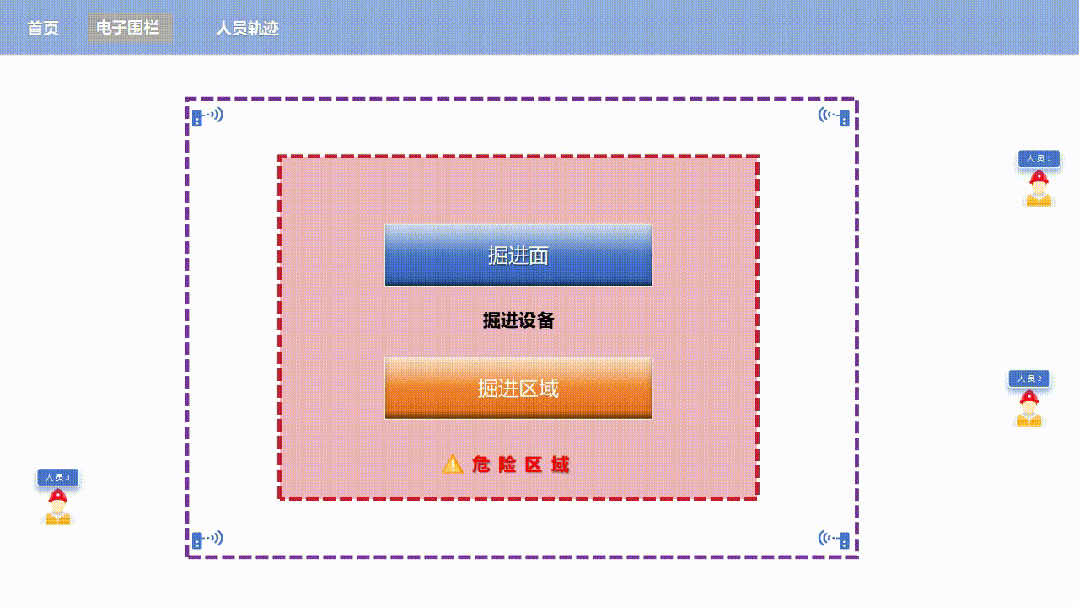

(B) Electronic Fence Protection

• Flexible setting of hazardous areas (such as excavation faces) and alarm rules.
• Alarm management for personnel approaching hazardous areas to ensure safe operations.
•

(C) SOS Alarm and Paging

• On-site personnel can send SOS alarms via buttons on positioning tags, with real-time notifications.
• The monitoring room/back end can initiate calls to specific individuals or all personnel.
•

(D) Historical Trajectory Management

• Long-term storage of personnel movement trajectories to provide decision-making support for incident handling.
• Support for playback of personnel activity trajectories within specified time periods based on card numbers and areas.
•

IV. About Us

FR4PCB.TECH is a professional high-tech enterprise in the wireless radio frequency field. It has a senior research and development team and focuses on the development, production, and sales of wireless radio frequency products. Addressing the diverse needs of different customers, it provides comprehensive solutions including radio frequency modules, UWB positioning, digital voice coding and decoding, and power sensors. It assists users in meeting wireless data transmission requirements in the era of the Internet of Things (IoT) and enhances their market competitiveness.
